Pro-Alpha
Radiography QA Phantom - Diagnomatic by Pro-Project - 02-101

Pro-Alpha from Diagnomatic by Pro-Project checks beam alignment, contrast, resolution and field geometry on conventional X-ray equipment.

Click a photo or illustration to enlarge it.

Models and Ordering

With the Pro-Alpha phantom, you can do the following tests

• collimation / beam alignment
• position and size of the effective radiation field
• dynamic range
• spatial resolution
• contrast resolution
• image quality (distortion in fluoroscopy)

Specifications

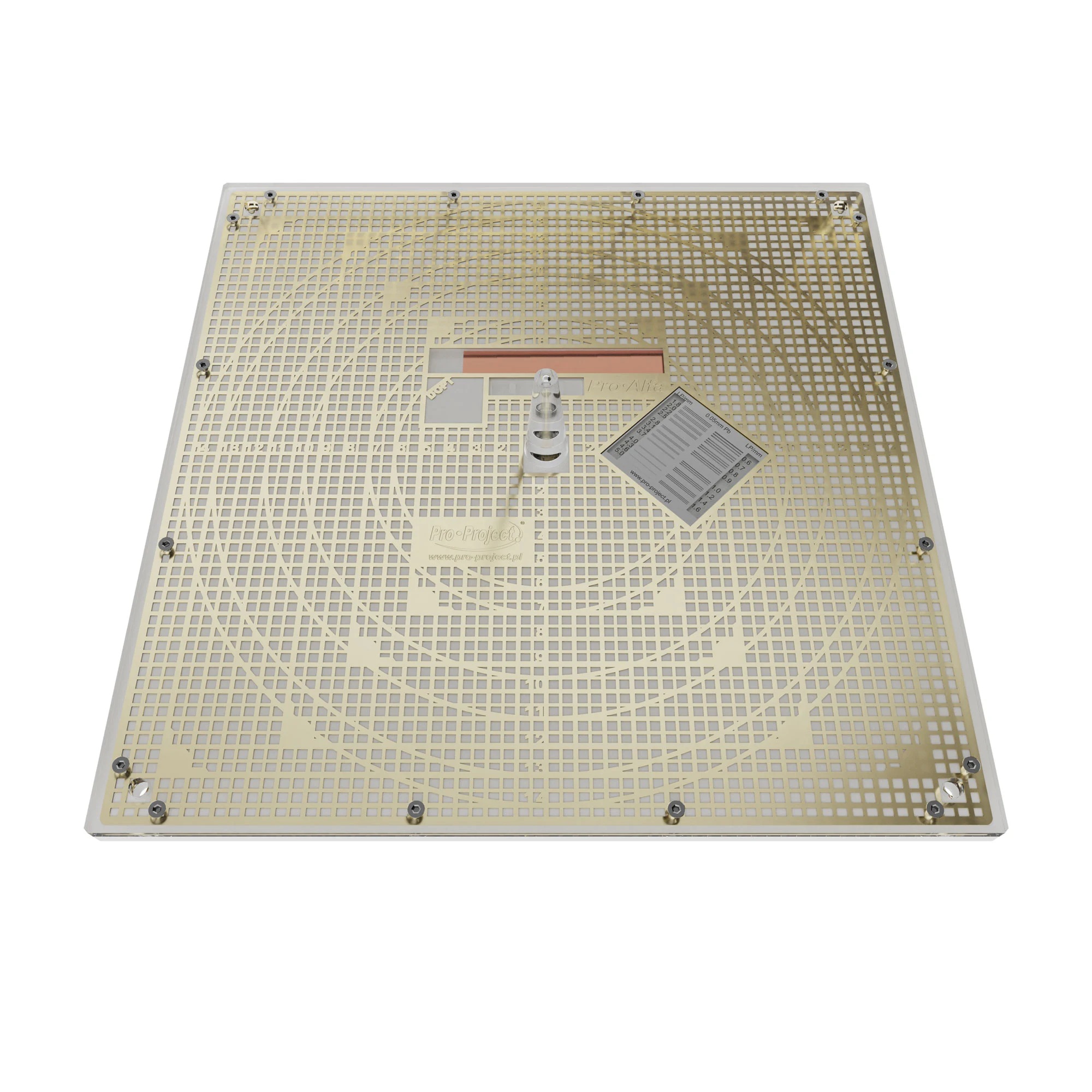

• dimensions: 300 x 300 x 10 mm
• brass mesh pattern (5 mm scale) embedded in PMMA
• 7-step copper wedge
• 4 low contrast elements
• markings to determine the size and position of the effective radiation field
• pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
• cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°

Features and Test References

• complies with:
  – IEC 61223-3-1
  – DIN 6868/3 and DIN 6868/4
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
