Pro-RF BASIC kit
Radiography and Fluoroscopy QA Kit - Diagnomatic by Pro-Project - 02-011

Pro-RF BASIC kit from Diagnomatic by Pro-Project combines R/F phantoms and accessories with software for routine quality assurance.

Click a photo or illustration to enlarge it.

Models and Ordering

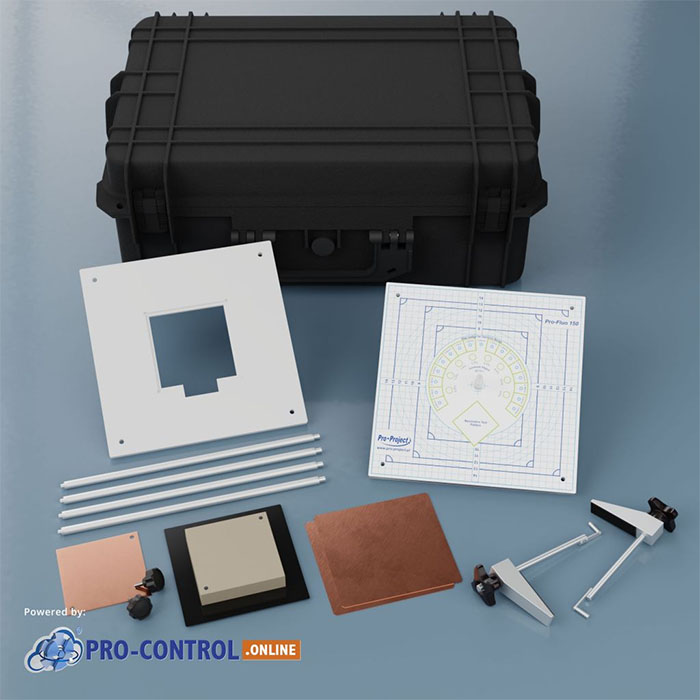

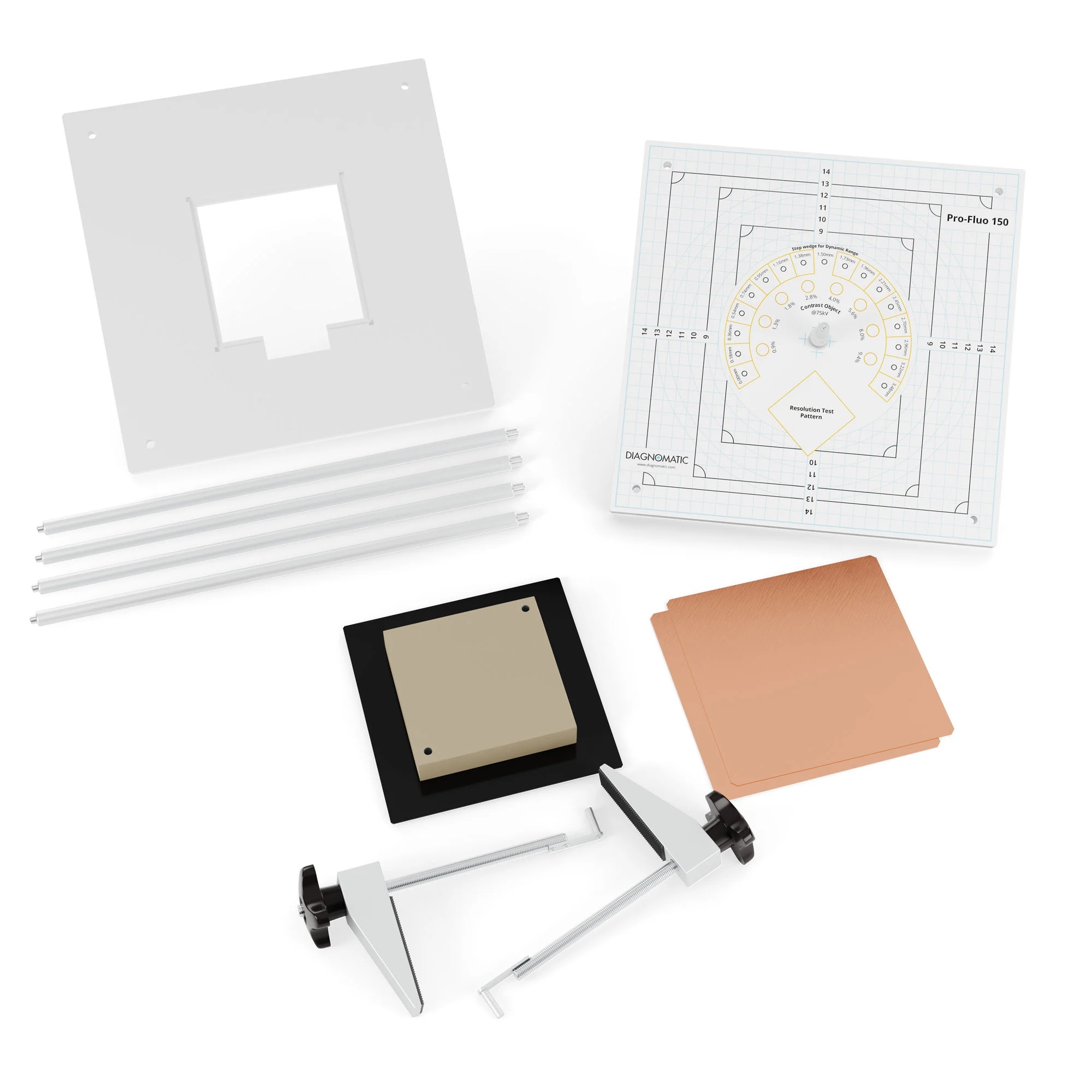

Included Components

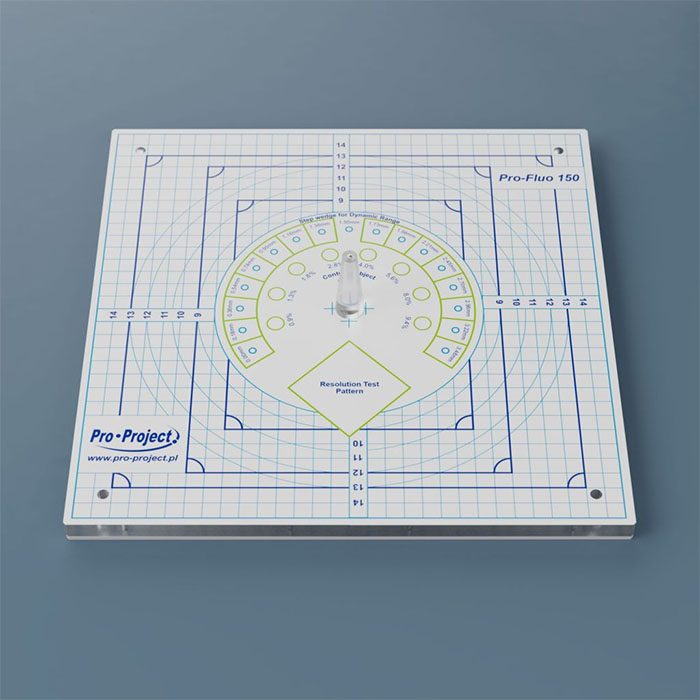

• Pro-Fluo 150

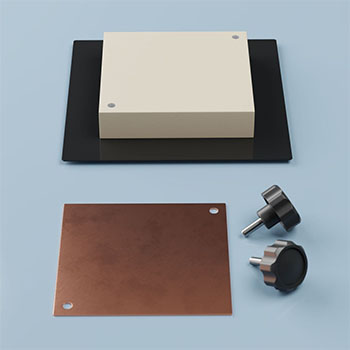

• Pro-RF Al 25

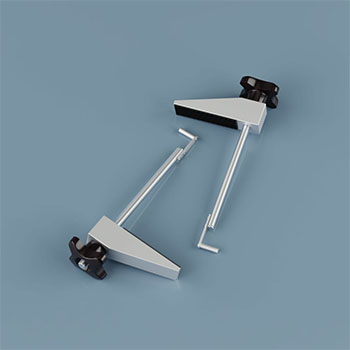

• Pro-RF Rack

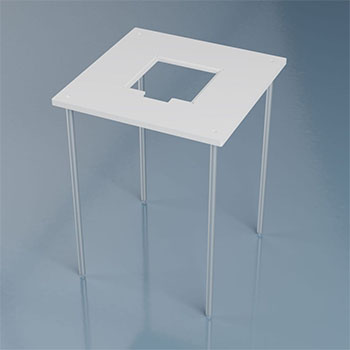

• Pro-RF Stand

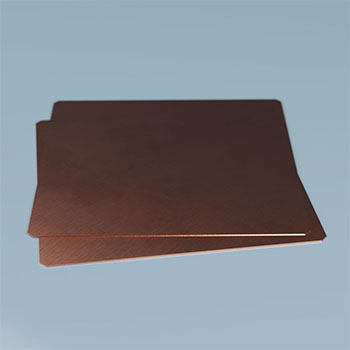

• Pro-RF AEC Cu
• Diagnomatic BASIC annual subscription
• carrying case with dedicated foam inlay

The kit can be used to measure

• collimation/beam alignment
• position and size of the effective radiation field
• dynamic range
• spatial resolution
• contrast resolution
• homogeneity
• beam quality
• image distortion
• AEC tests
• dose reproducibility

Features and Test References

• complies with:
  - IEC 61223-3-1
  - DIN 6868-150
• CE marked
• Includes a manual covering the tests, result evaluation and recording.


Learn about Diagnomatic quality assurance software and its image analysis workflow.
