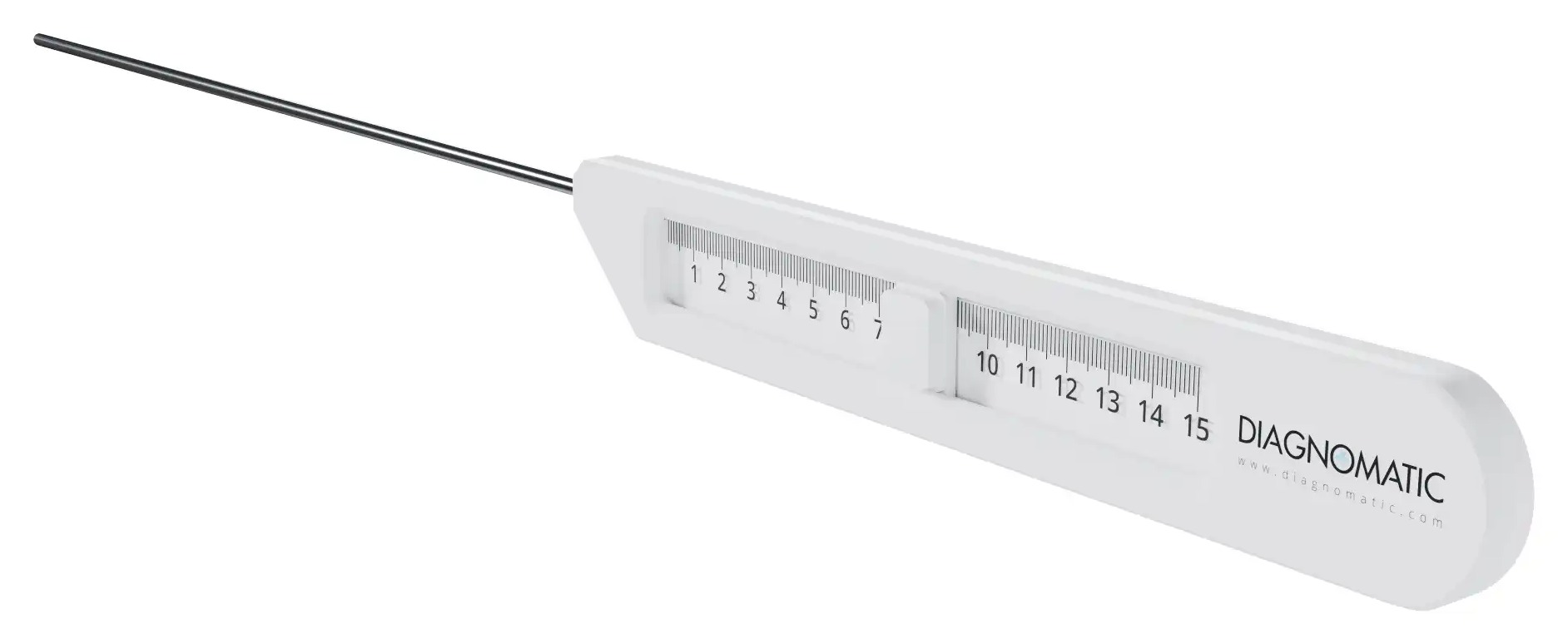

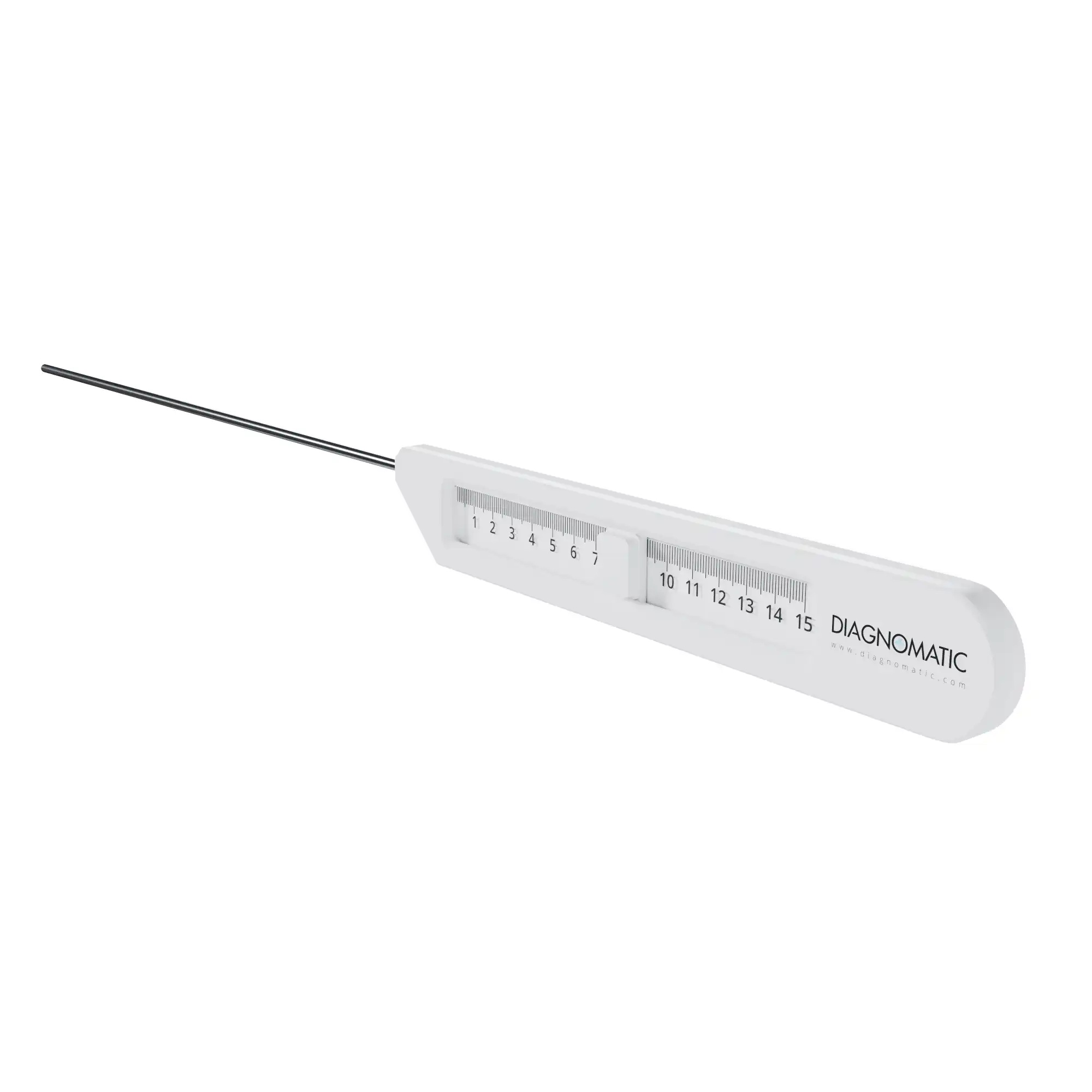

Pro-BRT AccuNeedle
HDR Brachytherapy Needle Measurement - Diagnomatic by Pro-Project

Pro-BRT AccuNeedle from Diagnomatic by Pro-Project measures needle protrusion for HDR prostate brachytherapy workflows.

Click a photo or illustration to enlarge it.

Product details

• Intended for measurement of needle protrusion during HDR prostate brachytherapy (afterloading).
• Addresses measurement errors caused by ergonomics, limited lighting, or closely spaced needles.
• A sliding plunger indicates protrusion length, so no reading is taken by leaning over a ruler.
• The final reading can be taken after removing the device from the needle without losing the setting.
• Made from disinfectant-resistant materials; there is no patient contact, so no sterilization is required.

Specifications

• Device type: manual measurement tool for HDR brachytherapy needles
• Measurement range: according to the engraved millimeter scale
• Accuracy: ±1 mm
• Construction:
  • thin guide tube
  • sliding plunger with a measurement marker
  • reading window in the upper housing
  • measuring scale in the housing
• Materials: chemically resistant, easy to disinfect
• Intended use: HDR prostate brachytherapy systems (afterloading Ir-192)
• Data handling: measured values can be transferred to treatment-planning systems

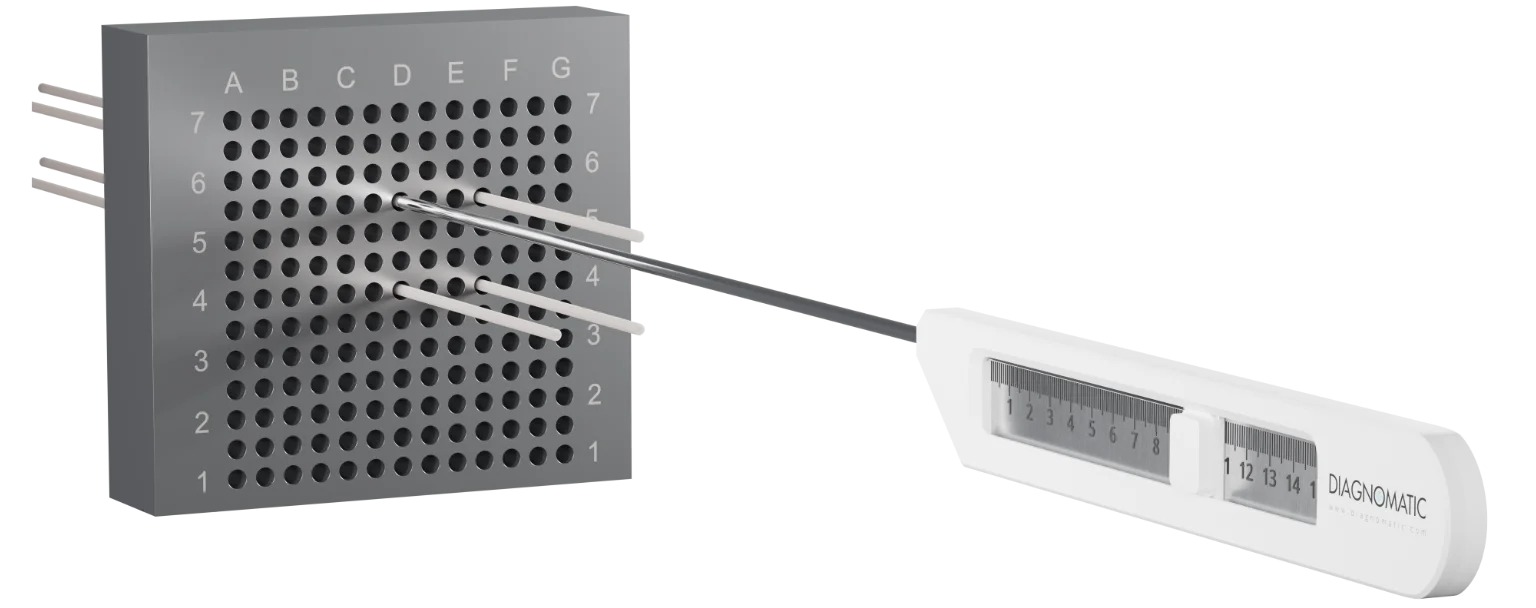

Needle Length Measurement

Purpose: To measure the protruding length of the needle/catheter during prostate brachytherapy.

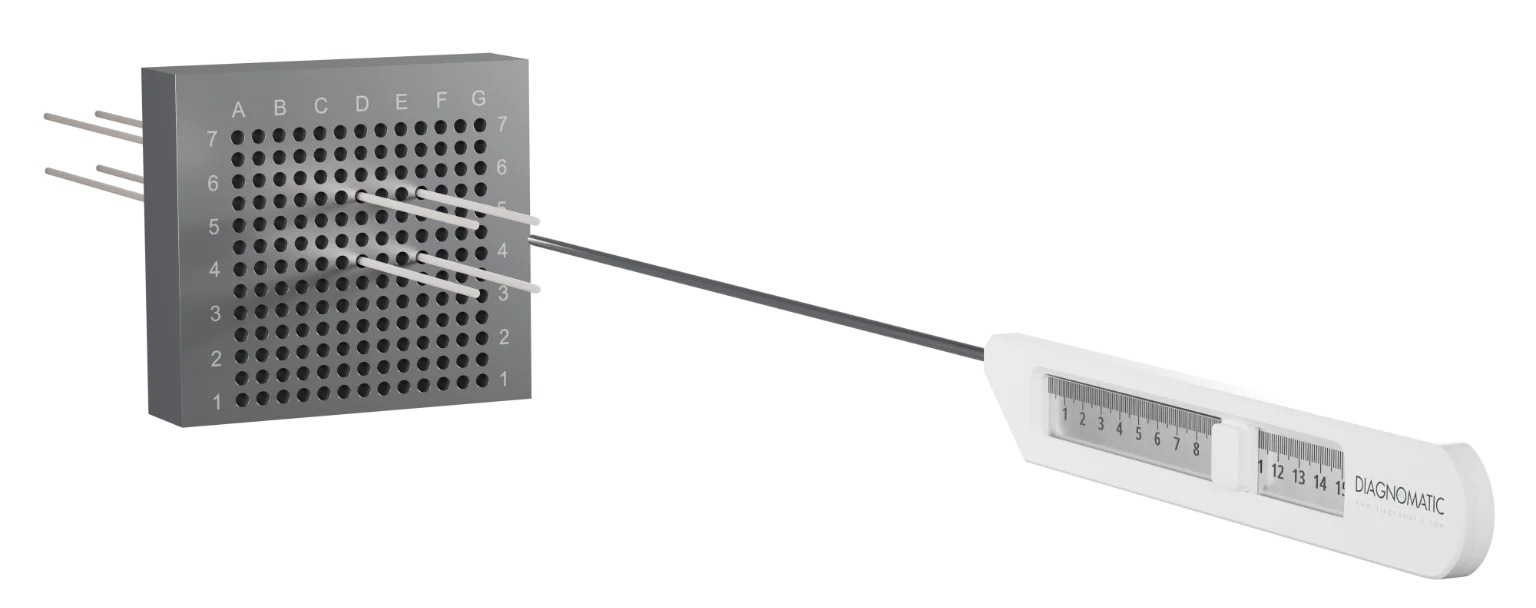

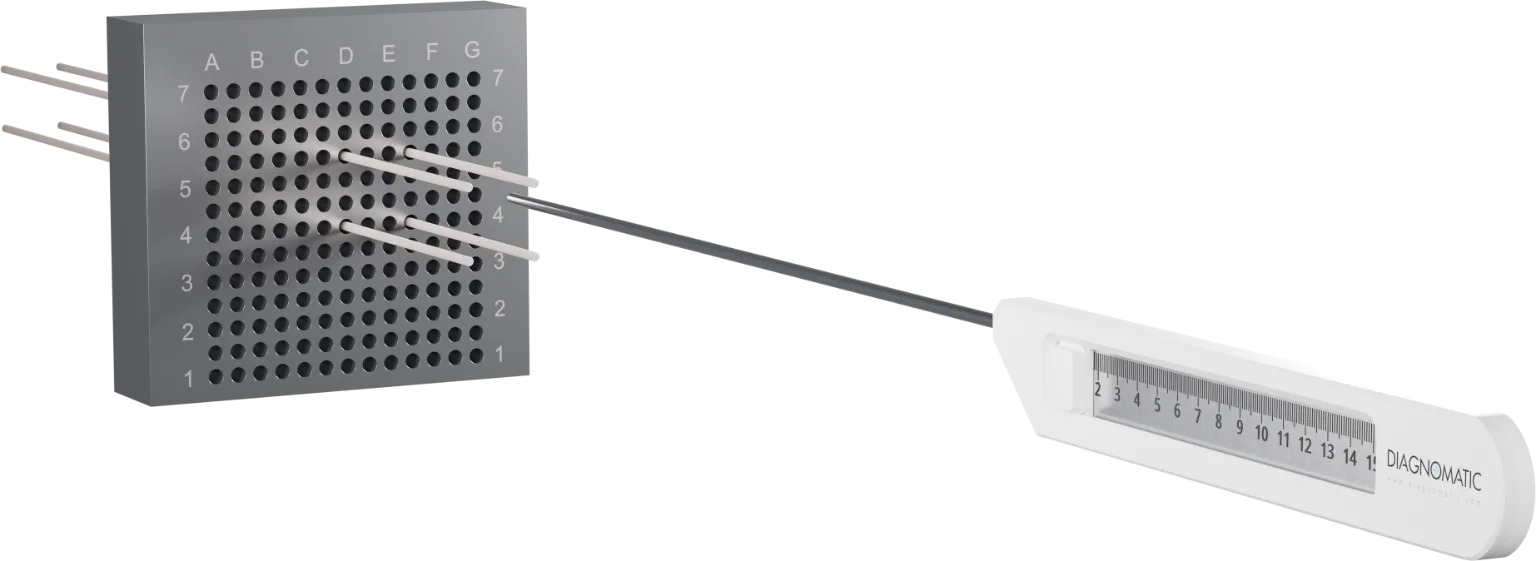

Position the measuring device

Slide the tip of the measuring device onto the needle and advance it until it rests flush against the surface of the template.

Remove the measuring device

Carefully remove the measuring device from the needle while maintaining its position setting.

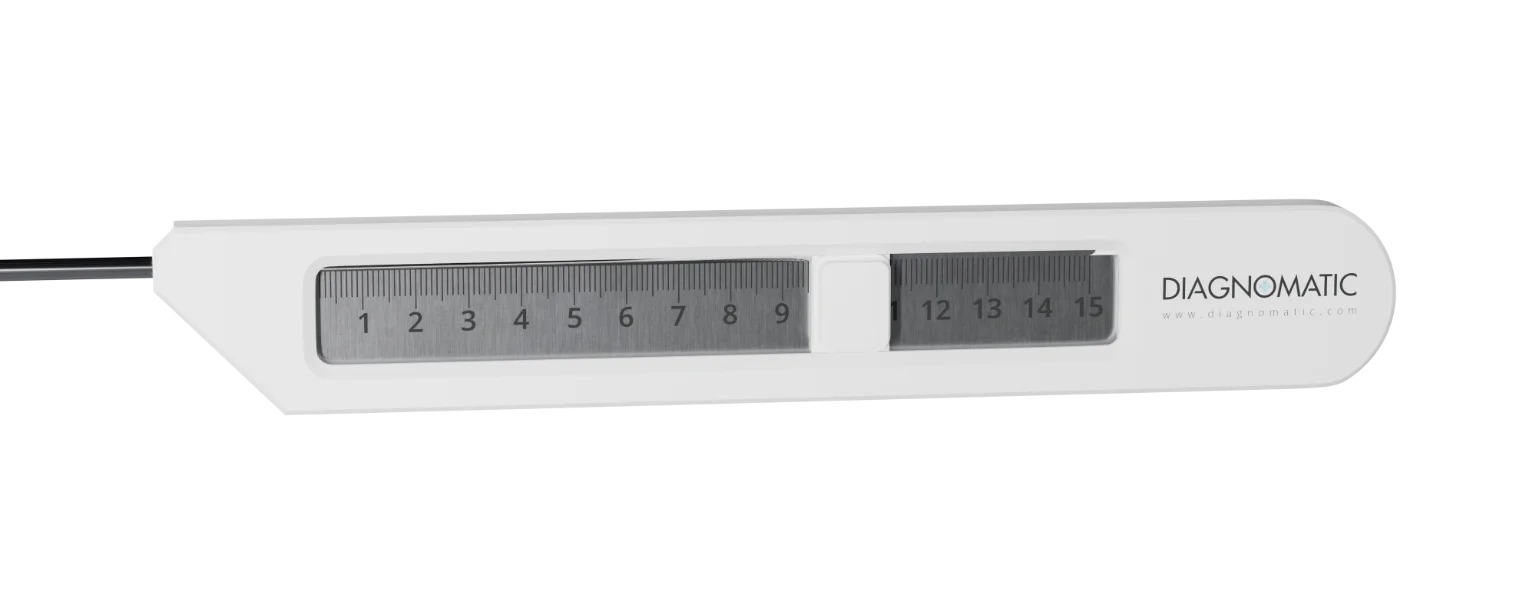

Read the measurement

Read the protruding needle length directly from the scale window on the device.

Features and Test References

• CE marked
• Resistant to disinfectants; no sterilization required
• Handheld design for use at the treatment table
• Certified millimetre scale
• The reading is taken from the scale window rather than by aligning a ruler at the template
• Includes a manual covering the tests, result evaluation and recording.
