Patient Head Paddles
Skull, Sinus and Head X-Ray Positioning - Z&Z Medical
Z&Z Medical Patient Head Paddles help imaging professionals support and stabilize a patient's head during skull, sinus and other head X-rays. Soft foam contact surfaces provide cushioning against the sides of the head, while rigid plastic backing and oversized handles give the assisting technologist or caregiver controlled support.

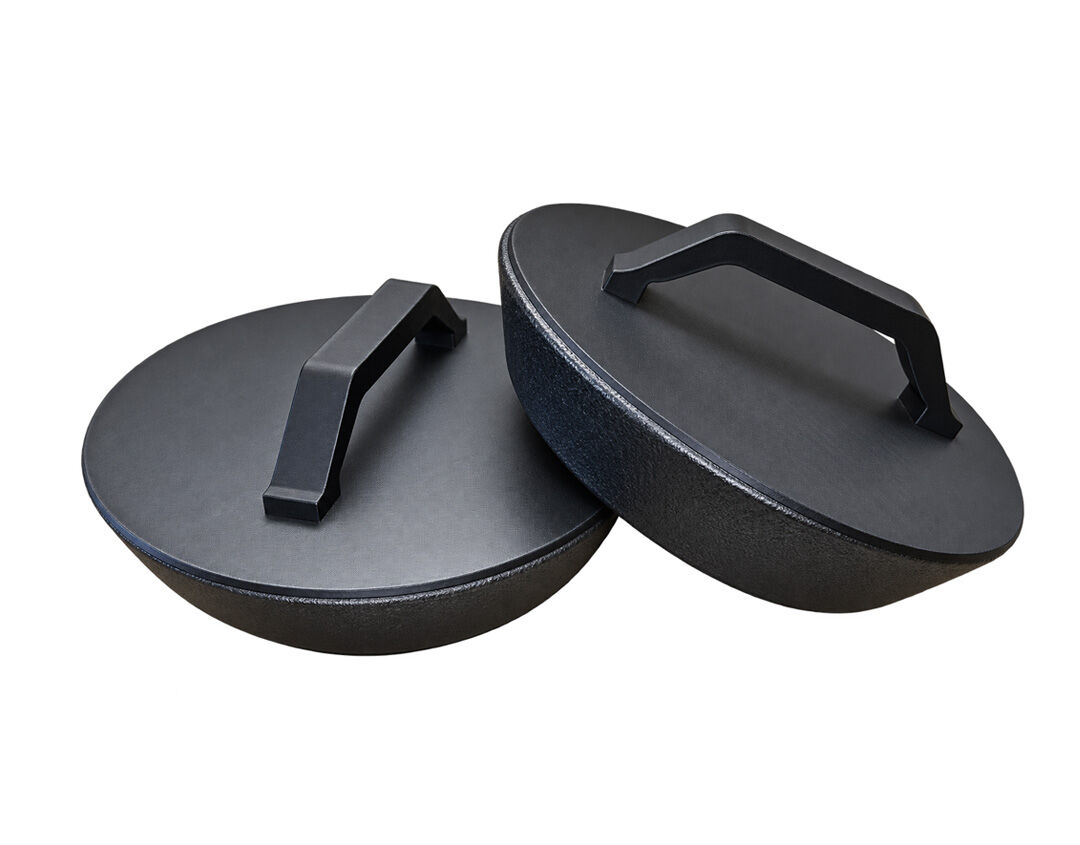

HP-NCAK - Coated foam head paddles
Click any photo to enlarge it.
Features
- Soft foam contact surfaces provide cushioned head positioning support.
- Rigid backing and oversized handles help the assistant maintain the desired position while keeping hands away from the anatomy being imaged.
- Useful when infants, pediatric patients, elderly patients or others need help maintaining their head position.
- Three foam options accommodate different facility preferences and cleaning needs.
Foam Options and Product Numbers
| Product number | Foam surface | Size |
|---|---|---|
| HP-NFAK | Non-coated foam Soft, open-cell foam for cushioned positioning support. | 6 1/4" top diameter 7 3/4" bottom diameter 1.5" thick |
| HP-NCAK | Coated foam Soft foam with a protective coating for improved durability and easier cleaning. | 6 1/4" top diameter 7 3/4" bottom diameter 1.5" thick |
| HP-CCAK | Closed-cell foam Durable, non-porous foam suited to frequent cleaning. | 7" diameter |

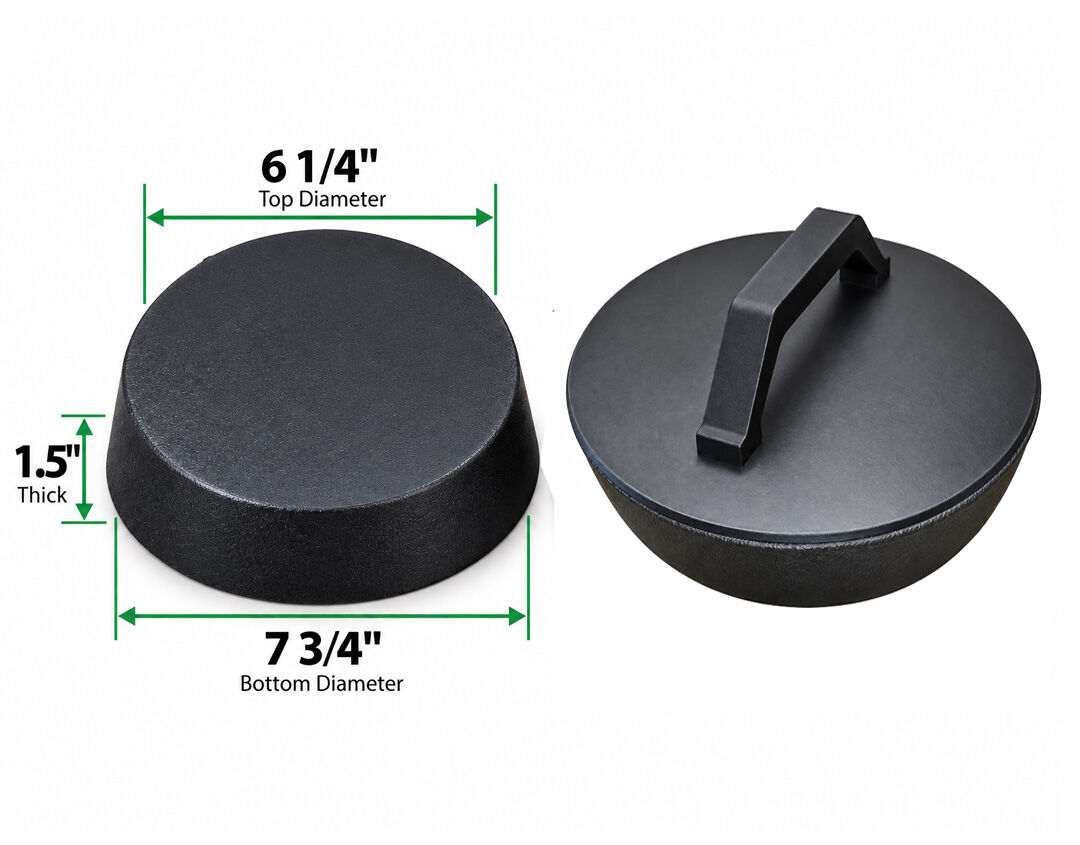

HP-NCAK - Coated foam dimensions

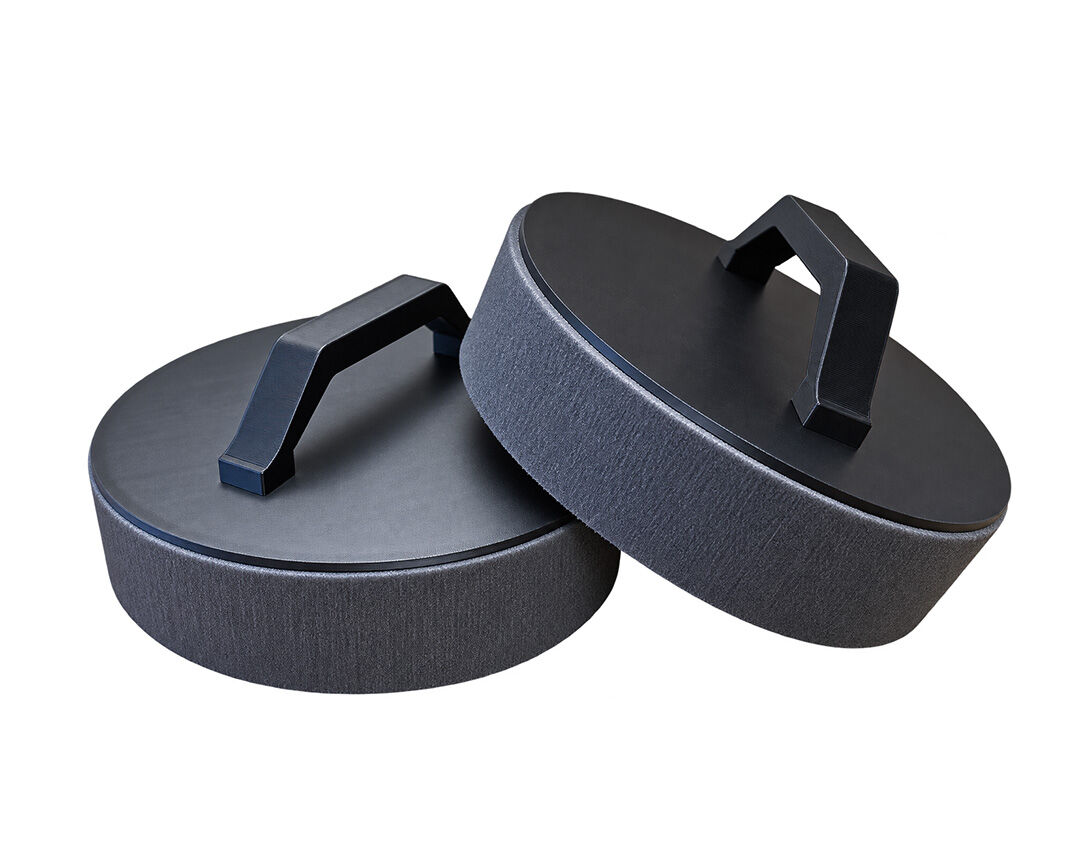

HP-CCAK - Closed-cell foam
Positioning and Cleaning
The coated foam HP-NCAK and closed-cell foam HP-CCAK versions can be cleaned between patients with appropriate disinfectant wipes or sprays. These surfaces provide options for departments where regular cleaning is a priority.

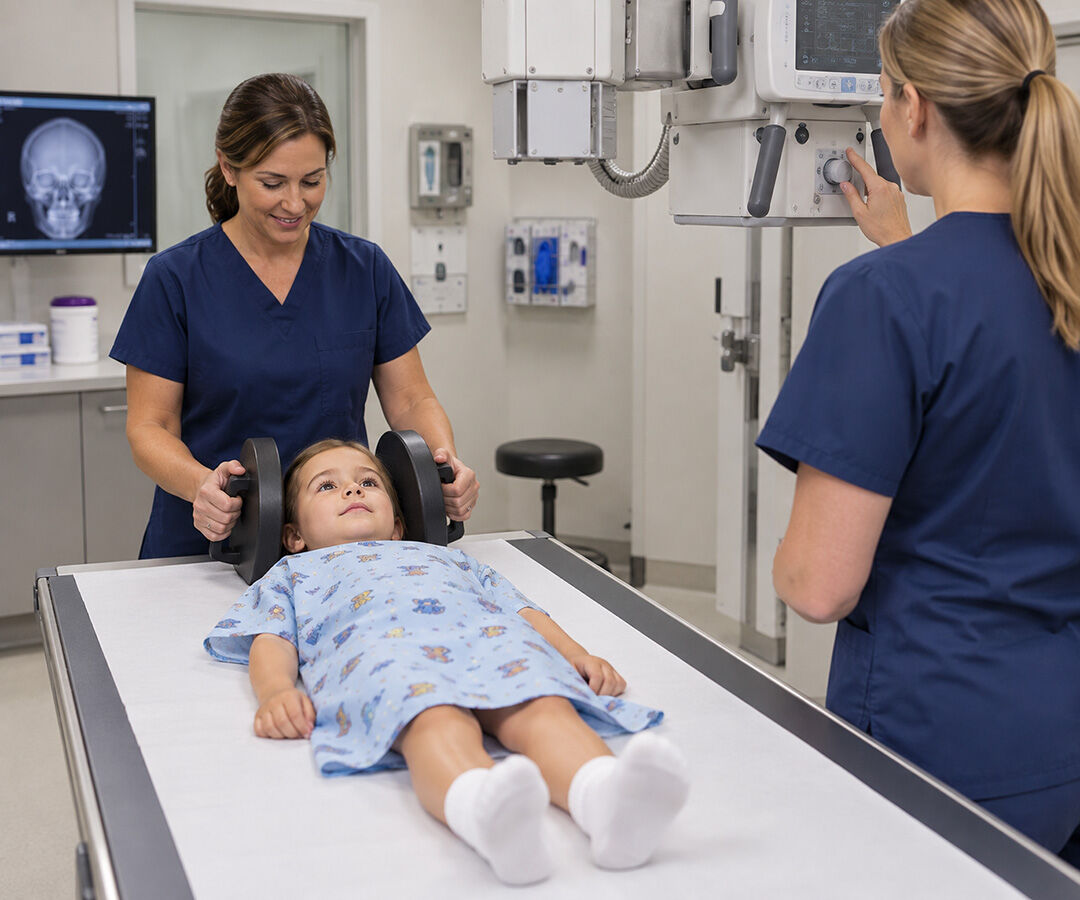

Pediatric positioning exampleClosed-cell paddles supporting the sides of the head.

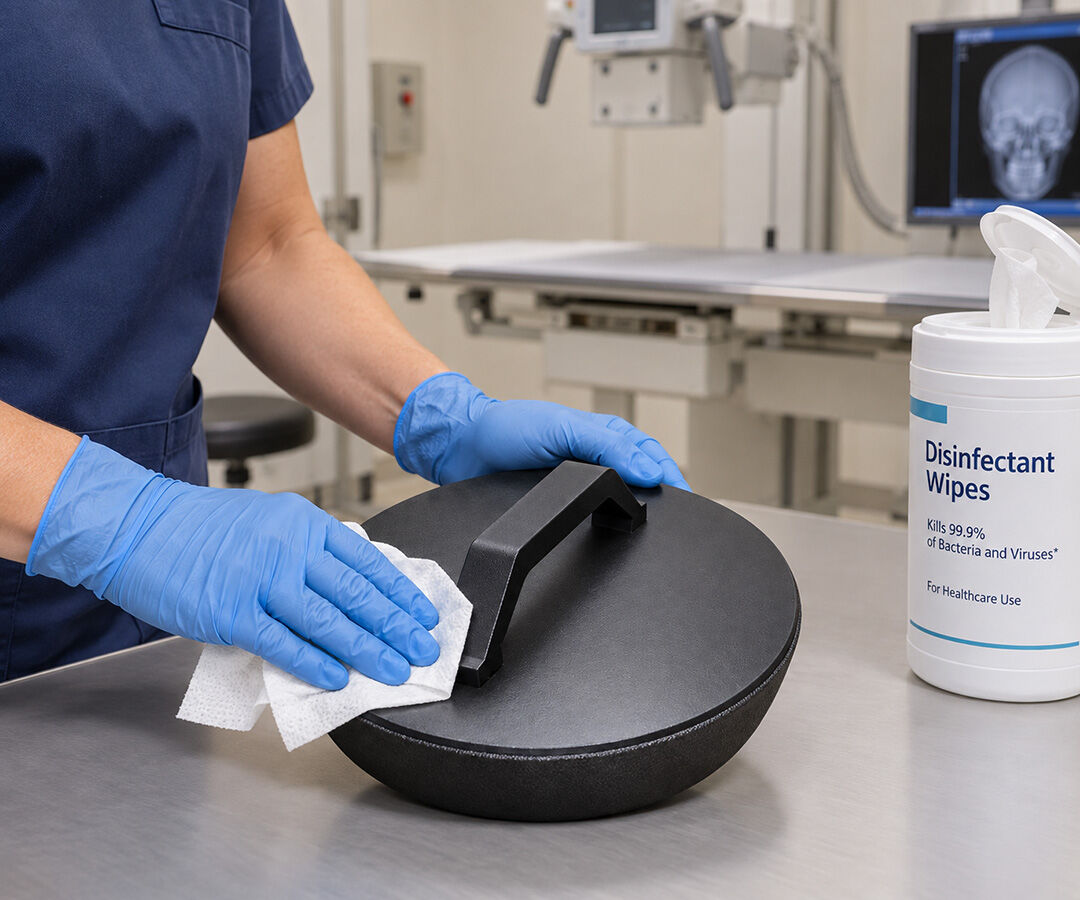

Coated foam paddle cleaning exampleUse appropriate disinfectant wipes or sprays.
Department Applications
Patient Head Paddles are suited to hospital radiology departments, outpatient imaging centers, pediatric imaging, urgent care and orthopedic facilities performing skull, sinus and head X-rays.
For ordering information, request a quote from Supertech or call (800) 654-1054. Please specify HP-NFAK, HP-NCAK or HP-CCAK.
