Octostop® Universal Octopaque® - Pediatric and Infant Positioner
The unique pediatric immobilization solution that takes into consideration the best possible comfort of the young patients undergoing x-rays, arteriography or magnetic / nuclear resonance imaging.

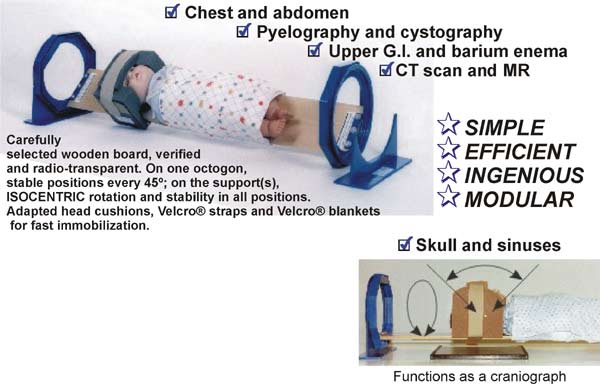

Carefully selected wooden board, verified and radio-transparent. On one octogon, stable positions every 45°, on the support(s), ISOCENTRIC rotation and stability in all positions. Adapted head cushions, Velcro® straps and Velcro® blankets for fast immobilization.
For hygiene purposes, OCTOSTOP recommends the use of disposable nurses caps to cover the patient’s head after each patient.
Components Included:- Board
- Length: 101.4 cm
- Width: 16 cm
- Height: 0.6 cm
- Plates (2)
- Octogones (2)
- Length: 26.2 cm
- Width: 9 cm
- Height: 28.3 cm
- Aluminum screws (6)
- Aluminum washers (6)
- Aluminum bolts (6)
- Blanket (large)
- Length: 67 cm
- Width: 29 cm
- Blanket (small)
- Length: 59 cm
- Width: 22 cm
- Velcro (2)
- (A) Length: 84 cm
- (A) Width: 5 cm
- (B) Length: 63 cm
- (B) Width : 5 cm
- Disposable nurses' caps ( 10)
- Chest and abdomen
- Pyelography and cystography
- Upper G.I. and barium enema
- CT scan and MR
- Skull and sinuses : functions as a "craniograph".
PA-03 OCTOPAQUE (without accessories)
- Board, 2 octogons and 2 supports; accessories optional.
- Length : 100 cm – Width 16 cm – Height : 0.6 cm
- Total weight : 4.6 kg
PA-05 OCTOPAQUE (complete kit)
- Length : 101.4 cm – Width : 16 cm – Height : 0.6 cm
- Total weight : approximately 5.2 kg
- Set of cushions two "U", large and small; one "L".
- Blankets: large and small.
- Straps: head and arms.
PA-06 OCTOPAQUE (kit with vertical support)
- Length : 101.4 cm – Width : 16 cm – Height : 0.6 cm
- Total weitght : approximately 6 kg
- Set of cushions two "U", large and small; one "L".
- Blankets: large and small.
- Straps: head and arms.
PA-07 OCTOPAQUE (wide board)
- Length : 101.4 cm – Width : 20.3 cm – Height : 0.6 cm
- Total weight : approximately 5.5 kg
- Set of cushions two "U", large and small; one "L".
- Blankets: large and small.
- Straps: head and arms.
PA-08 OCTOPAQUE – 60 cm board (complete kit)
- Length : 60 cm – Width : 16 cm – Height : 0.6 cm
- Total weight : approximately 5.2 kg
- Set of cushions two "U", large and small; one "L".
- Blankets: large and small.
- Straps: head and arms.
PA-09 OCTOPAQUE – 75 cm board (complete kit)
- Length : 75 cm – Width : 16 cm – Height : 0.6 cm
- Total weight : approximately 5,2 kg
- Set of cushions two "U", large and small; one "L".
- Blankets: large and small.
- Straps: head and arms.
Accessories
| Cushions | |
 "U"-shape for the head |
CO-01 LARGE 6 to 60 months CO-02 SMALL 0 to 6 months |
 "L"-shape for the head and arms |
CO-03 |
| Vertical Support | |||
|
OC-02 VERTICAL SUPPORT Fastens to the table with hooks and adjustable belts. A steel wire holds the octagon while allowing rotation. |
||
| Restraints | |
 Velcro® blankets |
ST-07 LARGE 67 x 29 cm ST-08 SMALL 59 x 22 cm |
 Velcro® Straps |
ST-09 FOREHEAD and ARMS |
| Other Components | |
|
OC-01 MR OCTAGONS supports and hardware |
 |
ST-10 TWO VELCRO® STRIPES: 90 x 5 cm self-adhesive for back of boards |
|
BO-01 MINIPAQUE® board: 50 x 14.3 cm |
|
BO-02 Regular board: 100 x 16 x 1.3 cm |
|
BO-03 Large board: 100 x 23 x 1.3 cm |
WARNING
Must be used only by qualified personnel, according to appropriate procedures, and under the responsibility of a physician.
OCTOSTOP® Inc. and its personnel do not assume any liability regarding the use, indications, consequences, or any situation directly or indirectly related to its products.
