General Positioning
Positioning Aids

Manufacturer is making changes. Please allow us to check availability.

Foam and finish selection: Uncovered open-cell foam provides flexible cushioning. ScanCoat (-SCB) adds a cleanable coating; Ultrafoam (-UF) provides firmer closed-cell support. Clear (-8) and heavy-duty (-20) vinyl covers are offered only where listed. Covered edges or seams may show with low-kVp techniques. Ultrafoam pieces taller than 3 inches may have a glue seam that attenuates in the image. Dimensions are H x W x L unless otherwise noted.

Torso and Body Positioners
Angular Bolster,7.25 X 12.50 X 15.00 #109 Angular Bolster, 7.25 X 12.50 X 15.00 #109

Specifically designed for mammograph procedures.

Part Number# 109
Modalities: General Positioning (GP), CT Scan (CT), MRI (MR), Nuclear Medicine (NM), Ultrasound (US)
Angular Bolster - Angular Bolster - Part 107Angular Bolster - 107

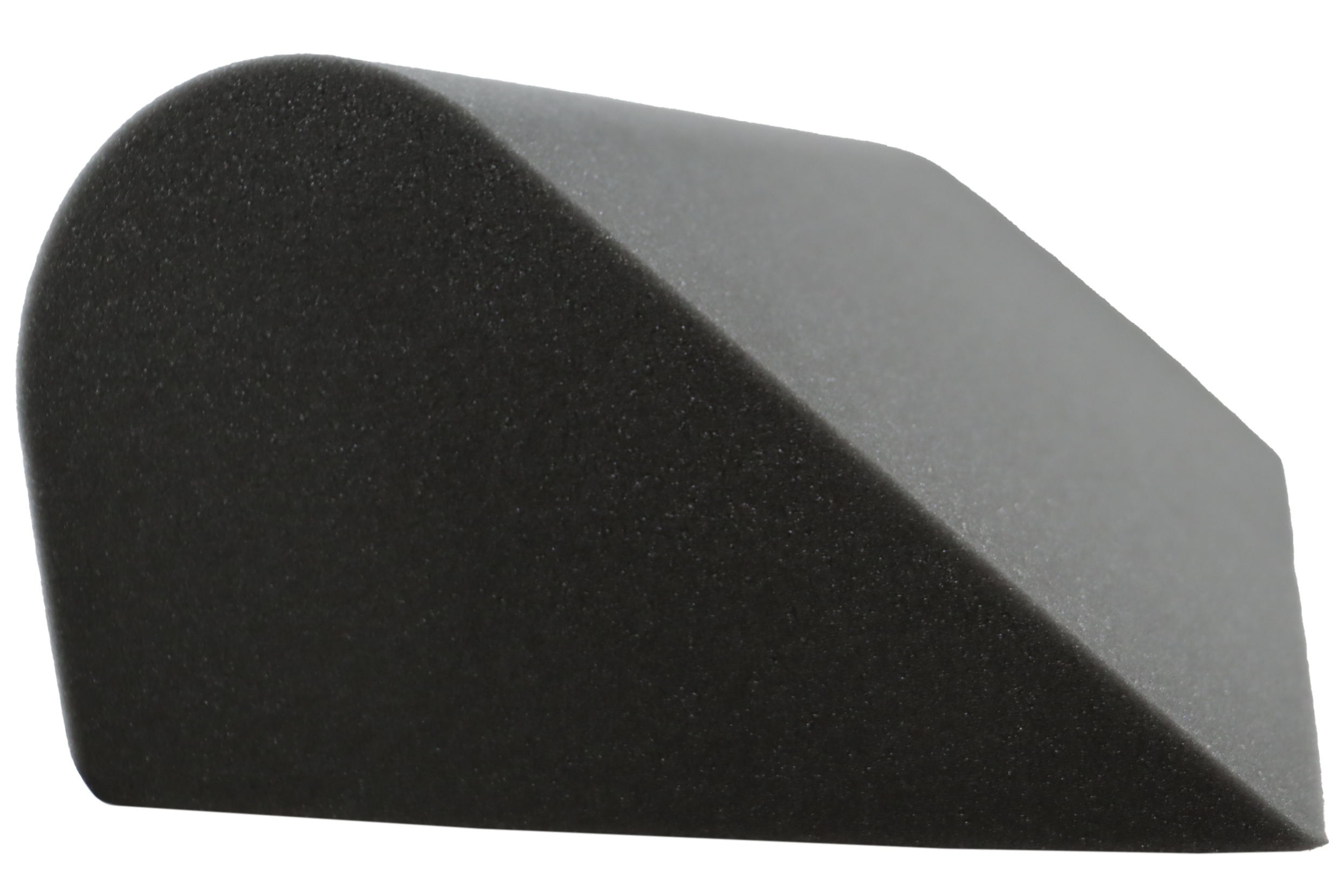

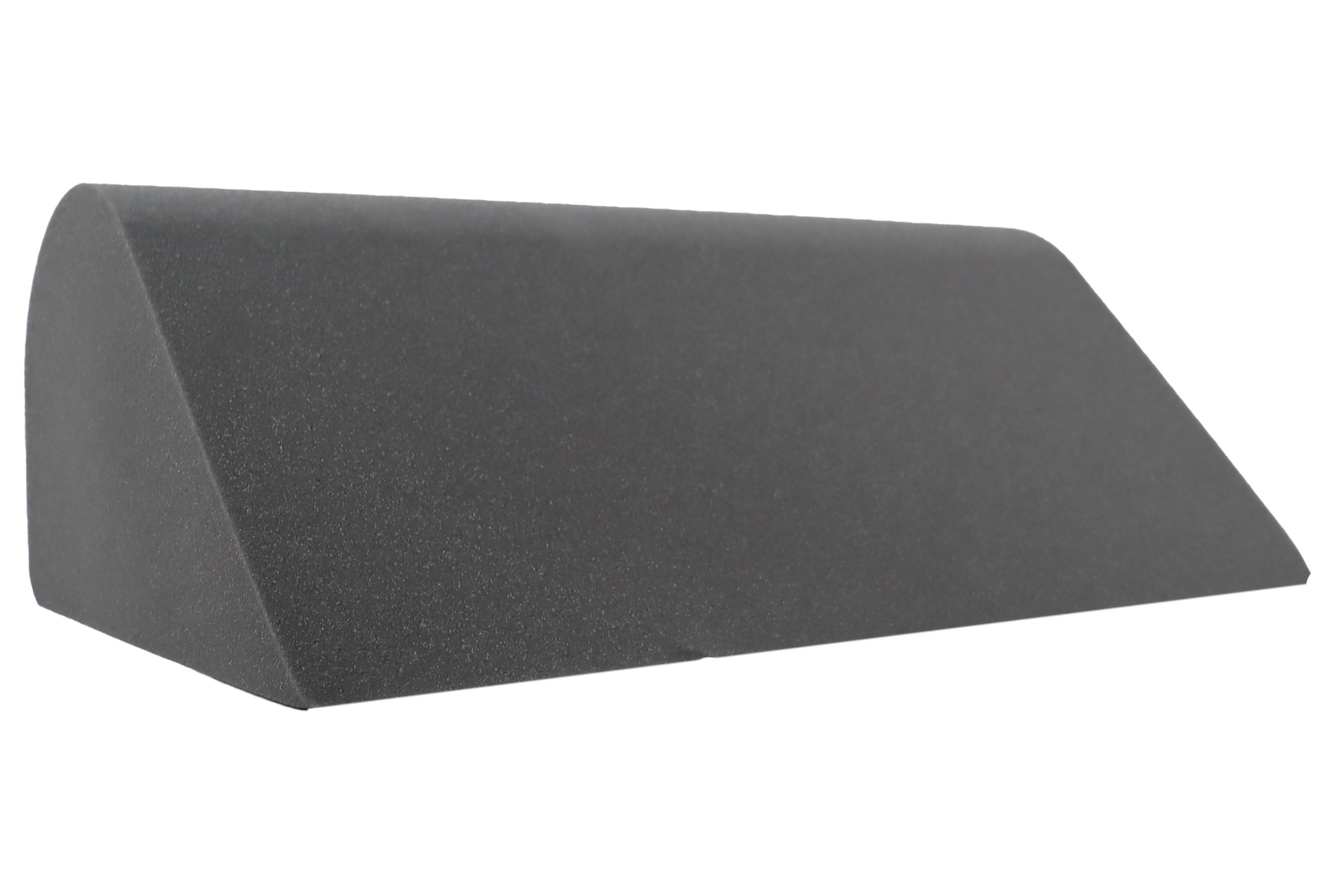

Angular Bolster

A large angled support for torso positioning and aortogram procedures. Dimensions: 7.25 x 12.5 x 21 inches.

Part numberModel / finish
107Large, Open cell foam
107-SCBLarge, ScanCoat
107-UFLarge, Closed cell foam
BolstersBolsters - 115Bolsters - 124

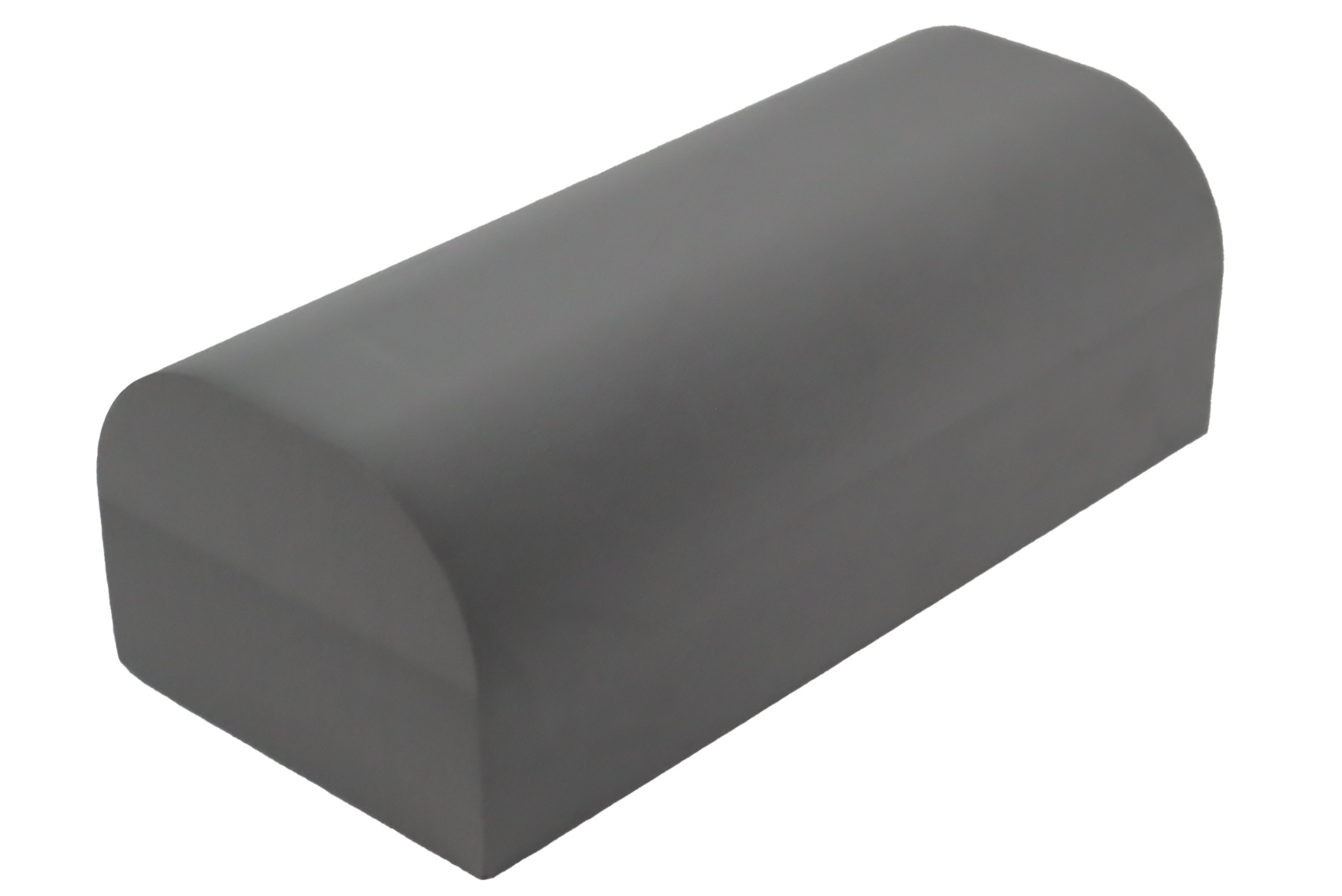

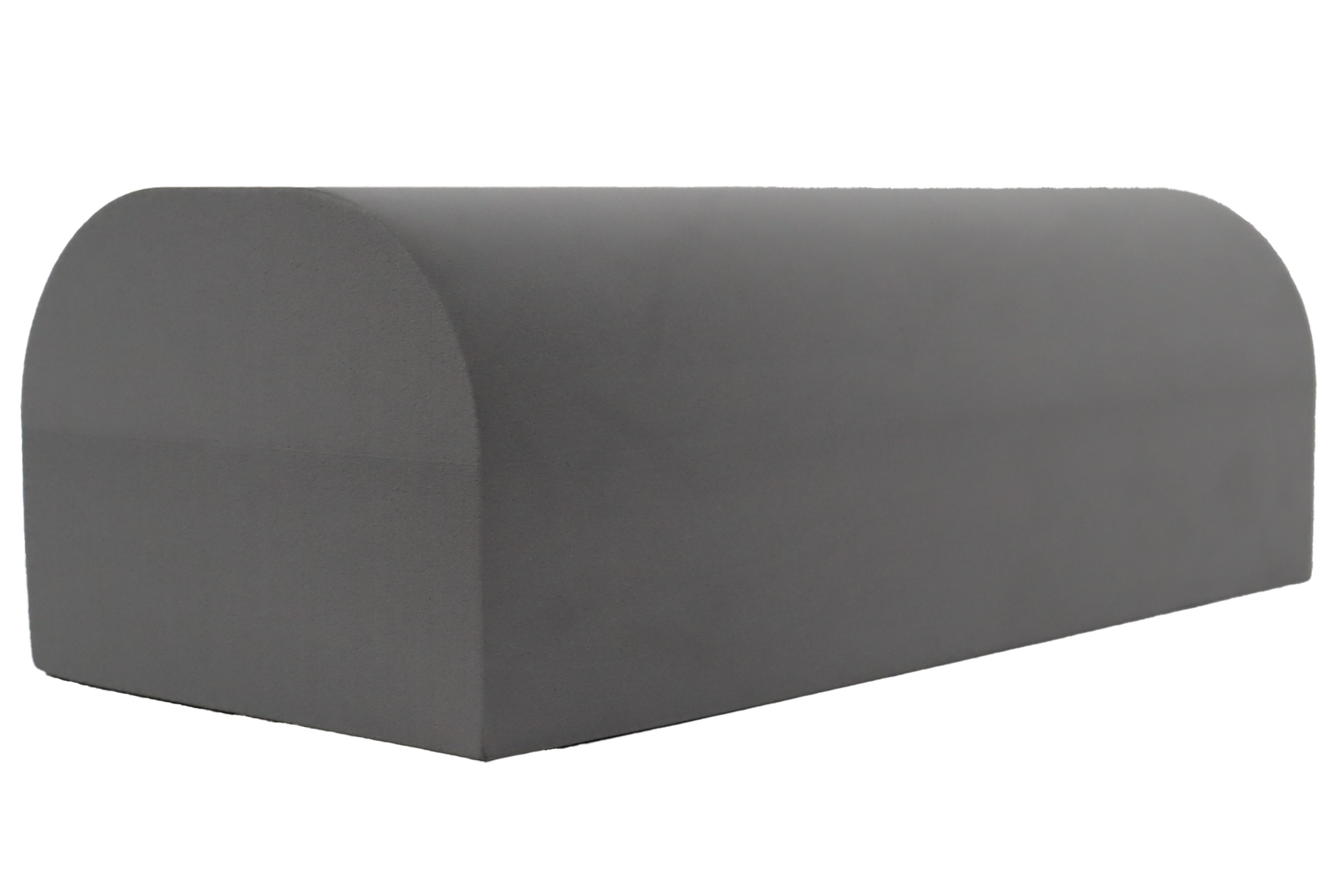

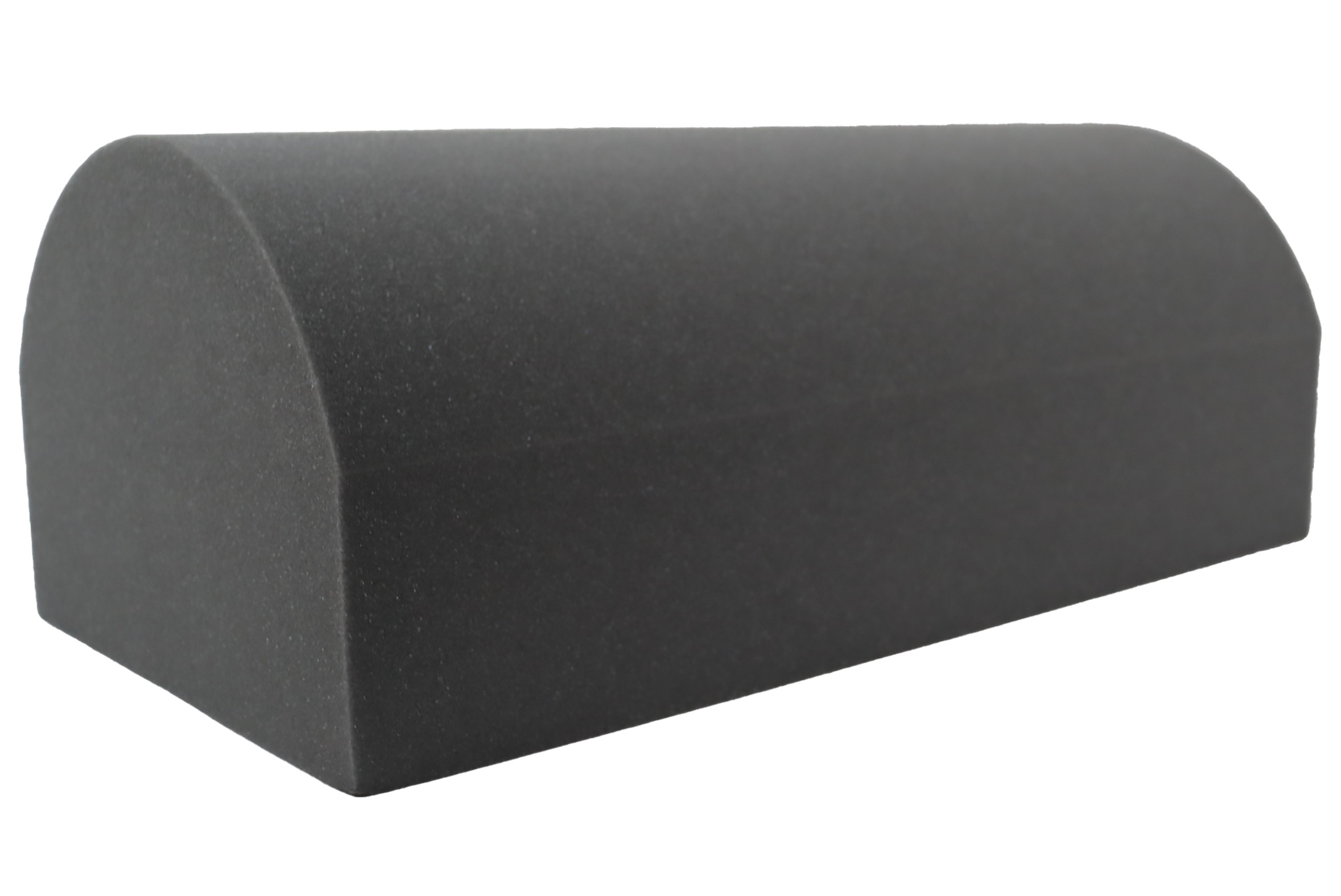

Bolsters

Choose part 115 for knee or back support (5 x 7 x 15 inches) or part 124 for myelography positioning (6.6 x 9 x 18 inches). Dimensions are height x width x length.

Part numberModel / finish
115Open Cell Foam
115-SCBScanCoat
115-UFClosed-cell foam
124Open Cell Foam
124-SCBScanCoat
124-UFClosed-cell foam
Cylinder - Cylinder - Part 153Cylinder - 153

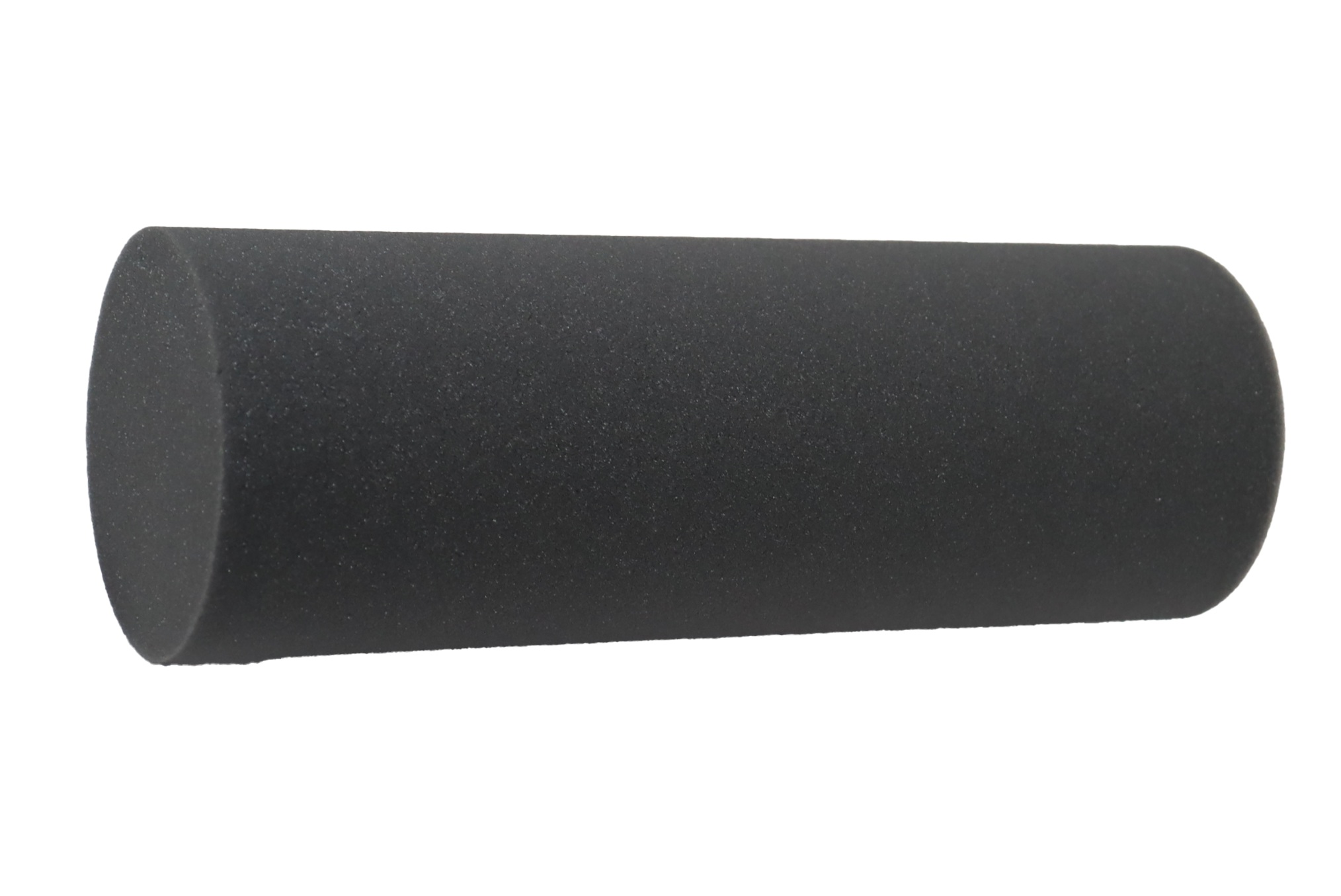

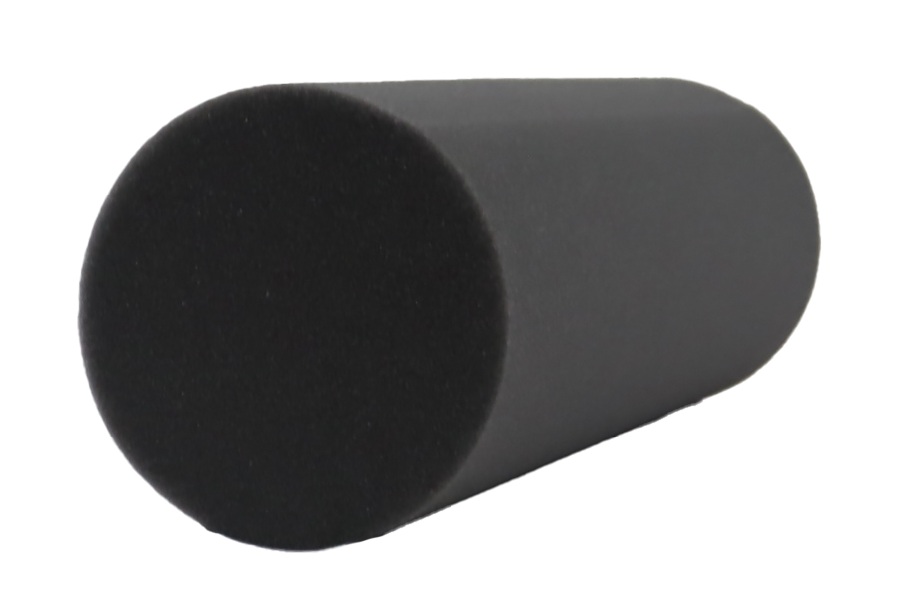

Cylinder

A compact foam cylinder for abdominal compression positioning, including kidney biopsy procedures. Dimensions: 4.25 inches in diameter x 12 inches long.

Part numberModel / finish
153Small, Open cell foam
153-8Small, Clear vinyl cover
153-SCBSmall, ScanCoat
Leg Rests with Knee Cutouts - 194Leg Rests with Knee Cutouts - 193Leg Rests with Knee Cutouts - Leg Rest with Knee Cutouts

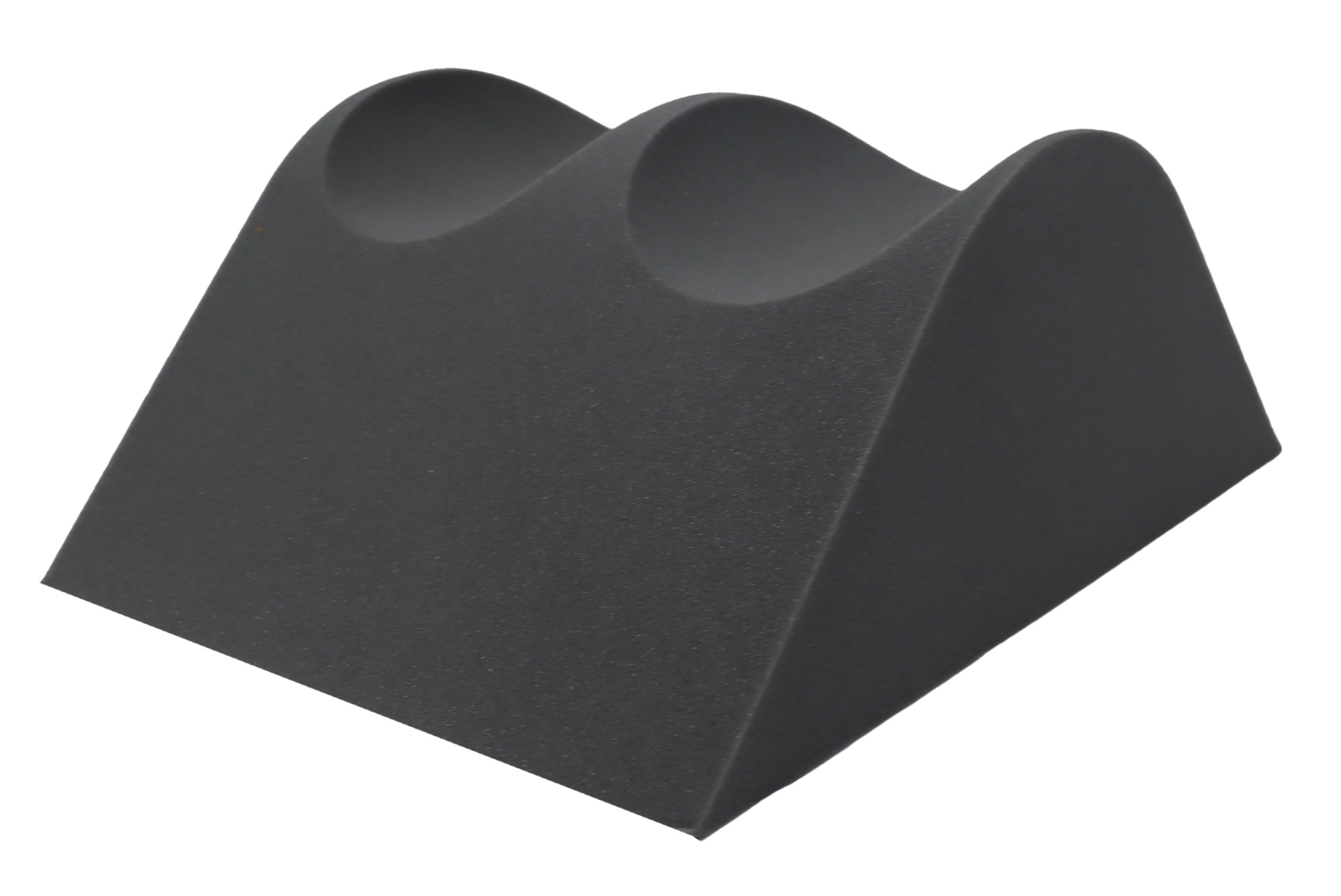

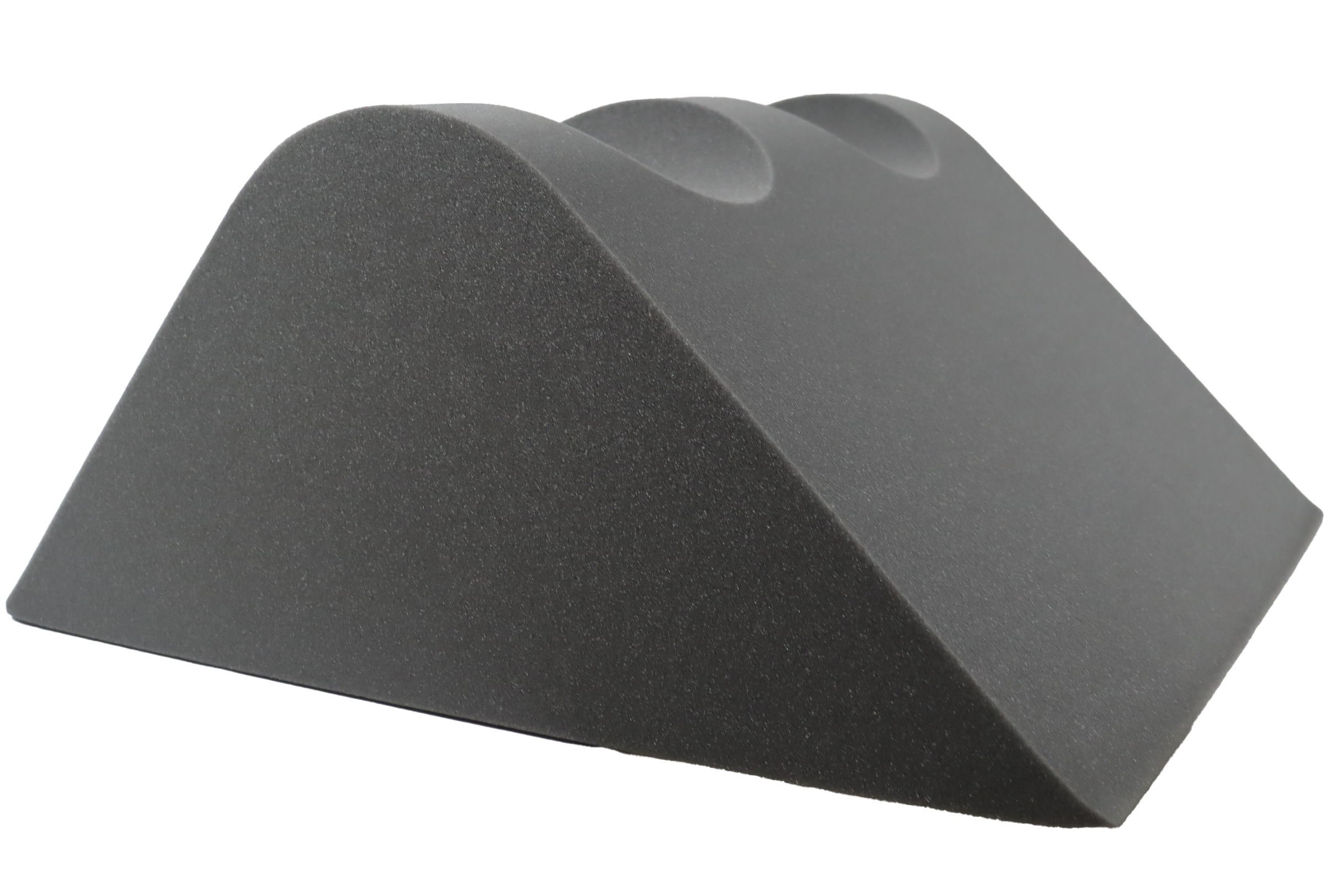

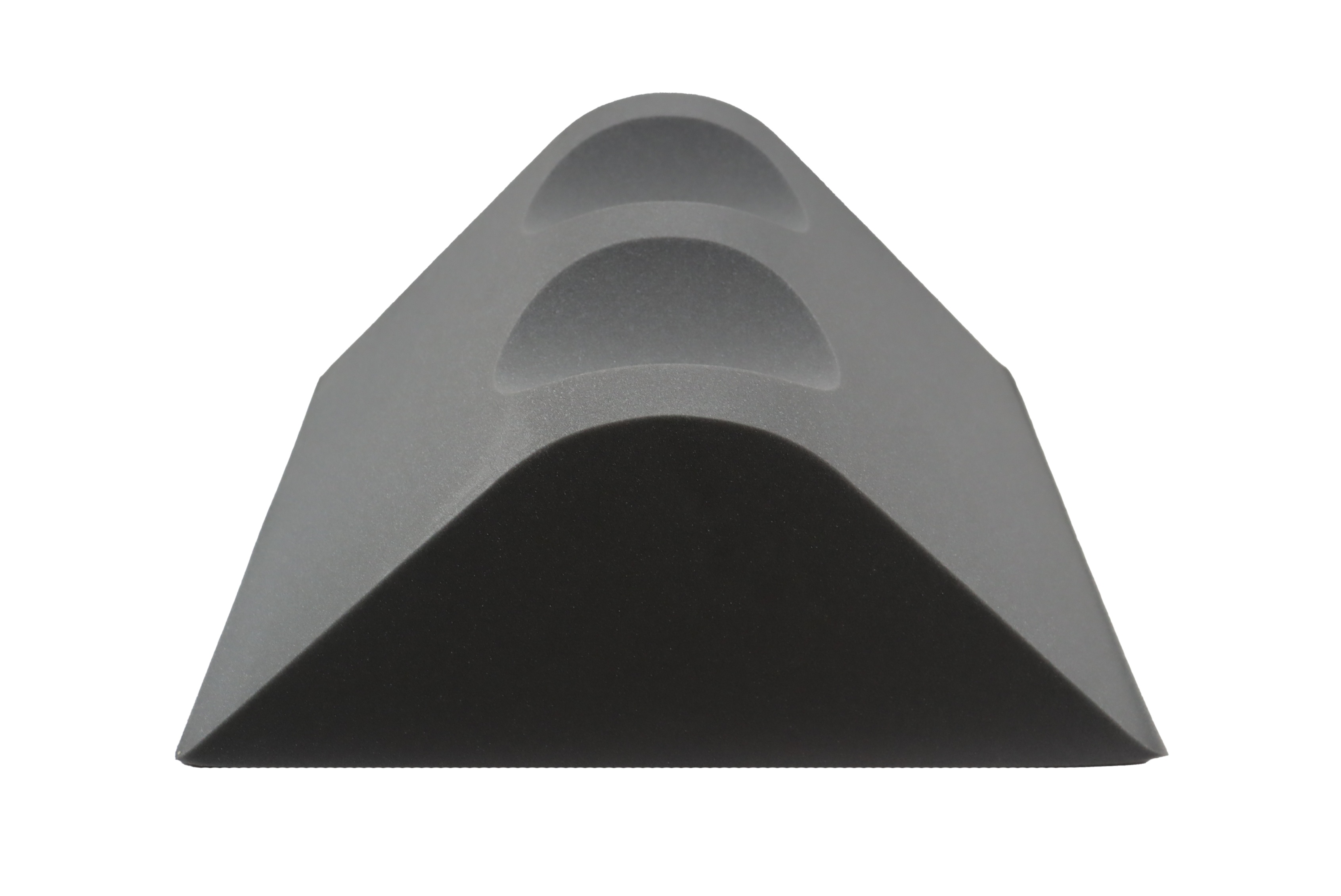

Leg Rests with Knee Cutouts

Support the legs with a shaped knee cutout. Small 192 measures 5 x 18 x 15 inches; medium 193 measures 7 x 13 x 17.5 inches; large 194 measures 10 x 24 x 18 inches.

Part numberModel / finish
192Small, Open cell foam
192-SCBSmall, ScanCoat
193Medium, Open cell foam
193-SCBMedium, ScanCoat
194Large, Open cell foam
194-SCBLarge, ScanCoat
Shoulder Support - Shoulder Support - Part 439Shoulder Support - Shoulder Support - Part 439

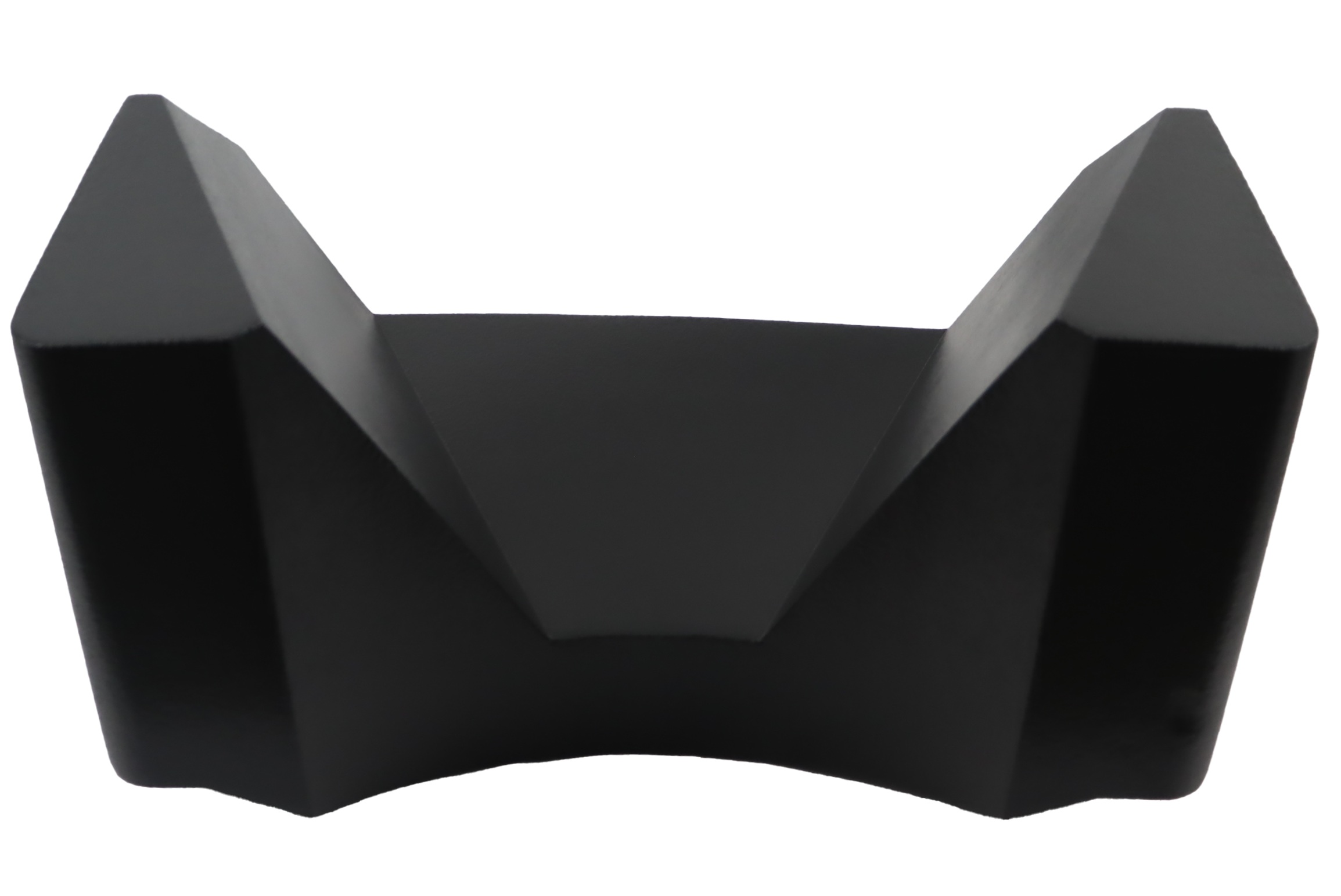

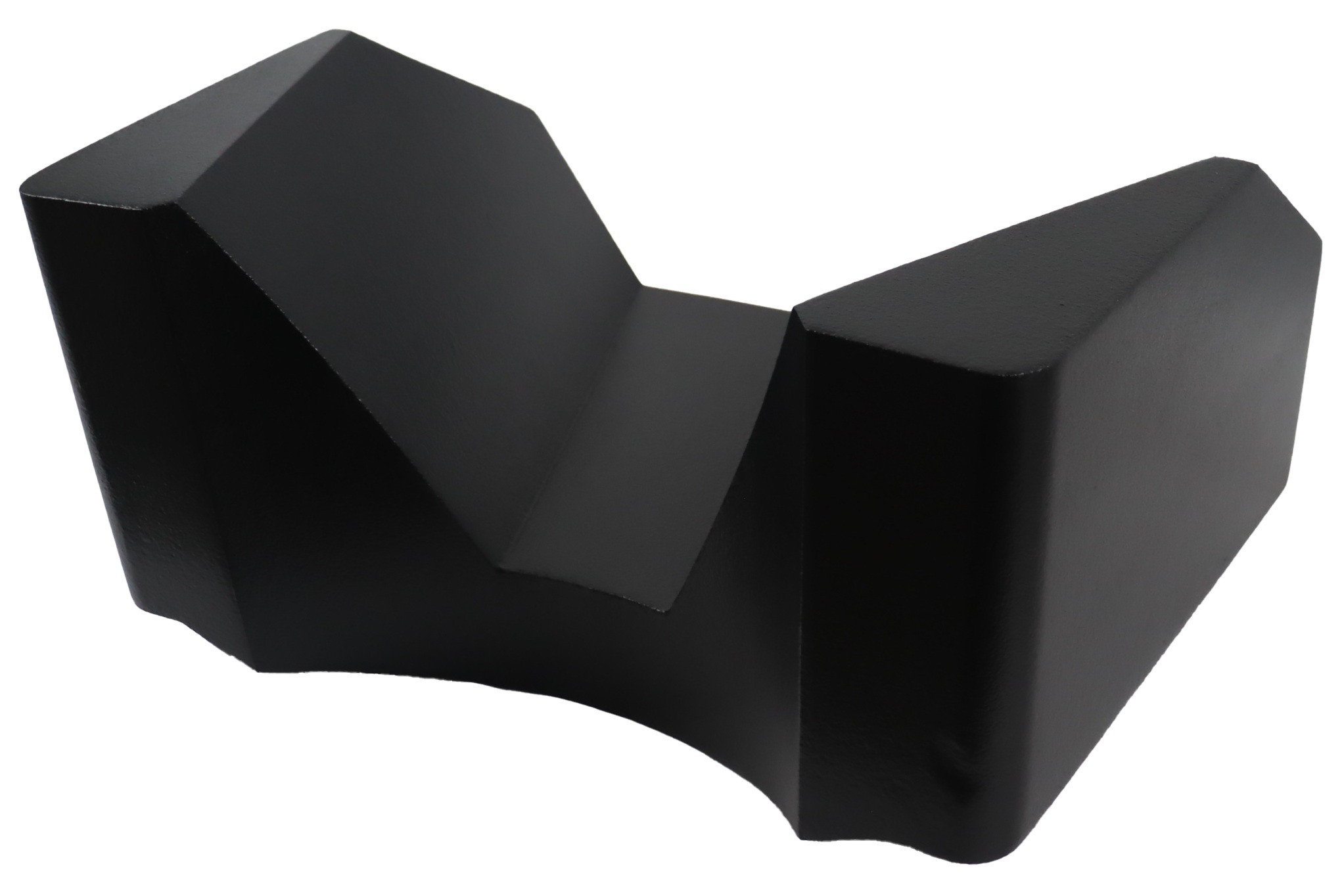

Shoulder Support

Support supine positioning with the arms raised out of the scan field. The winged shoulder support measures 10.3 inches high x 19 inches wide x 14.6 inches long.

Part numberModel / finish
439Winged, Open Cell Foam
439-SCBWinged, ScanCoat
Torso Block - 27 Degrees - 100Torso Block - 27 Degrees - Torso Block - Part 100

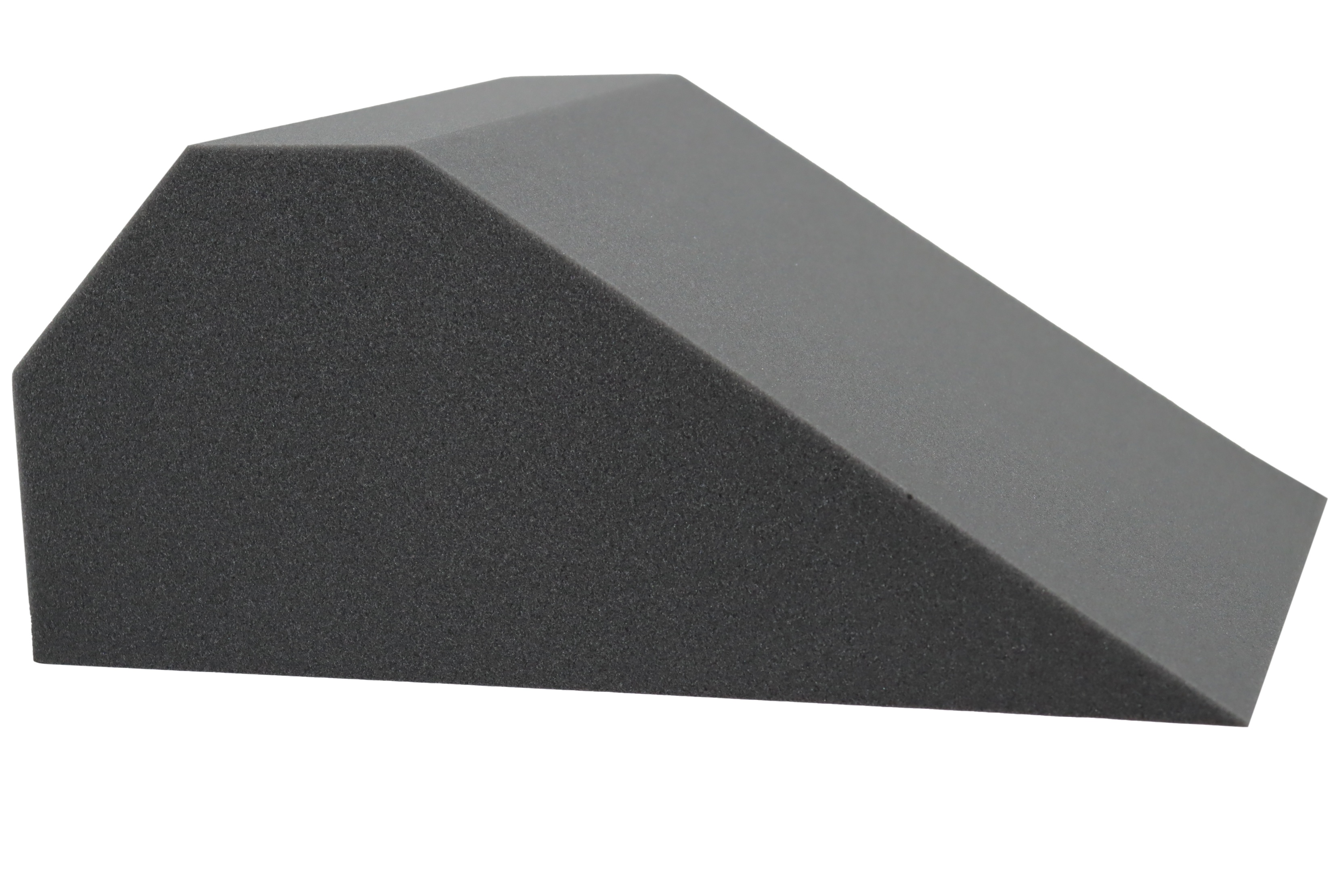

Torso Block - 27 Degrees

Support dorsal and lumbar positioning with a 27-degree foam torso block. Dimensions: 7 x 16 x 12 inches.

Part numberModel / finish
100Open cell foam
100-SCBScanCoat
100-UFClosed cell foam

For pricing and ordering, request a quote from Supertech or call (800) 654-1054. Please specify the complete part number and any required table or scanner compatibility.

Related Positioning Products and Table Accessories

Canon Knee Support PadCanon Knee Support Pad
Domico Knee WedgeDomico Knee Wedge
Premium Heavy-Duty Table PadPremium Heavy-Duty Table Pad
Standard Foam Table PadsStandard Foam Table Pads

AADCO models and product details

AADCO 27 Degree Torso Block - PB-159C / PB-147 / PB-133 / PB-160 / PB-159

This 27-degree torso block supports oblique positioning of lumbar and thoracic areas.

AADCO 27 Degree Torso Block
Click the image to enlarge it.
  • Plain foam, vinyl, coated, conductive and nylon versions.
  • Vinyl-upholstered seams are not artifact-free; manufacturer recommends non-radiographic use for that finish.
  • Keep coated 90-degree edges outside the area of interest to avoid a possible slight image shadow.
Item / specificationDetails
Model / item numbersPB-159C / PB-147 / PB-133 / PB-160 / PB-159
PB-159CArmor-Guard™Coated
PB-147Nylon Covered
PB-133Conductive Covered
PB-160Upholstered in Beige Vinyl
PB-159Standard

Configuration Choices

Specify the required configuration when requesting a quote.

CoveringStandard, Upholstered in Beige Vinyl, Armor-Guard™Coated, Conductive Covered, Nylon Covered

AADCO Angular Bolster - PB-161N / PB-161C / PB-134 / PB-162 / PB-161

The angular bolster supports positioning of the thorax, abdomen and pelvis.

AADCO Angular Bolster
Click the image to enlarge it.
  • Plain foam, coated, vinyl, black-conductive and nylon options.
  • Vinyl-upholstered seams are not artifact-free; manufacturer recommends non-radiographic use for that finish.
  • Keep coated 90-degree edges outside the area of interest to avoid a possible slight image shadow.
Item / specificationDetails
Model / item numbersPB-161N / PB-161C / PB-134 / PB-162 / PB-161
PB-161NNylon
PB-161CArmor-Guard™ Coated
PB-134Black Conductive Covered
PB-162Vinyl Upholstered
PB-161Standard

Configuration Choices

Specify the required configuration when requesting a quote.

CoveringStandard, Armor-Guard™ Coated, Vinyl Upholstered, Black Conductive Covered, Nylon

AADCO Cardiac Wedge - PB-187 / PB-186 / PB-301

The cardiac wedge supports AP positioning for cardiology.

AADCO Cardiac Wedge
Click the image to enlarge it.
  • Regular foam, waterproof-nylon and conductive-cover options are listed.
Item / specificationDetails
Model / item numbersPB-187 / PB-186 / PB-301
PB-187Conductive Covering
PB-186Waterproof Nylon
PB-301Regular

Configuration Choices

Specify the required configuration when requesting a quote.

CoveringRegular, Waterproof Nylon, Conductive Covering

AADCO Chest Decubitus Positioner - PB-001

The PB-001 raises the body two inches to support visualization of the chest wall adjacent to the pad.

AADCO Chest Decubitus Positioner
Click the image to enlarge it.
  • Super-Support foam construction.
  • Waterproof blue-nylon cover.
Item / specificationDetails
Model / item numberPB-001

AADCO Chest Positioner - PB-175C / PB-175N / PB-175

This chest positioner provides a thicker block for decubitus films.

AADCO Chest Positioner
Click the image to enlarge it.
  • Plain foam, nylon and Armor-Guard coated versions.
  • Keep coated 90-degree edges outside the area of interest to avoid a possible slight image shadow.
Item / specificationDetails
Model / item numbersPB-175C / PB-175N / PB-175
PB-175CArmor Guard™ Coated
PB-175NNylon Covering
PB-175Standard

Configuration Choices

Specify the required configuration when requesting a quote.

CoveringStandard, Nylon Covering, Armor Guard™ Coated

AADCO Fluoroscopic Decubitus Poly-Guard Pad - PB-002

The PB-002 elevates the body 1.75 inches for decubitus projections during air-contrast enemas.

AADCO Fluoroscopic Decubitus Poly-Guard Pad
Click the image to enlarge it.
  • Firm foam with a Poly-Guard coating.
  • Coating does not absorb water or barium.
  • High-friction surface helps resist slipping.
Item / specificationDetails
Model / item numberPB-002

AADCO Low-Profile Decubitus Positioner - PB-120D / PB-120

The low-profile decubitus positioner elevates the body for chest or abdominal decubitus imaging.

AADCO Low-Profile Decubitus Positioner
Click the image to enlarge it.
  • Waterproof blue-nylon upholstery.
  • PB-120 is the standard version; PB-120D adds hook-and-loop fastening.
Item / specificationDetails
Model / item numbersPB-120D / PB-120
PB-120DWith hook and loop velcro.

Configuration Choices

Specify the required configuration when requesting a quote.

VelcroStandard, With Velcro

AADCO Medium Bolster - PB-189N / PB-189C / PB-189U / PB-189

The medium bolster supports 45-degree oblique positioning of the thorax, abdomen, pelvis or extremities.

AADCO Medium Bolster
Click the image to enlarge it.
  • 15-inch length with 12.5-inch depth.
  • Regular foam, nylon, vinyl and conductive-cover options.
  • Vinyl-upholstered seams are not artifact-free; the manufacturer recommends that finish for non-radiographic use.
Item / specificationDetails
Model / item numbersPB-189N / PB-189C / PB-189U / PB-189
PB-189NNylon Covered
PB-189CConductive Covered
PB-189UVinyl Upholstered
PB-189Regular

Configuration Choices

Specify the required configuration when requesting a quote.

CoveringRegular, Vinyl Upholstered, Conductive Covered, Nylon Covered

AADCO Upright Body Positioner - PB-181 / PB-302

The upright body positioner supports AP chest and lateral views at bedside or on a gurney.

AADCO Upright Body Positioner
Click the image to enlarge it.
  • Raw-foam PB-302 and waterproof-nylon PB-181 configurations.
  • Designed to hold the body erect during portable chest imaging.
Item / specificationDetails
Model / item numbersPB-181 / PB-302
PB-181Waterproof Covering; Upholstered in Waterproof Nylon
PB-302Raw Foam

Configuration Choices

Specify the required configuration when requesting a quote.

CoveringRaw Foam, Waterproof Covering
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
