Pro-NM NEMA NU1 RSR
SPECT Resolution and Alignment Phantom - Diagnomatic by Pro-Project - 08-116

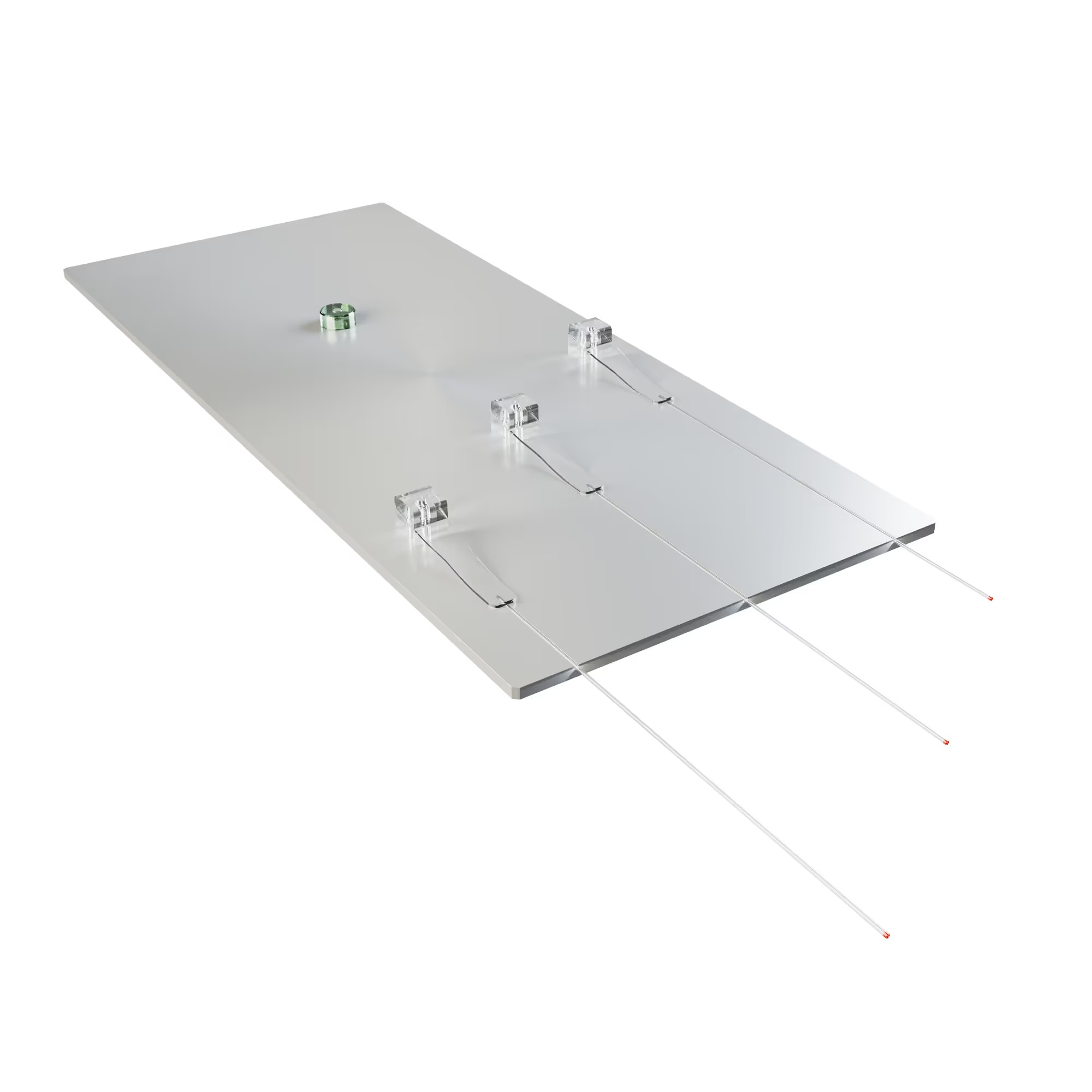

Pro-NM NEMA NU1 RSR from Diagnomatic by Pro-Project holds three capillary line sources for reconstructed resolution measurements without scatter and system alignment checks.

Three thin-walled glass capillaries, each with an internal diameter of approximately 1 mm, are positioned on a dedicated support plate.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• Aluminum Plate
  - Length: 400 mm
  - Width: 200 mm
  - Height: 6 mm

• Capillaries
  - Capillary length: 200 mm
  - Capillary diameter: inner 0.87 mm (outer 1.5 mm)
  - Capillaries plugging clay

• Phantom weight: 1300 g

Accessories

• Additional set of capillaries and clay plug
• Optional carrying case

Features and Test References

• Complies with:
  - NEMA Standards Publication (NU 1-2023) Performance Measurements of Gamma Cameras
• CE marked
• Includes a manual covering the tests, result evaluation and recording.

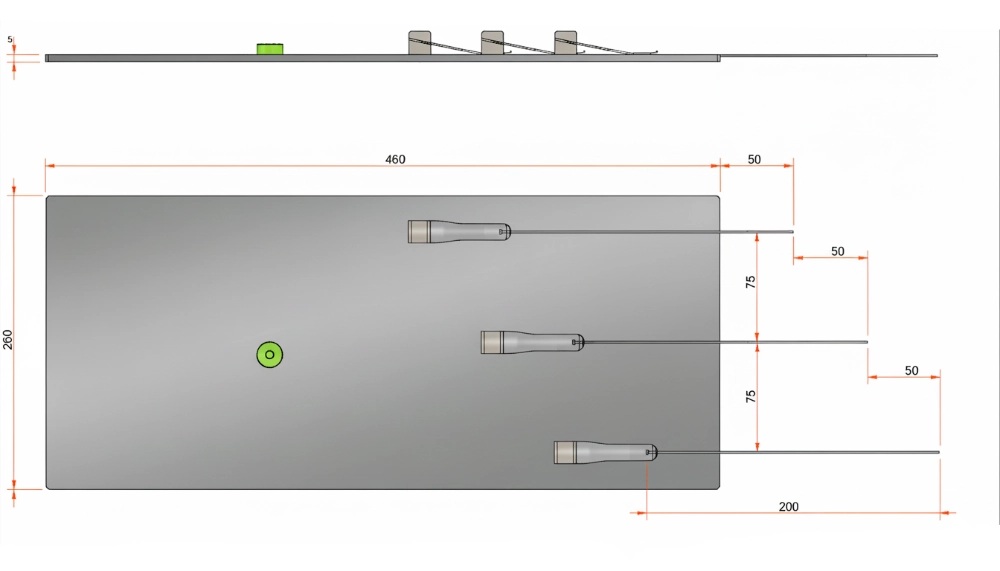

Additional Product Illustrations
