Pro-NM NEMA Linear Source
SPECT Line Source Phantom - Diagnomatic by Pro-Project

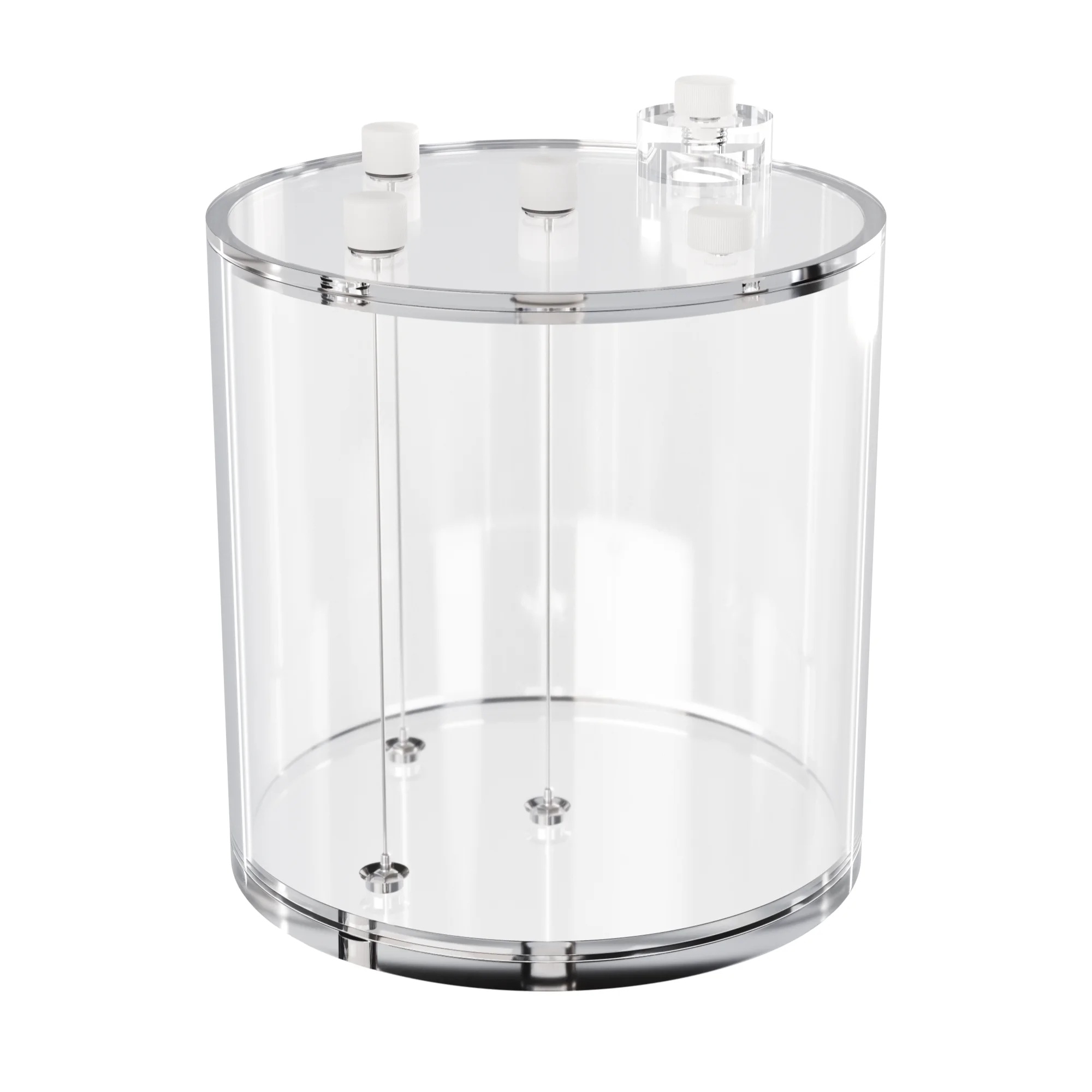

Pro-NM NEMA Linear Source from Diagnomatic by Pro-Project combines a PMMA cylinder and line-source insert for reconstructed spatial resolution and alignment checks.

Click a photo or illustration to enlarge it.

Specifications

Main cylinder

• Cylinder outside diameter: 220 mm
• Cylinder inside diameter: 204 mm
• Cylinder outside height: 225 mm
• Cylinder inside height: 200 mm
• Material: PMMA
• Weight: 1.3 kg

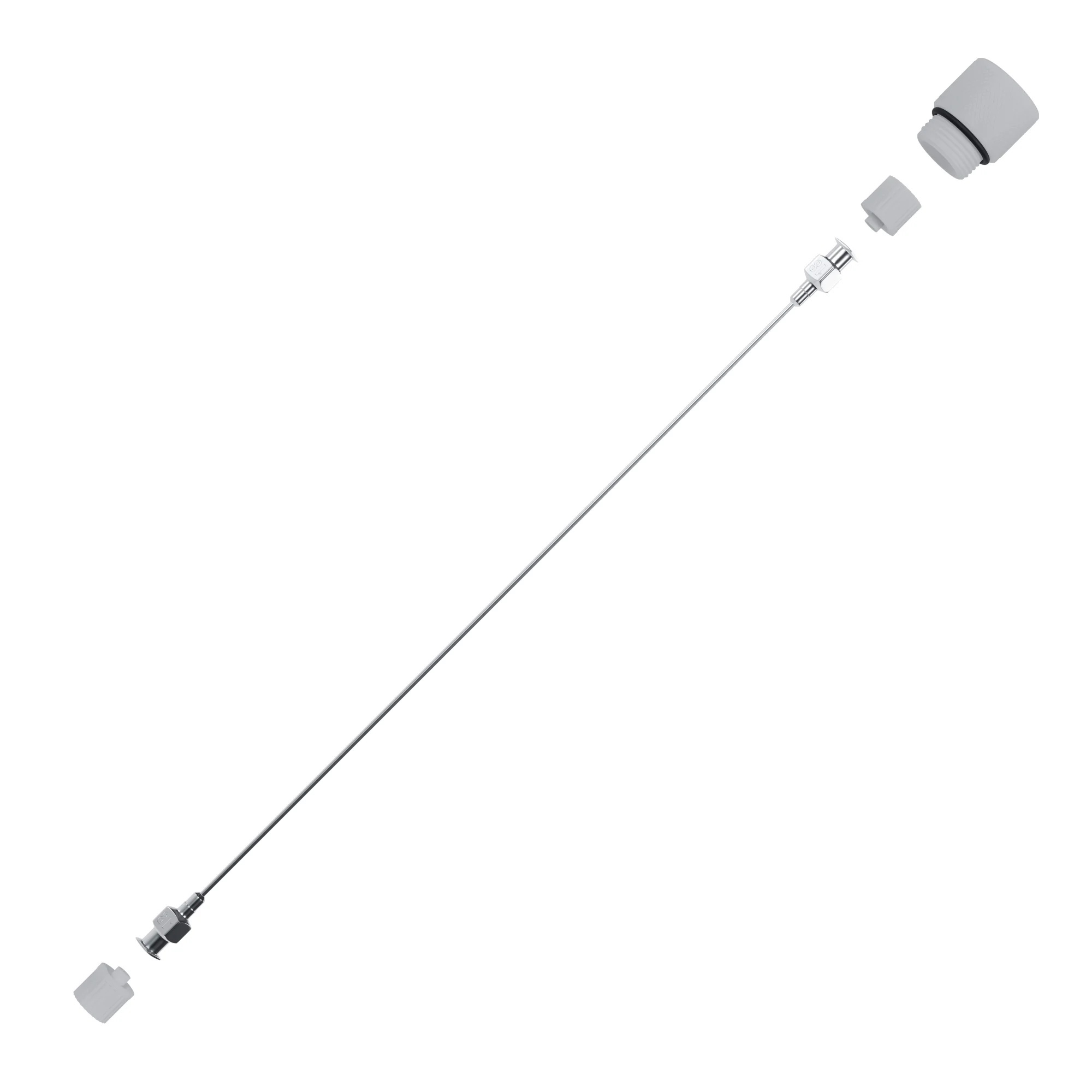

Line source insert

• Diameter of line source: 1 mm
• Spacing of line source: 75 mm
• Useful height of line source: 192 mm
• Material: stainless steel tubes

Features and Test References

• Complies with:
  - NEMA Standards Publication (NU 1-2023) Performance Measurements of Gamma Cameras
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
