Pro-NM NEMA 94

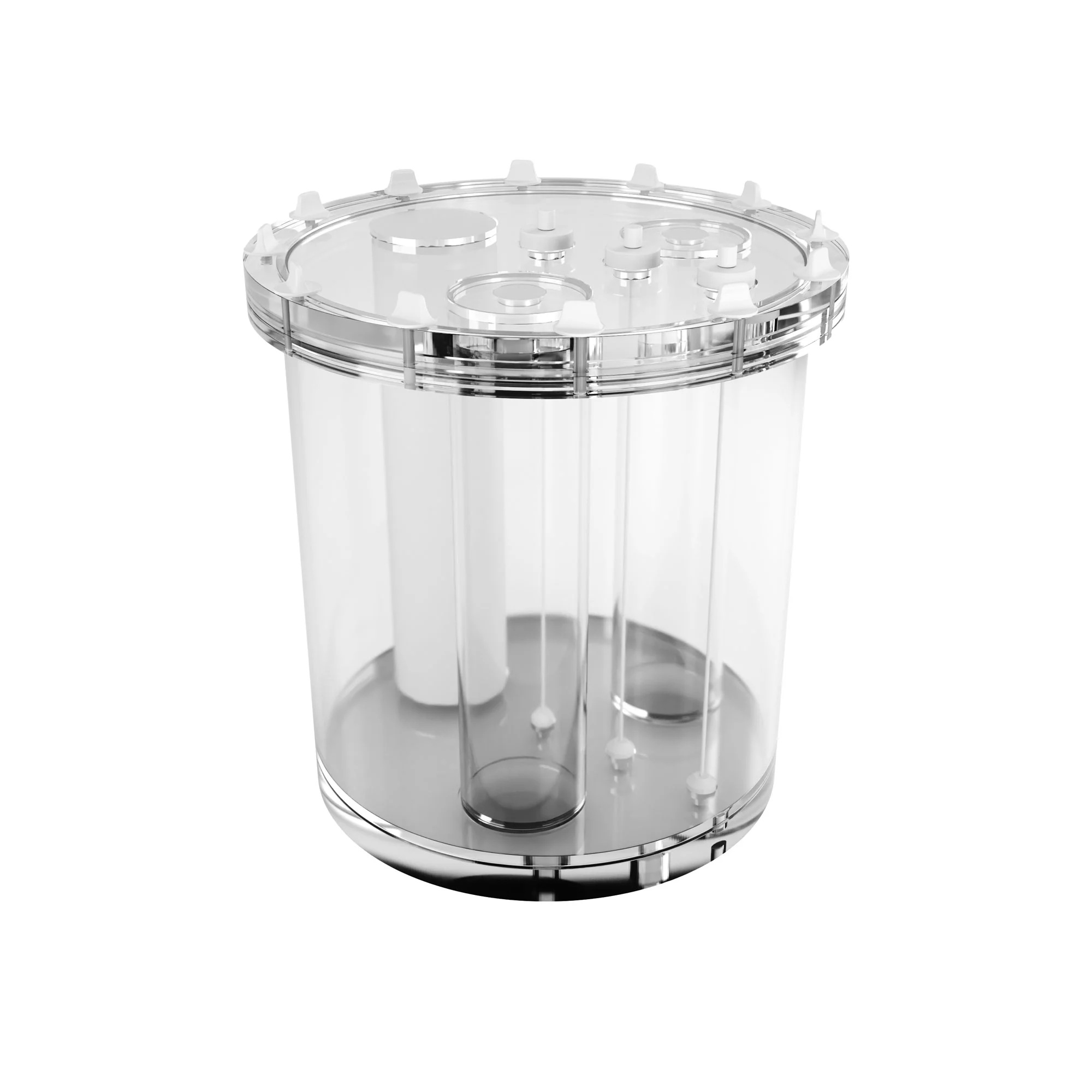

PET Performance Phantom - Diagnomatic by Pro-Project - 08-120

Pro-NM NEMA 94 from Diagnomatic by Pro-Project supports PET count-rate, uniformity, scatter and compensation checks using the NEMA 1994 test approach.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• cylinder outside diameter: 200 mm
• cylinder inside diameter: 194 mm
• wall thickness: 3 mm
• Teflon Insert diameter: 51 mm
• Fillable Insert inside diameter: 45 mm
• Fillable Insert height: 185 mm
• Fillable Insert volume: ~ 295 mL
• Line Source diameter: ~ 1 mm
• Line Source height: 184 mm

Features and Test References

• complies with:
  - Performance Measurements of Positron Emission Tomographs, NEMA Standards Publication NU2, National Electrical Manufacturers Association (NEMA), Washington, D.C., 1994.
  - Karp JS, Daube-Witherspoon ME, Hoffman EJ et al. “Performance standards in positron emission tomography”, J Nucl Med, 32:2342-2350.
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
