Pro-NM AutoFlood
Gamma Camera Flood Phantom - Diagnomatic by Pro-Project - 08-410

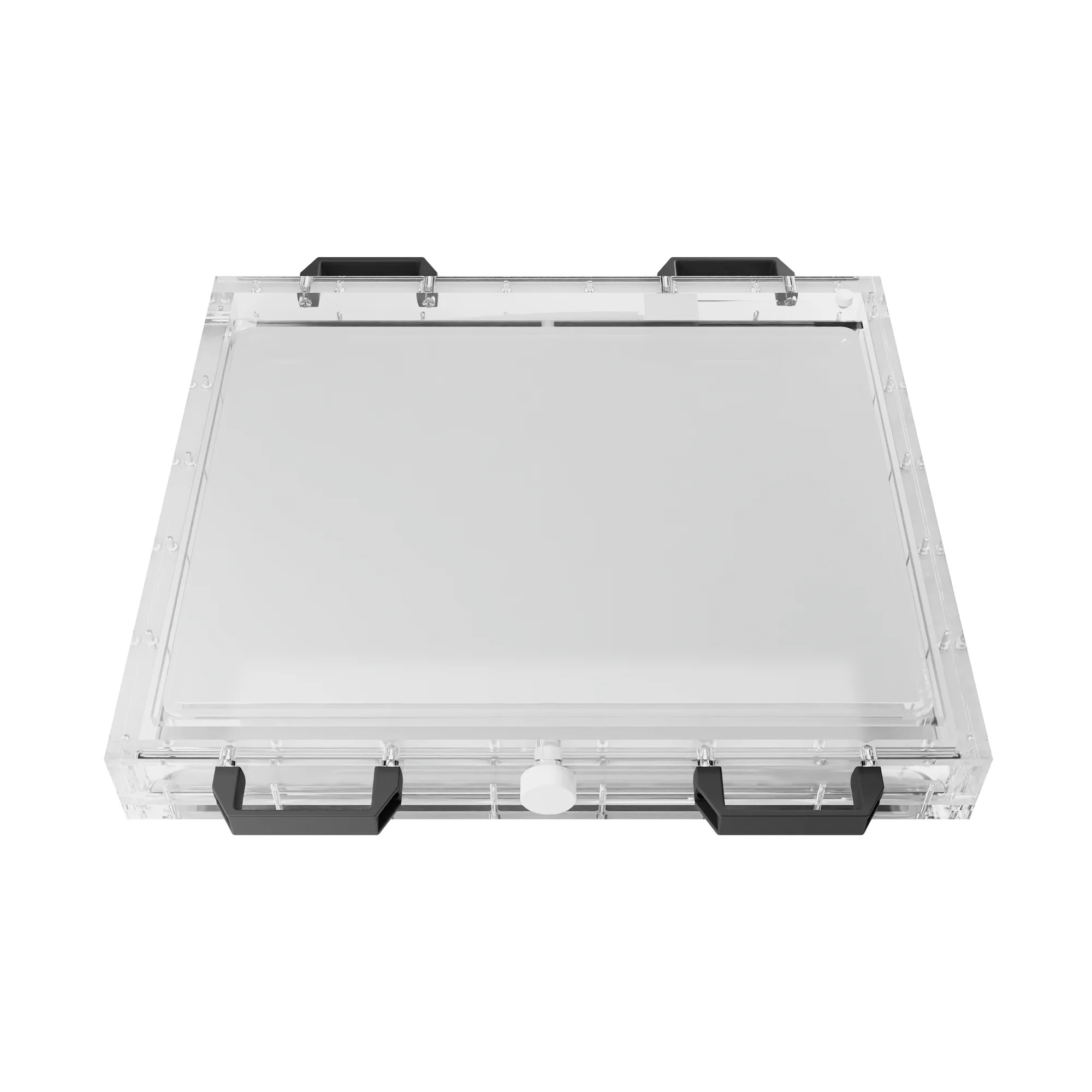

Pro-NM AutoFlood from Diagnomatic by Pro-Project integrates a mixing pump with a flood phantom for gamma camera uniformity and sensitivity checks.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• Dimension of the cuvette [mm]: 545 x 630 x 80
• Dimension with attachment parts [mm]: 635 x 630 x 90
• Filling quantity approx. [liters]: 12
• Weight empty approx. [kg]: 21
• Operation weight approx. [kg]: 31
• Eff. field of view [mm]: 400 x 540
• Total field of view [mm]: 440 x 580
• Material in measuring range: 20 mm acrylic glass/glass
• Measuring accurarcy according to DIN: 1%
• Filling medium: distilled water
• Power Supply: low voltage (12V wall plug transformer)
• Mixing time: 4 minutes
• Operation temperature: 15° C – 25°

Features and Test References

• fully automatic mixing with integrated circulation pump
• including air chambers for pressure compensation
• compact, closed system
• measuring areas made of glass/acrylic glasscomposite design
• optional positioning cart for different camera systems

• complies with:
  -DIN 6855, Part 2
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
