Pro-NM ACR Performance Small Phantom
Small-FOV Accreditation Phantom - Diagnomatic by Pro-Project - 08-920

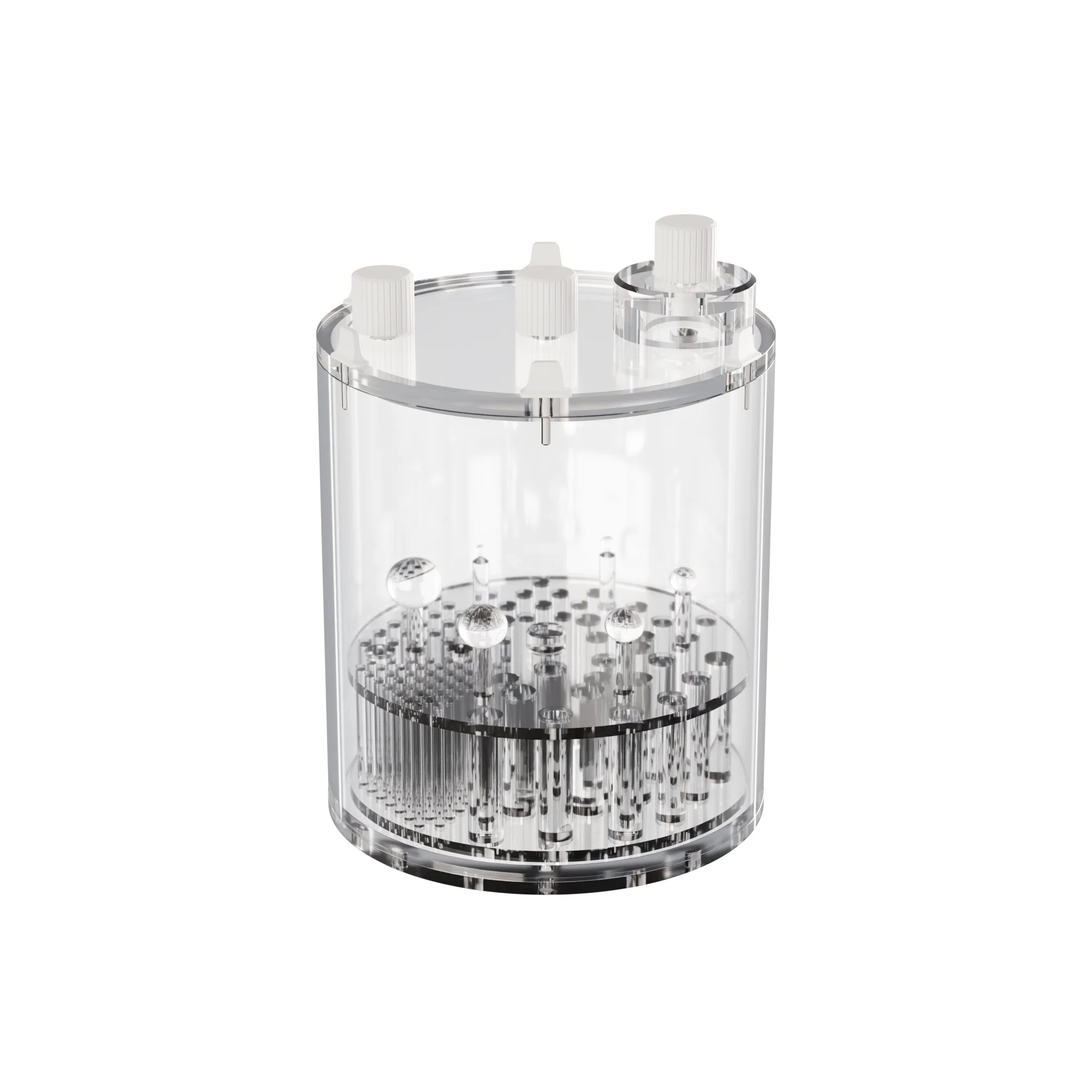

Pro-NM ACR Performance Small Phantom from Diagnomatic by Pro-Project provides rods, spheres and a uniform region for accreditation and performance checks of small-field nuclear medicine systems.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

Main cylinder

• All clear PMMA
• Cylinder inside diameter: 139,7 mm [5 ½”]
• Cylinder inside height: 150 mm
• Cylinder wall thickness: 6.4 mm [0 ¼”]
• Outside diameter: 152,2 –152,5 mm
• Overall length: 170 mm

Insert & spheres specifications

• All clear PMMA
• Rod diameters: 4.8 (21 pcs), 6.4 (13 pcs), 7.9 (8 pcs), 9.5 (6 pcs), 11.1 (3 pcs), and 12.7 mm (3 pcs)
• Height of rods: 40 mm
• Rods in standard configuration (numbers and orientation)
• Solid sphere diameters: 6.4, 9.5, 12.7, 15.9, 19.1 and 25.4 mm
• Height of center of spheres from base plate: 78 mm
• Radius of center of the spheres from the center of the phantom: 50 mm
• Angular Spacing: 60°

Accessories

• optional heavy-duty carrying case

Features and Test References

• Complies with ACR accreditation requirements
• Referenced in Nuclear Medicine Quality Control Manual (ACR, 2024)
• CE marked
• Detailed guidelines for test execution and results assessment
