Pro-NM 3DB - 08-901
3D Brain Phantom for SPECT, PET and Hybrid Imaging
Diagnomatic by Pro-Project
Bring anatomically patterned brain activity to your nuclear medicine imaging studies. The Pro-NM 3DB phantom simulates the three-dimensional distribution of radiopharmaceuticals in the human brain for SPECT, PET and hybrid imaging systems.
Its microlayer brain insert produces a gray-to-white matter uptake ratio of 4:1 and simulates the absence of uptake in the ventricular system, using just one fillable chamber.

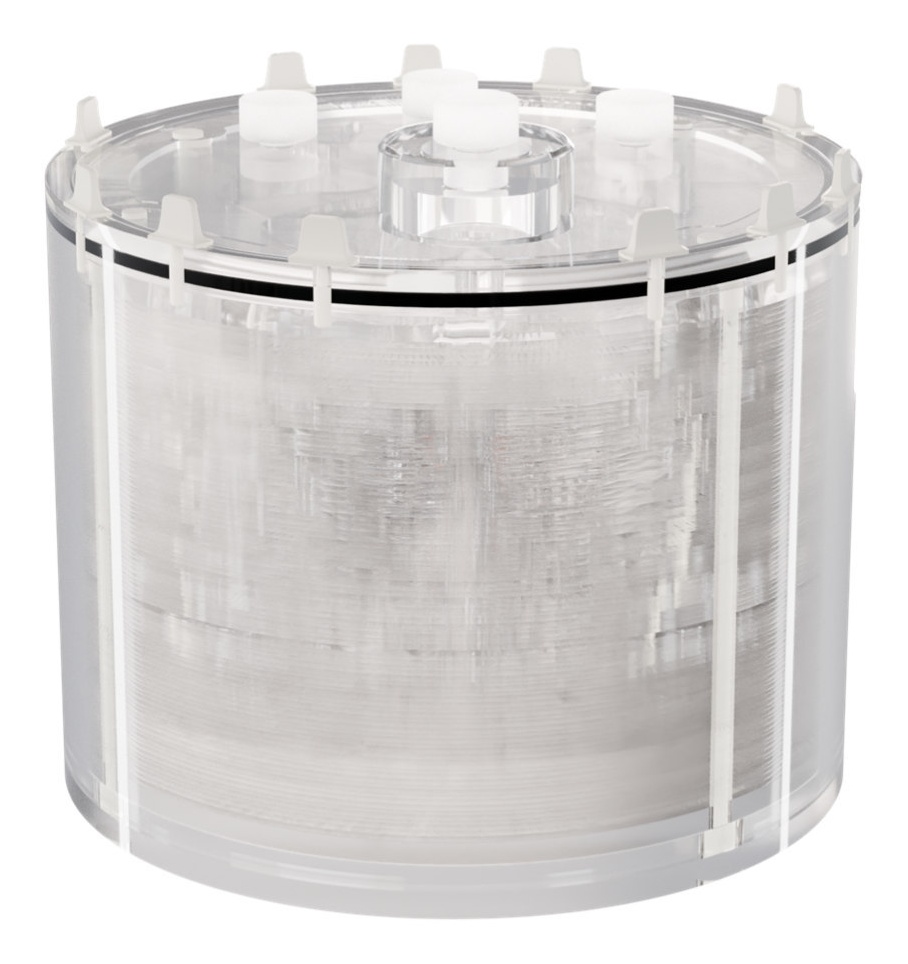

Click the product photo to enlarge it.
Brain Activity Simulation with a Single Fillable Chamber
- Three-dimensional simulation of anatomical radiopharmaceutical distribution in the human brain.
- Designed for SPECT and PET studies, as well as SPECT/CT, PET/CT and PET/MRI hybrid systems.
- Microlayer construction simulates a physiological gray-to-white matter uptake ratio of 4:1.
- Ventricular regions simulate no radiopharmaceutical uptake.
- Approximately 1.2 L of fillable volume.
Technical Specifications
| Component / parameter | Specification |
|---|---|
| Product / part number | Pro-NM 3DB / 08-901 |
| Main cylinder material | Clear PMMA |
| Cylinder inner diameter | 190.5 mm (7.5 in) |
| Cylinder inner height | 135 mm (5.3 in) |
| Cylinder wall thickness | 6.4 mm (1/4 in) |
| Liquid / fillable volume | Approximately 1.2 L |
| Brain insert material | Clear PC |
| Brain insert outer diameter | 190 mm |
| Brain insert outer height | 135 mm |
Optional Cold Lesion Inserts and Carrying Case
Optional solid cold lesion inserts displace radioactive solution within a defined volume to create reproducible zero-uptake regions. These inserts allow localized hypoactive areas to be represented in the phantom.
An optional carrying case is also available. Contact Supertech for the desired configuration and accessory information.
Product Information
- CE certified, according to the manufacturer's datasheet.
- Technical specifications can be modified to customer requirements. Contact Supertech to discuss customization.
Download the Pro-NM 3DB manufacturer datasheet (PDF).
Contact Supertech at (800) 654-1054 or send a quote request. Please specify Pro-NM 3DB - 08-901.
