Pro-NM ACR Performance SPECT + PET - Diagnomatic - 08-912
The design of the Pro-NM ACR Performance phantom represents the gold standard for performance evaluation and quality assurance (QA) of SPECT and PET systems, and this model is fully compliant with the accreditation requirements of the ACR (American College of Radiology).

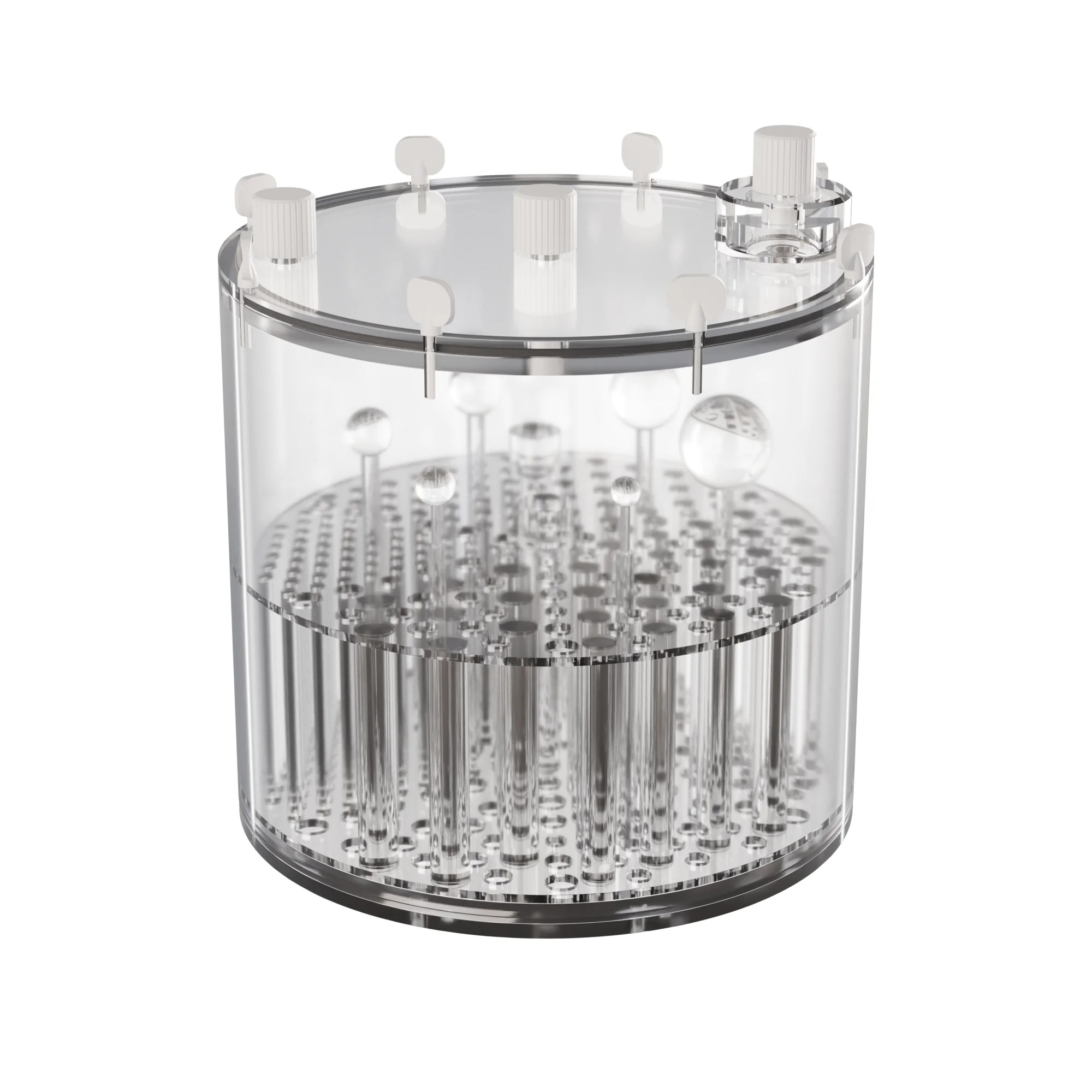

In the SPECT version, the Pro-NM ACR Performance phantom enables the assessment of key tomographic imaging parameters such as spatial resolution (solid rod insert), cold-spot contrast (set of solid spheres), and tomographic uniformity (uniform region). The phantom can also be used to evaluate the effectiveness of attenuation and scatter correction algorithms. In the PET Lid version—obtained by removing the spheres and installing the PET Lid cover—the phantom is configured for PET accreditation testing. The PET Lid cover (in accordance with ACR recommendations) replaces the set of solid spheres with a series of vials simulating hot and cold foci of activity uptake.
Technical data (compliant with stringent ACR Requirements):- Main cylinder:
- All clear PMMA HU 110-135
- Cylinder inside diameter: 209.6 mm [8 ¼"]
- Cylinder inside height: 184 mm
- Cylinder wall thickness: 6.4 mm [0 ¼"]
- Volume - Empty: 6.35 L
- Volume with cold rod insert: 5.55 L
- Spheres do not significantly affect volume
- Cold rods insert:
- Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
- Height of rods: 88 mm
- Rods in standard configuration (numbers and orientation)
- Cold spheres:
- Solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8 mm
- Height of center of spheres from base plate: 127 mm
- Radius of center of the spheres from the center of the phantom: approximately 60 mm

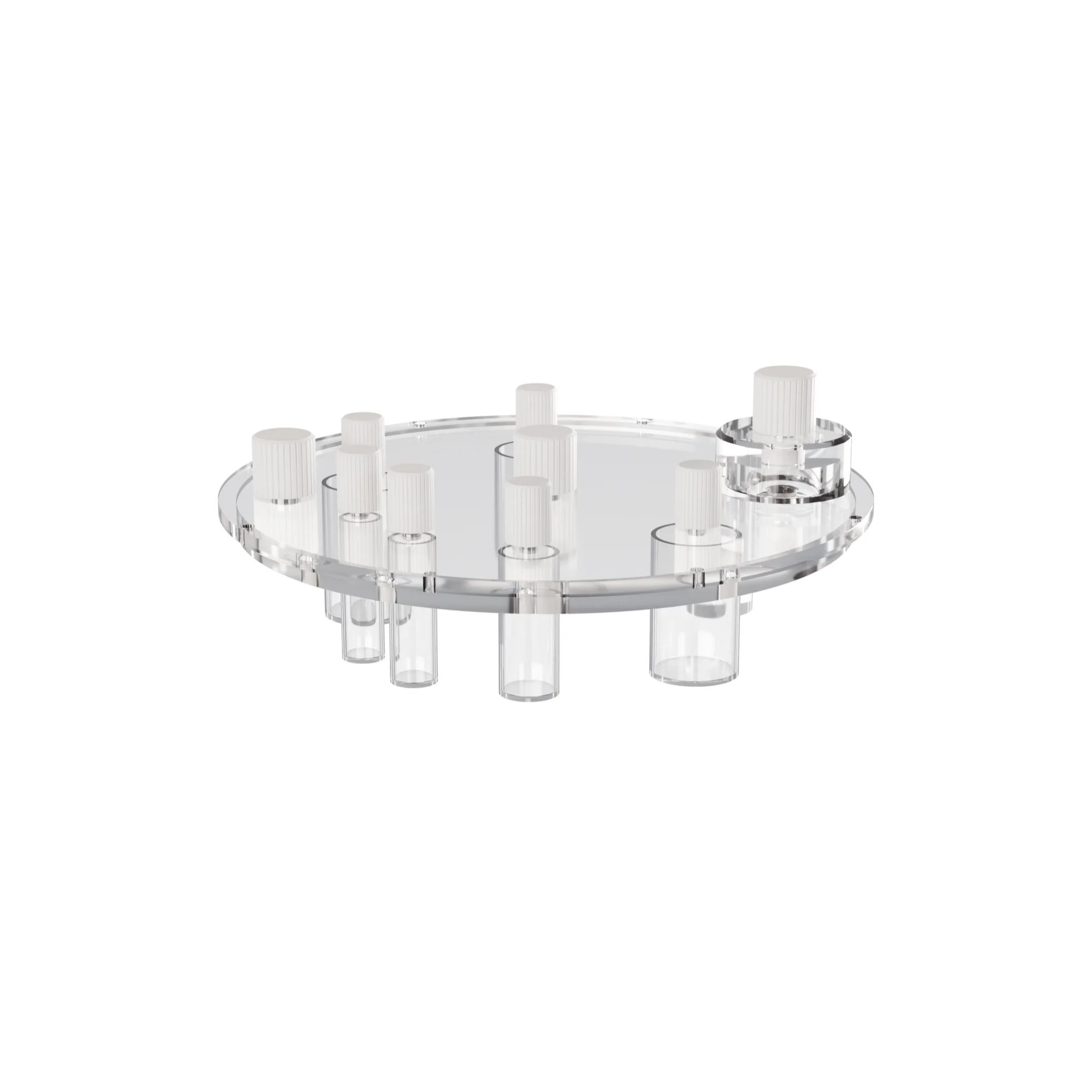

- PET Lid with cylindrical samples:
- Refillable thin-walled cylinders sizes and volumes: 8 mm and 1.9 mL; 12 mm and 4.3 mL; 16 mm and 7.7 mL; 25 mm and 18.7 mL (3x)
- Internal diameter: air & water cylinders: 25 mm
- External diameter (including cylinder wall): air & water cylinders: 29.4 mm, Teflon® 25 mm
- Teflon® cylinder height: 38.1 mm
- Air & Water cylinders cylinder height (Internal): 38.1 mm
- Volume with PET Lid and no insert: 6.2 liters
- Radius/diameter of cylinders: ~67.0 mm/~134.0 mm
- Optional heavy-duty carrying case
- Complies with ACR accreditation requirements
- Meets AAPM Report No. 177
- Referenced in Nuclear Medicine Quality Control Manual (ACR, 2024)
- Referenced in Positron Emission Tomography Quality Control Manual (ACR, 2025)
- CE marked
- Detailed guidelines for test execution and results assessment
| Item Number | Description |
| 08-912 | Pro-NM ACR Performance SPECT + PET |
