Pro-NM ACR Performance PET - Diagnomatic - 08-911

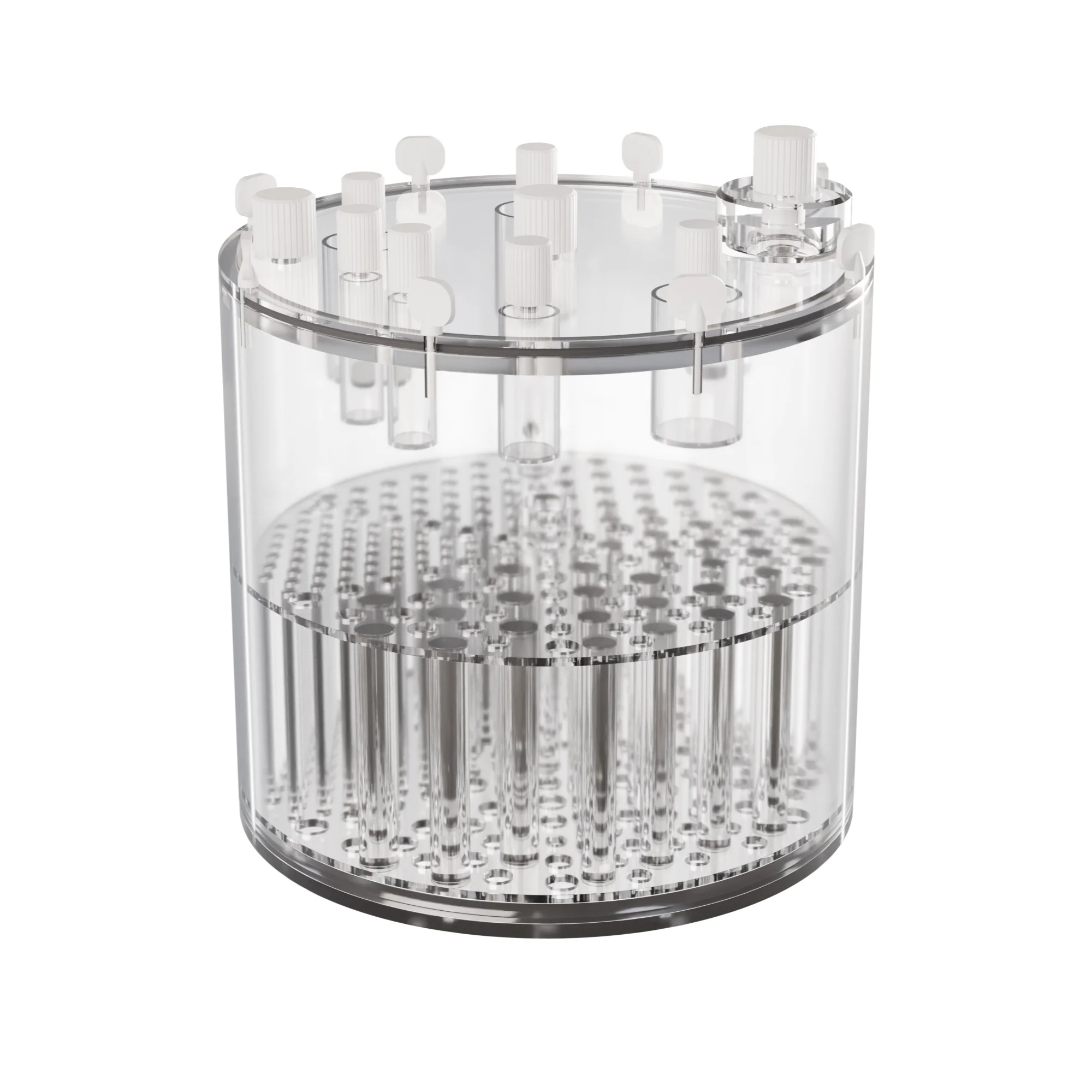

The Pro-NM ACR Performance PET is a phantom fully compliant with the accreditation requirements of the American College of Radiology (ACR), dedicated to PET accreditation testing. The phantom consists of a PMMA cylinder containing a solid rod insert for spatial resolution assessment, a uniform section, and a dedicated ACR-compliant PET Lid designed to simulate hot and cold lesions (replacing the set of solid spheres used in the standard version of this type of phantom).
Technical data (compliant with stringent ACR Requirements):- Main cylinder:
- All clear PMMA HU 110-135
- Cylinder inside diameter: 209.6 mm [8 ¼"]
- Cylinder inside height: 184 mm
- Cylinder wall thickness: 6.4 mm [0 ¼"]
- Volume - Empty: 6.35 L
- Volume with cold rod insert: 5.55 L
- Spheres do not significantly affect volume
- Cold rods insert:
- Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
- Height of rods: 88 mm
- Rods in standard configuration (numbers and orientation)
- PET Lid with cylindrical samples:
- Refillable thin-walled cylinders sizes and volumes: 8 mm and 1.9 mL; 12 mm and 4.3 mL; 16 mm and 7.7 mL; 25 mm and 18.7 mL (3x)
- Internal diameter: air & water cylinders: 25 mm
- External diameter (including cylinder wall): air & water cylinders: 29.4 mm, Teflon® 25 mm
- Teflon® cylinder height: 38.1 mm
- Air & Water cylinders cylinder height (Internal): 38.1 mm
- Volume with PET Lid and no insert: 6.2 liters
- Radius/diameter of cylinders: ~67.0 mm/~134.0 mm
- Optional heavy-duty carrying case
- Complies with ACR accreditation requirements
- Meets AAPM Report No. 177
- Referenced in Positron Emission Tomography Quality Control Manual (ACR, 2025)
- CE marked
- Detailed guidelines for test execution and results assessment
| Item Number | Description |
| 08-911 | Pro-NM ACR Performance PET |
