Anthropomorphic Torso Phantom™ SPECT
Evaluation of cardiac and lung ECT data acquisition

Data Spectrum item numbers: Anthropomorphic Torso Phantom: 112-001 (legacy ECT/TOR/P); Cardiac Insert: 111-001 (legacy ECT/CAR/I).

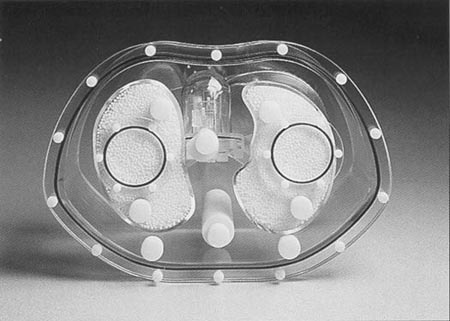

Top view - Shown with
optional Cardiac Insert™

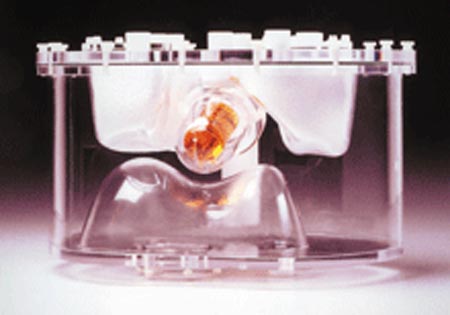

Frontal view - Shown with
optional Cardiac Insert™

Bottom view - Shown with
optional Cardiac Insert™

Main Features:

Includes large, body-shaped cylinder lung, liver and spine inserts
Lung inserts can be filled with Styrofoam^® beads and water to simulate lung tissue density
Optional Cardiac Insert™ (Model ECT/CAR/I) may be purchased sepa rately
Simulates upper torso of average to large male/female patients (38 x 26 cm)
Simulates anatomical structures and radioactivity distributions
Optional Fillable Spine Insert available

Main Applications:

Specifications

Dimensions:
   - O.D.: 10.25" anterior-posterior x 15" lateral (26 x 38 cm)
   - I.D.: 9.5" anterior-posterior x 14.2" lateral (24 x 36 cm)
   - Wall Thickness: 0.37" (9.5 mm)
Volumes:
   - Left Lung (w/o Styrofoam^® beads): ~ 0.9 L
   - Right Lung (w/o Styrofoam^® beads): ~ 1.1 L
   - Left Lung (w/ Styrofoam^® beads): ~ 0.36 L
   - Right Lung (w/ Styrofoam^® beads): ~ 0.44 L
   - Liver: ~ 1.2 L
   - Background: ~ 10.3 L
   - Cylinder w/ Lung-Spine Insert: ~ 7.4 L

Transmission CT

ECT/TOR/P	Anthropomorphic Torso Phantom
Related
ECT/CAR/I	Cardiac Insert
