Pro-NDT ASTM Step - Pro-Project

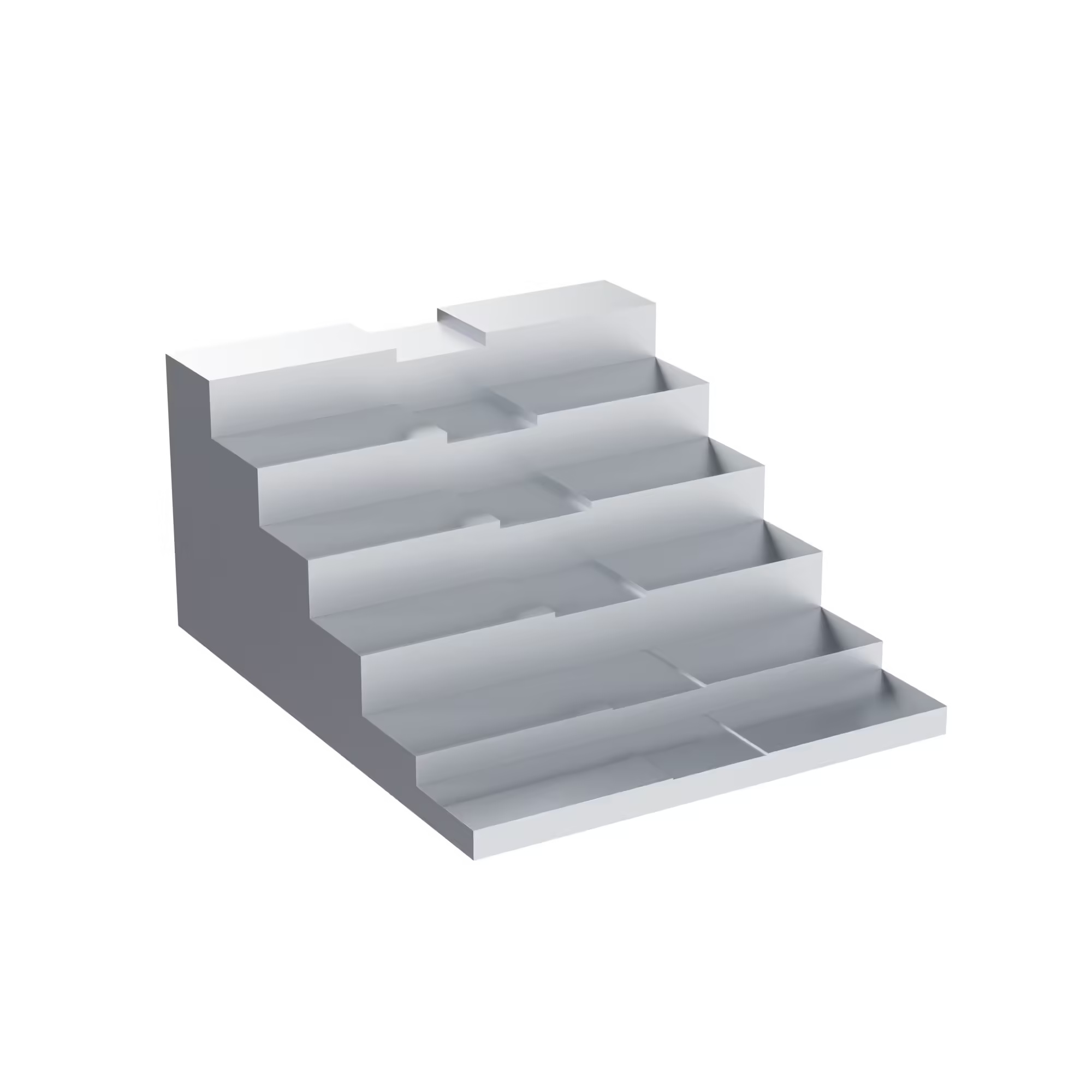

10-301 - Aluminium step wedge
10-302 - Titanium step wedge
10-303 - Inconel step wedge

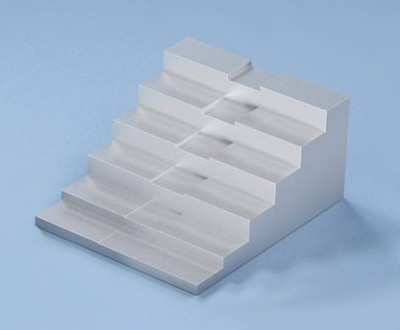

Step-Wedge Image Quality Indicators according to ASTM E2597-07 Standard Practice for Manufacturing Characterization of Digital Detector Arrays. The set consists of three step wedges made from Aluminium-6061, Titanium-Ti-6Al-4V and Inconel 718.
Technical data (can be modified to customer specifications):- Dimensions: 15 x 70 x 4 mm
- Aluminium-6061 - 210x175x100 mm
- Titanium Ti-6Al-4V - 210x175x30 mm
- Inconel 718 - 210x175x12.5 mm
- Calibration / test certificate according to ASTM E2597-07
- Complies with:
- ASTM E2597-07
- CE certified (declaration of conformity according to ISO/IEC 17050-1)
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
| Item Number | Description |
| 10-301 | Pro-NDT ASTM Step - Aluminium step wedge |
| 10-302 | Pro-NDT ASTM Step - Titanium step wedge |
| 10-303 | Pro-NDT ASTM Step - Inconel step wedge |
