Pro-NDT ASTM F792-17
Security X-Ray Test Object - Diagnomatic by Pro-Project - 10-401

Pro-NDT ASTM F792-17 from Diagnomatic by Pro-Project provides a standardized test object for assessing security X-ray image quality.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions of the entire test tool: 415 x 250 x 110 mm

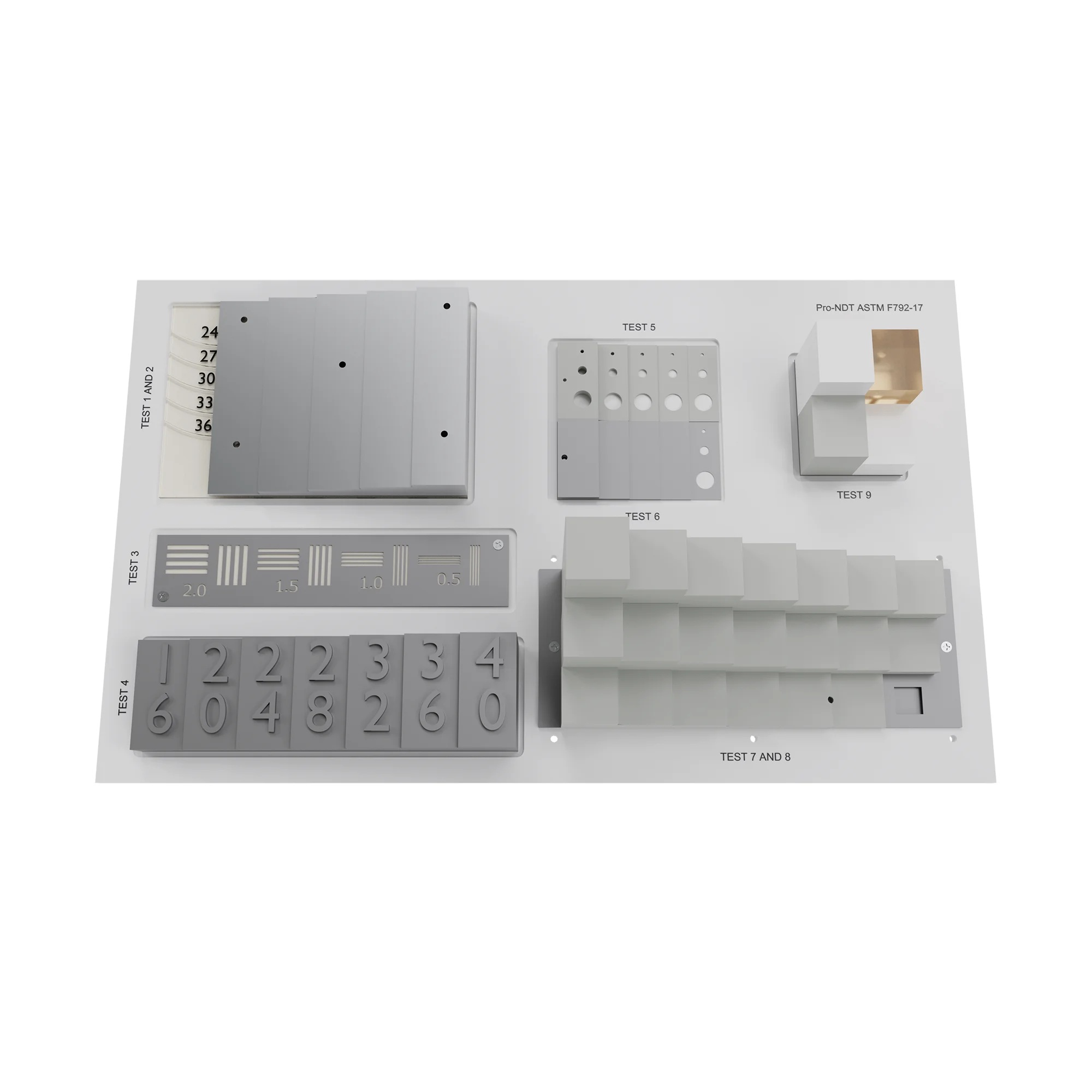

• tool contains following test objects:
  - Test 1 – Wire Display
  - Test 2 – Useful Penetration
  - Test 3 – Spatial Resolution
  - Test 4 – Simple Penetration
  - Test 5 – Thin Organic Imaging
  - Test 6 – Steel Contrast Sensitivity
  - Test 7 – Materials Discrimination
  - Test 8 – Materials Classification
  - Test 9 – Organic Differentiation

• carrying case

Features and Test References

• complies with:
  - ASTM F792-17
• CE marked (declaration of conformity according to ISO/IEC 17050-1)
• the manual provides guidelines for carrying out each test, results assessment and registration
