Pro-NDT DuplexWireIQI D17
D17 Duplex-Wire IQI - Diagnomatic by Pro-Project - 10-105

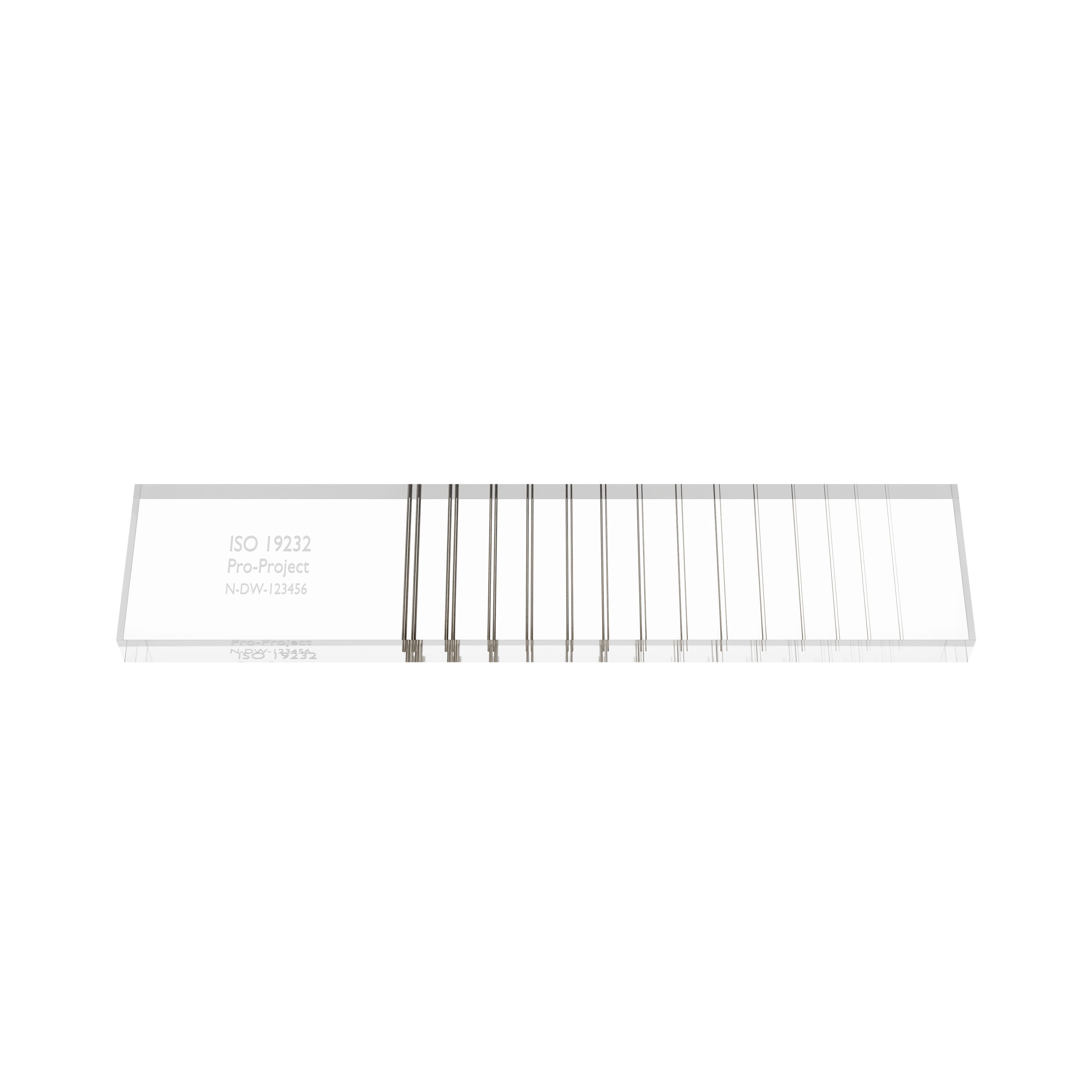

Pro-NDT DuplexWireIQI D17 from Diagnomatic by Pro-Project extends duplex-wire testing through group 17D with platinum wire pairs embedded in PMMA.

Click a photo or illustration to enlarge it.

Models and Ordering

Specifications

• dimensions: 15 x 70 x 4 mm
• 14 groups of wire pairs (from 4D to 17D) embedded in PMMA
• groups 4D - 17D made of platinum
• diameter of wires / spacing between wires ranges from 0.02 to 0.40 mm
• calibration / test certificate according to ASTM E 2002 and ISO 19232-5

Product features:

• complies with:
  - ISO 19232-5
  - EN 462-5
  - ASTM E2002-99 Duplex IQI
• CE marked (declaration of conformity according to ISO/IEC 17050-1)
• the manual provides guidelines for carrying out each test, results assessment and registration
