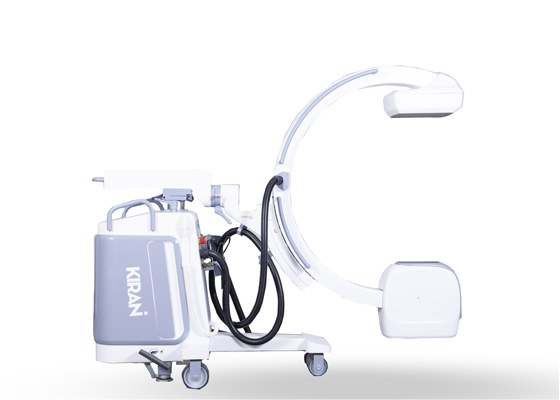

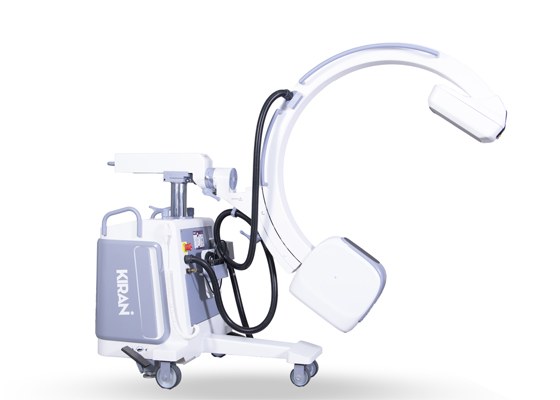

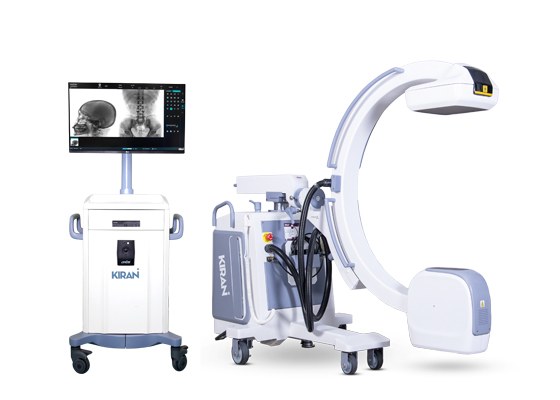

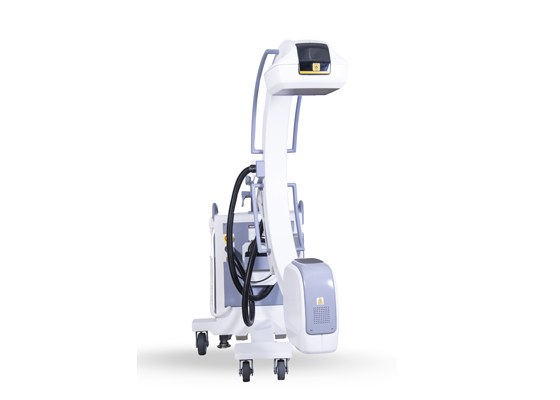

Kiran Flat-Panel Digital C-Arms - Infinity / Elite / Elite Plus
Kiran Infinity, Elite and Elite Plus flat-panel digital C-arms are designed for surgical and interventional imaging, with Digital Subtraction Angiography and road-mapping functions.
- Flat-panel image acquisition.
- Digital Subtraction Angiography and road mapping.
- Touch interface with configurable presets.
- Automatic image optimization and dose-monitoring functions.
| Specification | Details |
|---|---|
| Model / series | Infinity / Elite / Elite Plus |
| Infinity output | 3.5 kW |
| Elite output | 5.0 kW |
| Elite Plus output | 15 kW |
| Imaging resolution choices | 2K x 2K / 1.5K x 1.5K |
| Detector choices | IGZO / amorphous silicon |
| Field-of-view choices | 9 x 9 inches / 12 x 12 inches |
| Free space | 800 mm |
| Immersion depth | 700 mm |
| Orbital movement choices | 140 / 160 degrees |
Technical Specifications
| Key Features | Infinity | Elite | Elite Plus |
|---|---|---|---|
| Output Power | 3.5 kW | 5.0 kW | 15 kW |
| Tube Type | Stationary Anode Tube | Rotating Anode Tube | Rotating Anode Tube |
| Focal Spot | 0.6 mm² & 1.2 mm² / 0.6 mm² & 1.5 mm² | 0.3 mm² & 0.6 mm² | 0.3 mm² & 0.6 mm² |
| Modes Available | Fluoroscopy, Pediatric, Boost, Snapshot & Radiography Mode | Fluoroscopy, Pediatric, Boost, Snapshot & Radiography Mode | Fluoroscopy, Pediatric, Boost, Snapshot & Radiography Mode |
| Imaging Resolution | 2K x 2K / 1.5K x 1.5K | 2K x 2K / 1.5K x 1.5K | 2K x 2K / 1.5K x 1.5K |
| Detector Type | IGZO / Amorphous silicon (a-Si) | IGZO / Amorphous silicon (a-Si) | IGZO / Amorphous silicon (a-Si) |
| Monitor Options* | Dual 19" Single 27" / Single 32" | Dual 19" Single 27" / Single 32" | Dual 19" Single 27" / Single 32" |
| Field of View | 9 inch x 9 inch / 12 inch x 12 inch | 9 inch x 9 inch / 12 inch x 12 inch | 9 inch x 9 inch / 12 inch x 12 inch |
| Free Space | 800 mm | 800 mm | 800 mm |
| Immersion Depth | 700 mm | 700 mm | 700 mm |
| Orbital Movement | 140° / 160° | 140° / 160° | 140° / 160° |
| Image Storage | PC Based Memory – Storage Capacity of more than 1,00,000 Images | PC Based Memory – Storage Capacity of more than 1,00,000 Images | PC Based Memory – Storage Capacity of more than 1,00,000 Images |
| Portability of Image | USB Drive, LAN Connectivity, CD Writer & DICOM | USB Drive, LAN Connectivity, CD Writer & DICOM | USB Drive, LAN Connectivity, CD Writer & DICOM |
Configuration choices
- Dual 19-inch, single 27-inch or single 32-inch monitor configurations, as listed by the manufacturer.

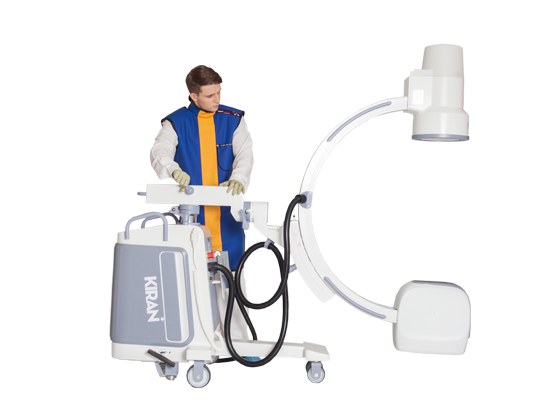

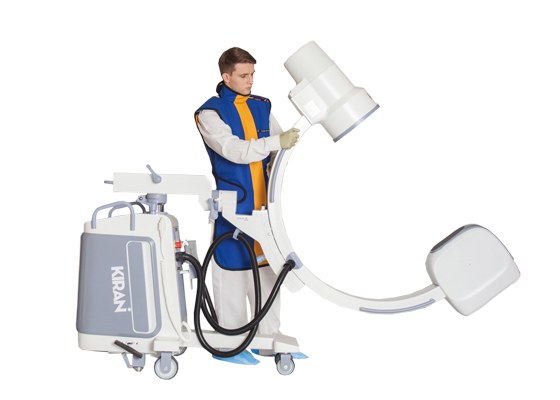

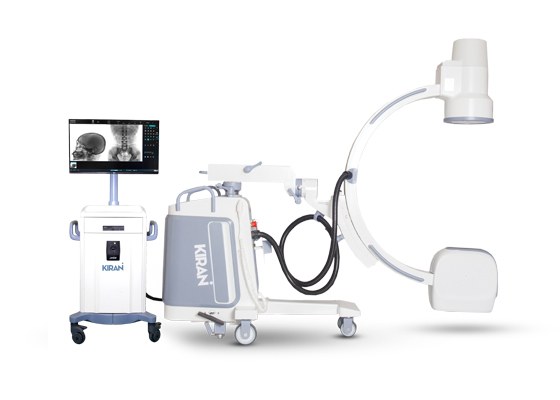

Kiran Image-Intensifier C-Arms - Elite / Infinity
Kiran Elite and Infinity image-intensifier C-arms provide real-time imaging for surgical procedures. The manufacturer lists separate 5.0 kW Elite and 3.5 kW Infinity configurations.
- High-frequency generator.
- Tactile keyboard with configurable presets.
- Digital image storage and image export.
- Elite and Infinity configuration specifications are shown separately.
| Specification | Details |
|---|---|
| Model / series | Elite / Infinity |
| Elite output | 5.0 kW |
| Infinity output | 3.5 kW |
| Imaging resolution | 1K x 1K |
| Field of view | 23 cm / 9 inches |
| Monitor | 32-inch display |
| Free space | 80 cm |
Technical Specifications
| Key Features | Elite 1K x 1K | Infinity – 1K x 1K |
|---|---|---|
| Output Power | 5.0 kW | 3.5 kW |
| Normal Mode Current | 0.6 – 5.5 mA | 0.6 – 4.5 mA |
| Pediatric Mode Current | 0.1 – 2.5 mA | 0.1 – 2.25 mA |
| Boost Mode Current | 0.8 – 12 mA | 0.8 – 8 mA |
| Snapshot Mode Current | 0.8 – 12 mA | 0.8 – 8 mA |
| Radiography Mode Current | 35 – 80 mA | 25 – 70 mA |
| kV | 40 – 120 kV | 40 – 110 kV |
| Imaging Resolution | 1K x 1K | 1K x 1K |
| Monitor | 32” High Resolution | 32” High Resolution |
| Field of View | 23 cm / 9” | 23 cm / 9” |
| Free Space | 80 cm | 80 cm |
| Immersion Depth | 68 cm | 67 cm |
| Orbital Movement | 125° (+90° to -35°) | 125° (+90° to -35°) |
| Image Resolution | ≥2.43 lp/mm | ≥2.6 lp/mm |
| Image Storage | PC Based Memory – Storage depends on Hard Disk Space | PC Based Memory – Storage depends on HD space more than 10,000 images |
| Portability of Image | USB Drive, LAN Connectivity & CD Writer | USB drive, LAN connectivity & CD writer. DICOM – Optional |
Configuration choices
- DICOM is listed as optional for the Infinity configuration.

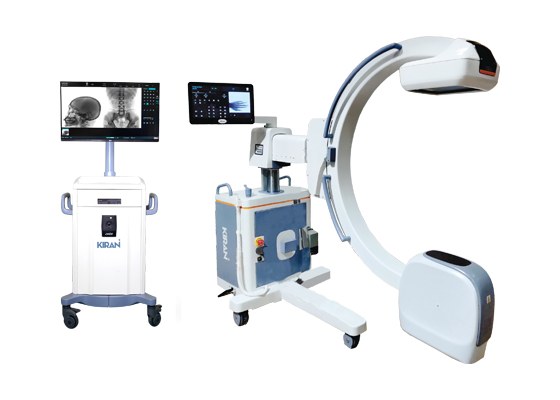

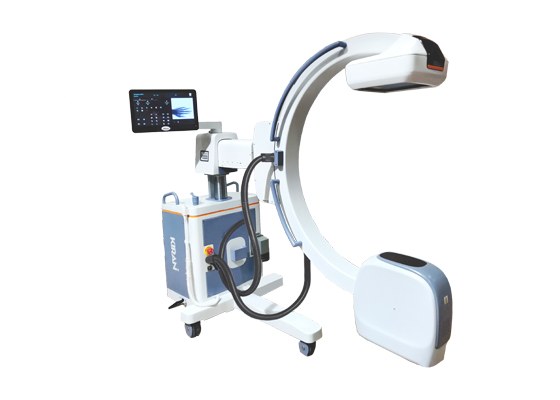

Kiran Motorized Digital C-Arm

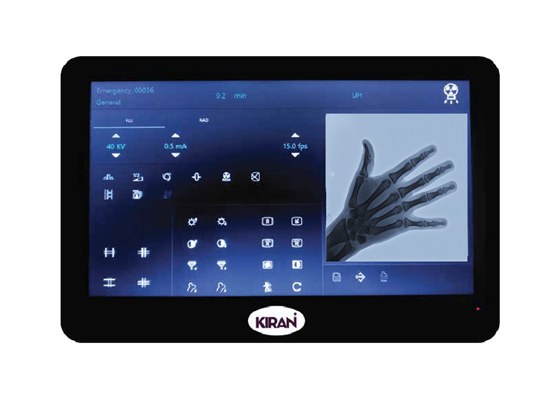

The Kiran Motorized Digital C-Arm is a surgical fluoroscopy system with motorized positioning, a flat-panel detector and a Smart Touch interface for access from the sterile field.
- Motorized longitudinal, lateral and orbital movements.
- Real-time image acquisition and processing.
- Imaging modes include fluoroscopy, pediatric, boost, snapshot and radiography.
- Documented applications include orthopedic, urology, cardiovascular, gastrointestinal and neurosurgical procedures.
| Specification | Details |
|---|---|
| Generator output | 15 kW |
| Tube | Dual-focus rotating-anode X-ray tube |
| Detector | Amorphous silicon with cesium iodide scintillator |
| Imaging resolution | 1.5K x 1.5K |
| Monitor options | Single 27-inch or single 32-inch monitor |
| Free space | 800 mm |
| Immersion depth | 720 mm |
| Orbital movement | 160 degrees (-40 to +120 degrees) |
Technical Specifications
| Key Features | Motorized Digital C-Arm |
|---|---|
| Output Power | 15 kW |
| Tube Type | Dual Focus, Rotating Anode X-Ray Tube. Tube Assembly Aluminium filtration 3.0mmAl |
| Focal Spots | Small Focus: 0.3 mm² , Large Focus: 0.6 mm² |
| Modes Available | Fluoroscopy, Paediatric, Boost, Snapshot & Radiography Mode |
| Imaging Resolution | 1.5K x 1.5K |
| Detector Type | Amorphous silicon, Cesium Iodide Scintillator (CsI:Tl) |
| Monitor Options | Single 27 inch / Single 32 inch |
| Free Space | 800 mm |
| Immersion Depth | 720 mm |
| Orbital Movement | 160° (-40°, +120°) |
| Image Storage | PC based Memory - Storage Capacity of more than 1,00,000 Images |
| Portability of Images | USB Drive, LAN Connectivity, CD Writer & DICOM |
Configuration choices
- Single 27-inch or single 32-inch monitor configurations.
