AADCO One Panel DR-300 X-Ray System
AADCO Medical

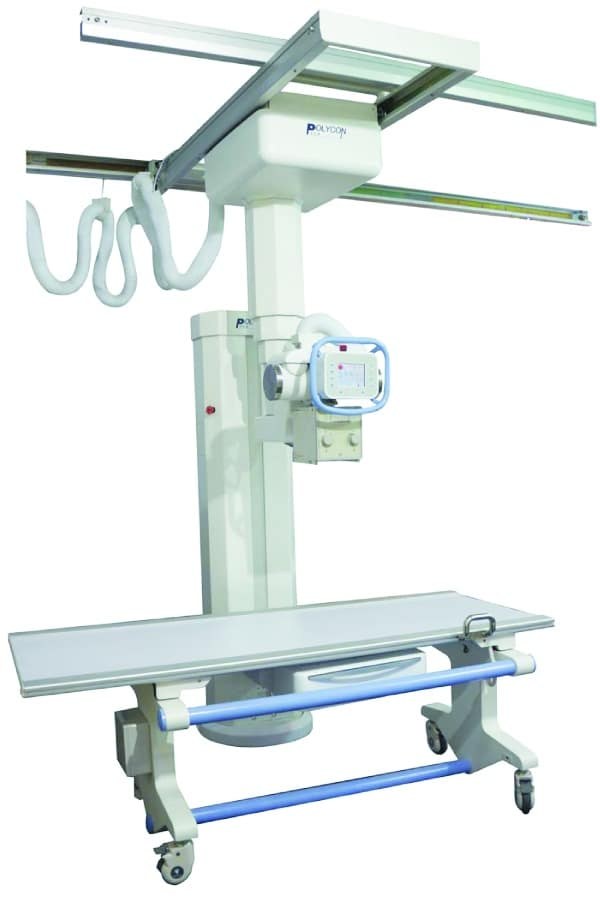

The DR-300 single-panel radiography system combines the DRC-2200 overhead tube system, T-300 carbon-fiber mobile float-top table and a vertical bucky.

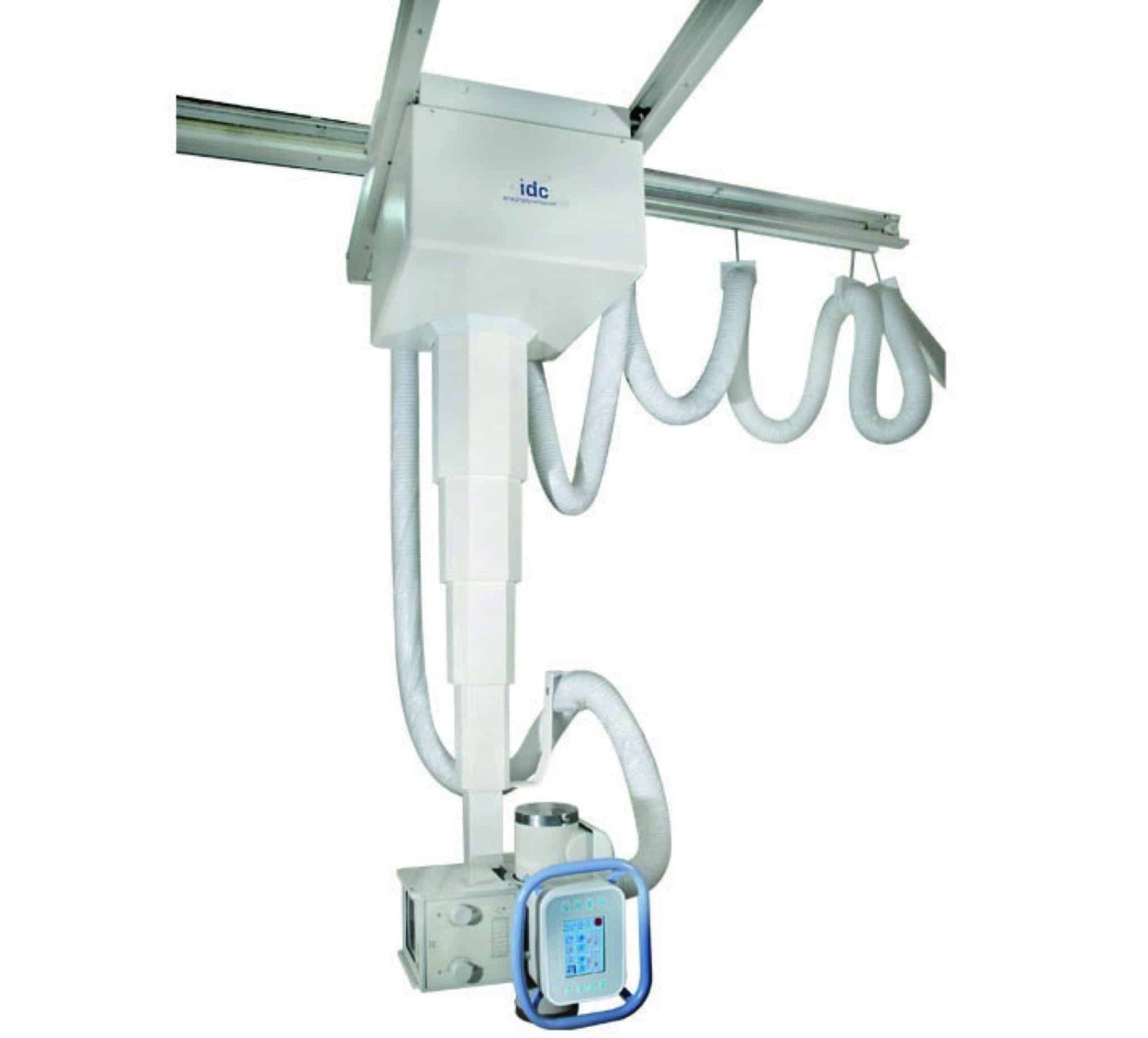

- Motorized three-way tube-stand movement with manual/motorized selection and single-button positioning.
- Touchscreen controls and motorized servo tracking with the wall bucky.

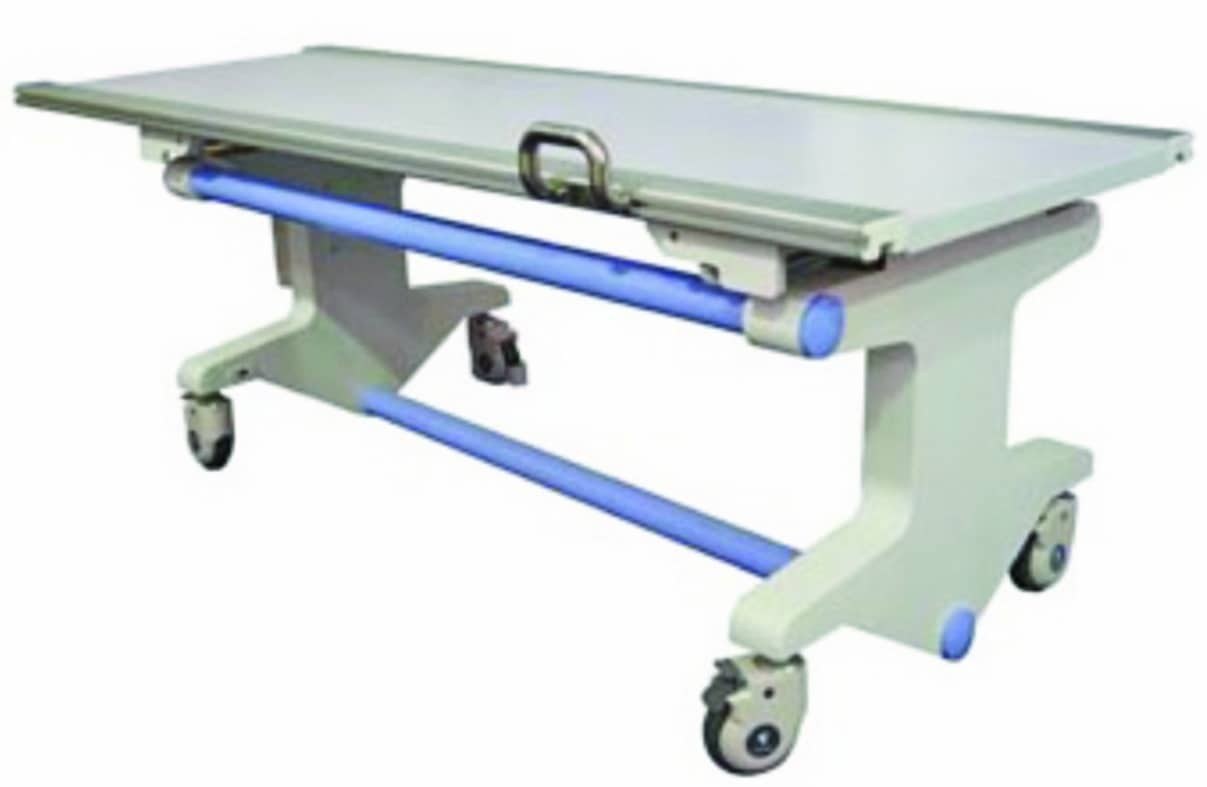

- T-300 battery-operated mobile table provides a four-way float top and locking front casters.

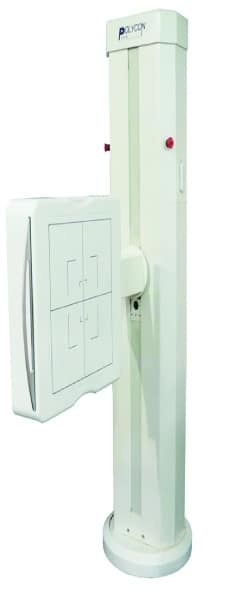

- The manufacturer describes a motorized DRS-1800 wall stand with positioning and tracking controls.
| Item / specification | Details |
|---|---|
| Model / item number | DR-300 |
| DRC-2200 longitudinal rail / travel | 3800 mm / 2950 mm |
| DRC-2200 transverse bridge / travel | 2500 mm / 1600 mm |
| DRC-2200 supply | 110/220 VAC; 50-60 Hz; 5 A |
| T-300 evenly distributed load capacity | 594 lb |
| T-300 tabletop | 31.5 inches wide x 82.6 inches long |
| T-300 longitudinal travel | 31.5 inches (800 mm) |
| T-300 transverse travel | 11.8 inches (300 mm) |
| DRS-1800 carrying capacity | 90 kg |
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
