AADCO Motorized U-Arm DR System - DR-200
AADCO Medical

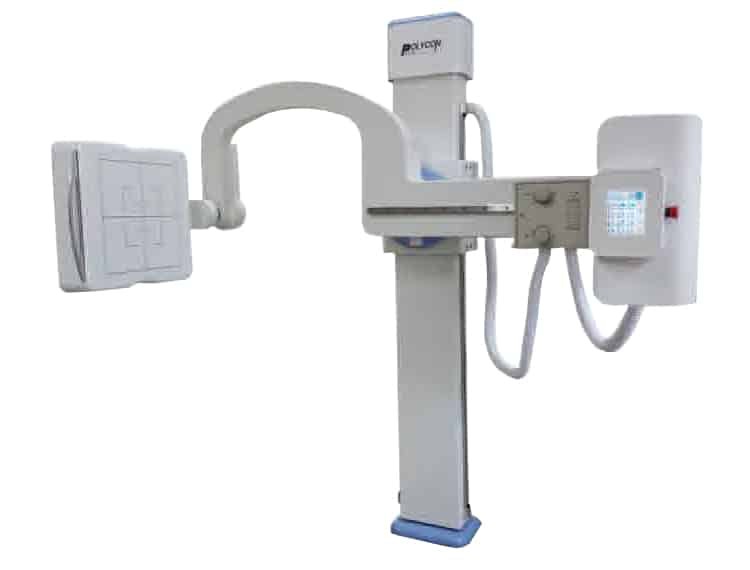

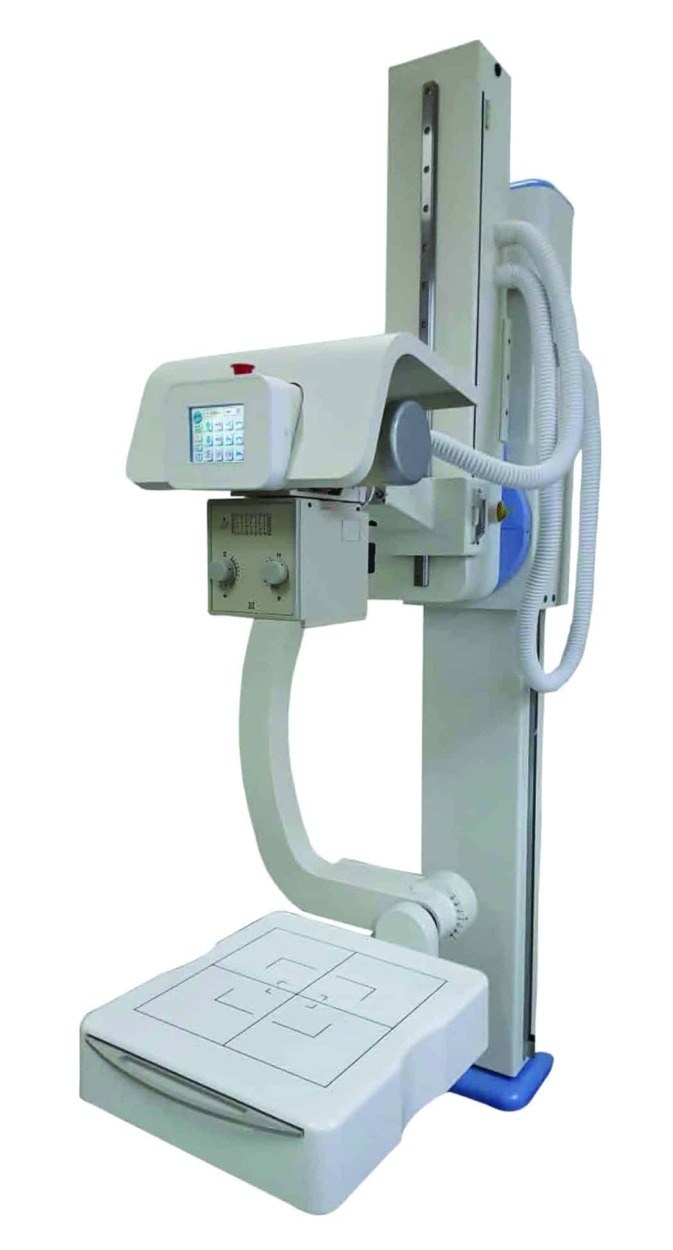

The DR-200 integrates a motorized U-arm assembly, high-frequency generator, digital flat panel, workstation software and an imaging table for digital radiography.
- A 6-inch color touchscreen and 12-key wireless pad control positioning.
- Single-button positioning and seven positioning programs are described.
- Anti-collision control uses laser beams and pressure sensors.
- Optional vertical auto-stitching, automatic collimator tracking and a 10-inch touchscreen/APR workstation configuration are listed.
| Item / specification | Details |
|---|---|
| Model / item number | DR-200 |
| Generator configurations | 50 / 65 kW, as listed by the manufacturer |
| Vertical travel | 1290 mm |
| Arm rotation | +120 to -30 degrees |
| Detector angulation | +45 degrees clockwise / -45 degrees counterclockwise |
| Motorized SID range | 1000-1800 mm |
| Dimensions, manufacturer listed | 2045 x 2300 x 770 mm |
| Net weight | 320 kg |
| Electrical supply | 110/220 VAC; 50-60 Hz; 10 A |
| Minimum room ceiling height | 2700 mm |
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
