AADCO Lightning Plus Instant DR Solution - DR-800
AADCO Medical
Lightning Plus DR-800 combines a wireless 17 × 17-inch gadolinium oxide DR panel, with cesium iodide available as an option, and a 15.6-inch touchscreen laptop workstation. The manufacturer’s system overview lists a 6 lb panel.
- For radiographic-room and portable X-ray workflows using photo-timing or conventional radiographic techniques.
- Includes image-acquisition and processing software with DICOM compatibility.
| Item / specification | Details |
|---|---|
| Model / item number | DR-800 |

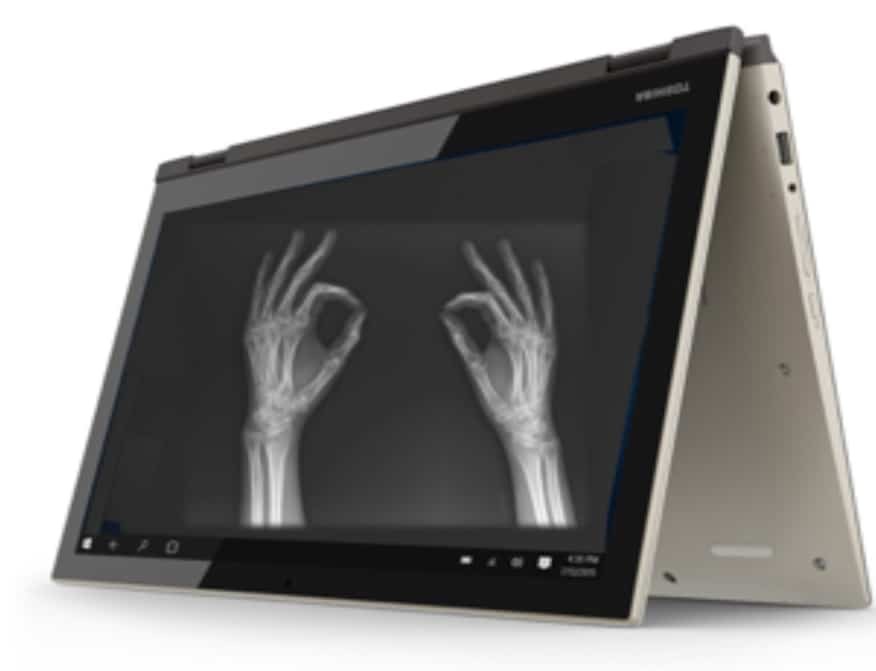

Hardware Workstation
| Parameter | Specification |
|---|---|
| Software | BladeView |
| Display | 15.6-inch touchscreen; maximum resolution 1920 × 1080 |
| Processor | 2.5 GHz Intel Core i7 |
| Memory | 8 GB DDR3 SDRAM |
| Storage | 256 GB SSD |
| Graphics | Intel integrated graphics; Intel chipset |
| Wireless | Integrated; 802.11 A/C |
| Average battery life | 8 hours |

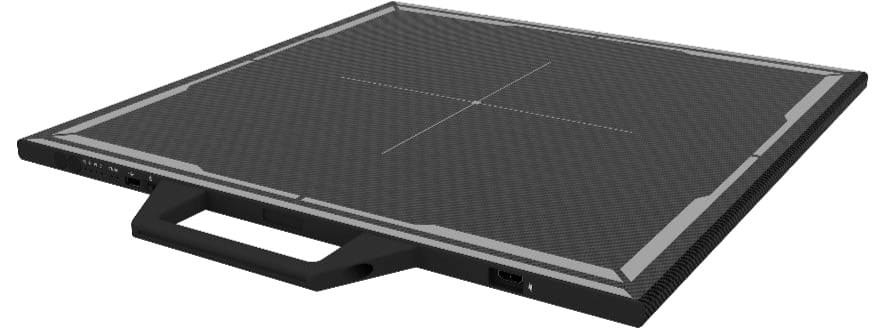

Flat Panel
| Parameter | Specification |
|---|---|
| Panel | 17 × 17-inch cesium iodide wireless DR imaging panel |
| Panel weight | 6.3 lb |
BladeView Software
- Acquisition software with PACS and image-management connectivity.
- Touchscreen two-click image-acquisition workflow.
- Digital radiographic acquisition and stitching.
- Emergency, manual-entry and worklist patient workflows.
- Integrated generator and collimator control.
- Protocol-defined image enhancement.
- DICOM Store, Print, Media Creation and Worklist.
- Control-station monitor video output.
- Review image processing and multiscale image processing.
- Automatic RAD code import, zoom, roam and magnifying glass.
- Flip, rotate, window/level adjustment, invert, text insertion and measurement package.
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
