AADCO DR-400 Two Panel DR System
AADCO Medical
The DR-400 two-panel radiography system combines the DRC-2200 overhead X-ray tube system, T-220 four-way float-top carbon-fiber table and DRS-1800 vertical bucky in a traditional room arrangement.
- Motorized and manual positioning with a 6-inch color touchscreen and 12-key wireless control.
- Single-button positioning and servo tracking are described for table and chest examinations.
- Optional vertical auto-stitching, collimator tracking and tomosynthesis.
| Item / specification | Details |
|---|---|
| Model / item number | DR-400 |

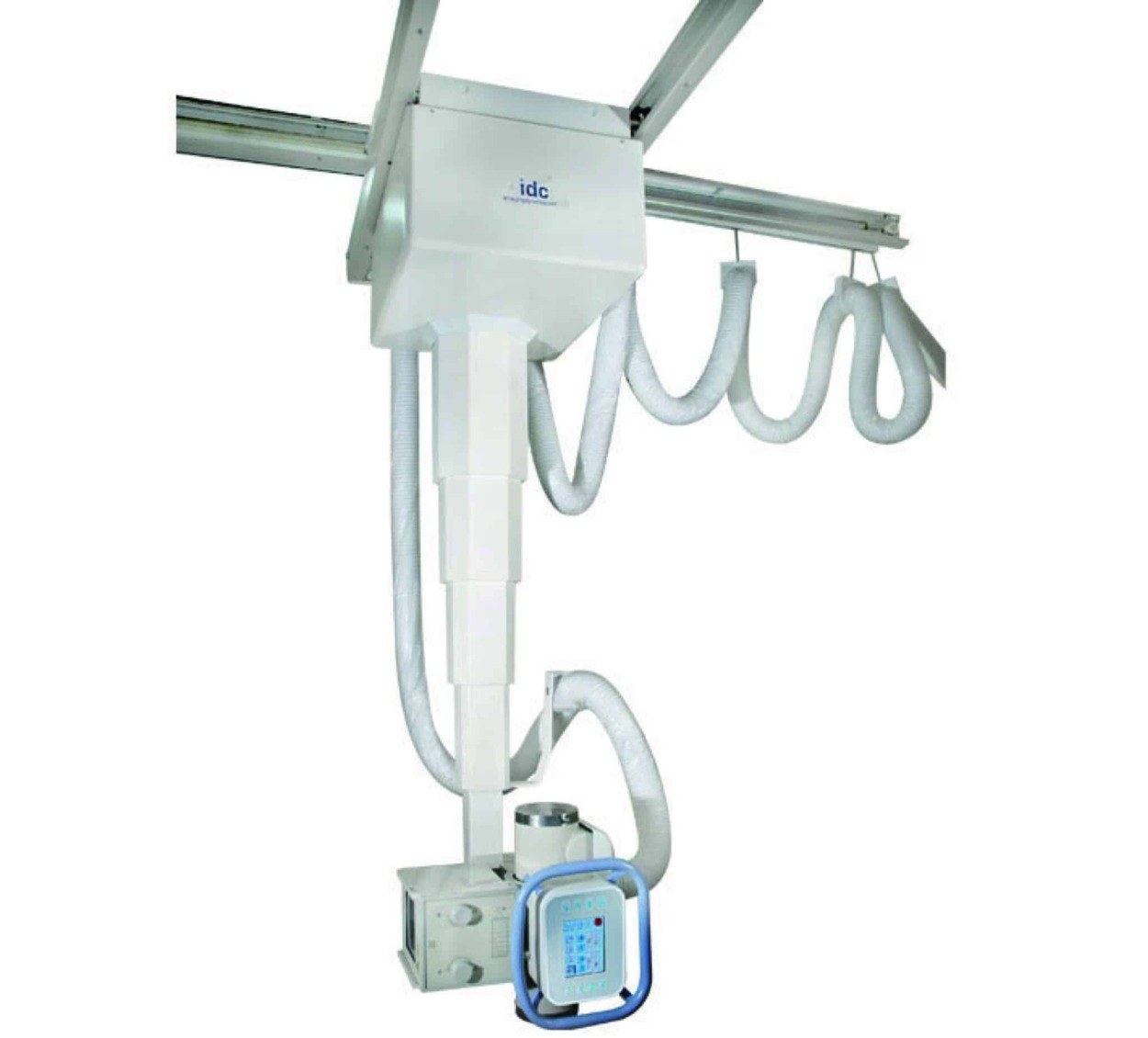

DRC-2200 Tube Stand
| Parameter | Specification |
|---|---|
| Manual movement | 4.4 lb (2 kg) |
| Controls | 12-key wireless control; 6-inch color touchscreen |
| Tube movement | Four-way movement with motorized tube rotation and angulation servo tracking with the detector |
| Vertical / axis control | Manual/motorized (option) vertical; axis (yaw) 360° |
| Horizontal-axis rotation (roll) | +140° (optional) |
| Servo tracking with S1800 wall stand | 1500 mm vertical travel |
| Longitudinal rail length / travel | 3800 mm / 2950 mm |
| Transverse bridge length / travel | 2500 mm / 1600 mm |
| System weight | 485 lb (220 kg) |
| Power requirements | 110/220 VAC; 50–60 Hz; 5 A |
| Telescopic carriage dimensions (L × W × H) | 713 × 620 × 980 mm |
| Position integration | Acquisition-console movement integration in six positions; anatomy selection from study menu |

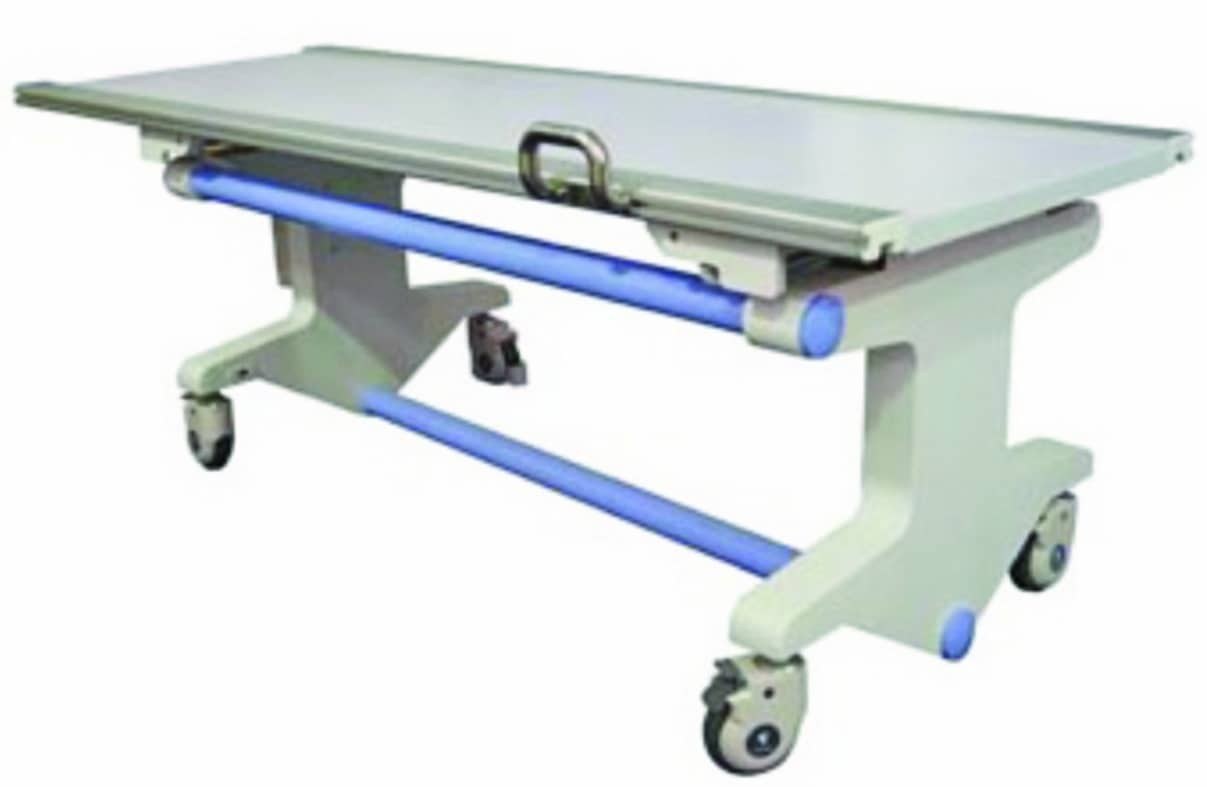

T-220 Table
| Parameter | Specification |
|---|---|
| Tabletop | Carbon fiber; four-way float top |
| Height adjustment | Motorized |
| Length / width | 2400 mm / 796 mm |
| Transverse / longitudinal travel | 300 mm / 1020 mm |
| Table height | 660 mm |
| Vertical travel | 300 mm |
| Tracking | Vertical tracking with DRC-2200 tube stand |
| Table bucky tracking | 500 mm longitudinal tracking with ceiling-mounted tube system |
| Table weight | 150 kg |
| Patient weight capacity | 250 kg |

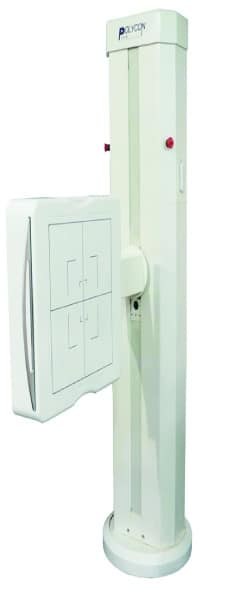

DRS-1800 Bucky Stand
| Parameter | Specification |
|---|---|
| Type | Motorized wall stand |
| Display | 6-inch TFT touchscreen |
| Positioning | Single-button chest or table positioning; auto-positioning and auto-tracking |
| Control | 12-key wireless control |
| Vertical travel | 1350 mm |
| Maximum carrying capacity | 90 kg |
| DH rotation | 180° (+90° / −90°) |
| Manual swing | +90° / −90° with positive lock (optional) |
| Stand weight | 496 lb (225 kg) |
| Dimensions (L × W × H) | 595 × 322 × 2106 mm |
