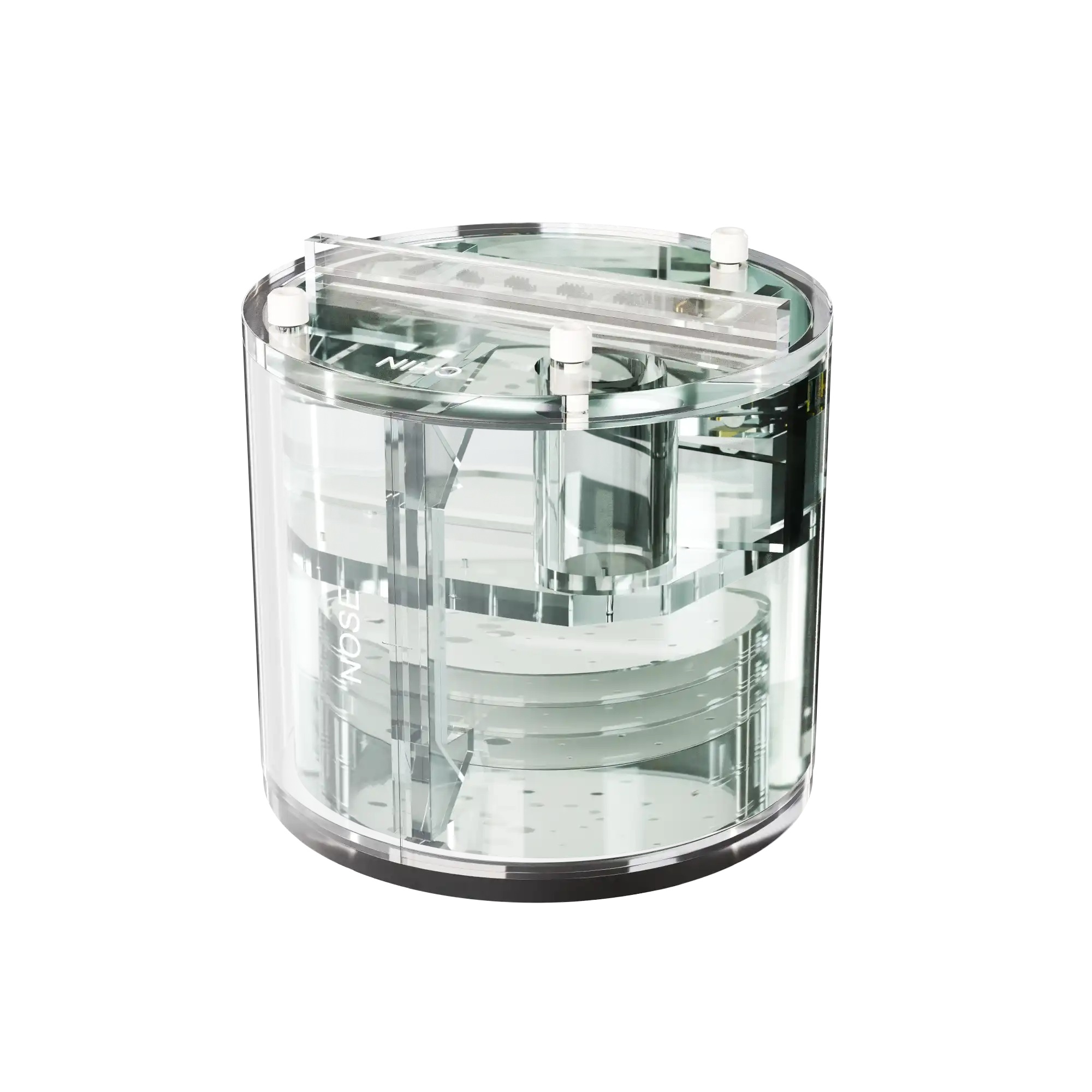

Pro-MRI ACR Large
Large MRI Accreditation Phantom - Diagnomatic by Pro-Project - 09-302

Pro-MRI ACR Large from Diagnomatic by Pro-Project provides the large-format MRI phantom configuration for image-quality and geometric accuracy checks.

Click a photo or illustration to enlarge it.

Models and Ordering

It can be used to measure

• geometric distortion
• spatial resolution
• slice thickness and position
• interslice Gap
• image bandwidth
• low contrast detectability
• image uniformity
• signal-to-noise ratio (SNR)
• physical and electronic slice offset
• point of reference
• bandwidth: water-fat shift

Specifications

• outside cylinder diameter: 203 mm (8'')
• outside cylinder height: 165 mm
• inside cylinder diameter: 190 mm (7,5'')
• inside cylinder height: 150 mm
• the phantom is filled with 10 millimolar (mmol) nickel chloride solution containing 0.45% by weight sodium chloride
• the outside of each phantom has the words “NOSE” and “CHIN” etched into it as an aid to orienting the phantom for scanning, as if it were a head

resolution insert

• three matrices of holes, diameters: 0.9, 1.0 and 1.1 mm
• spaces between the holes are equal to hole diameters
• two small containers with water and fat for water-fat shift evaluation

slice thickness insert

• 1 mm wide counter-descending slits on both sides
• slits form two ramps descending at 1:10

geometric distortion insert

• 3x3 holes array, 60 mm spacing
• 1.5 mm diameter
• 10 mm thick

low contrast insert

• partial volume contribution of these sheets and filling solution produce contrasts: 1.4, 2.5, 3.6, and 5.1%
• each disc contains 10 groups of 3 holes arranged in spokes
• each spoke has the same diameter
• diameters range from 7.0 to 1.5 mm

slice position accuracy

• one set of paired 45° wedges. The distance between the intersection of the wedges is 100 mm

Accessories

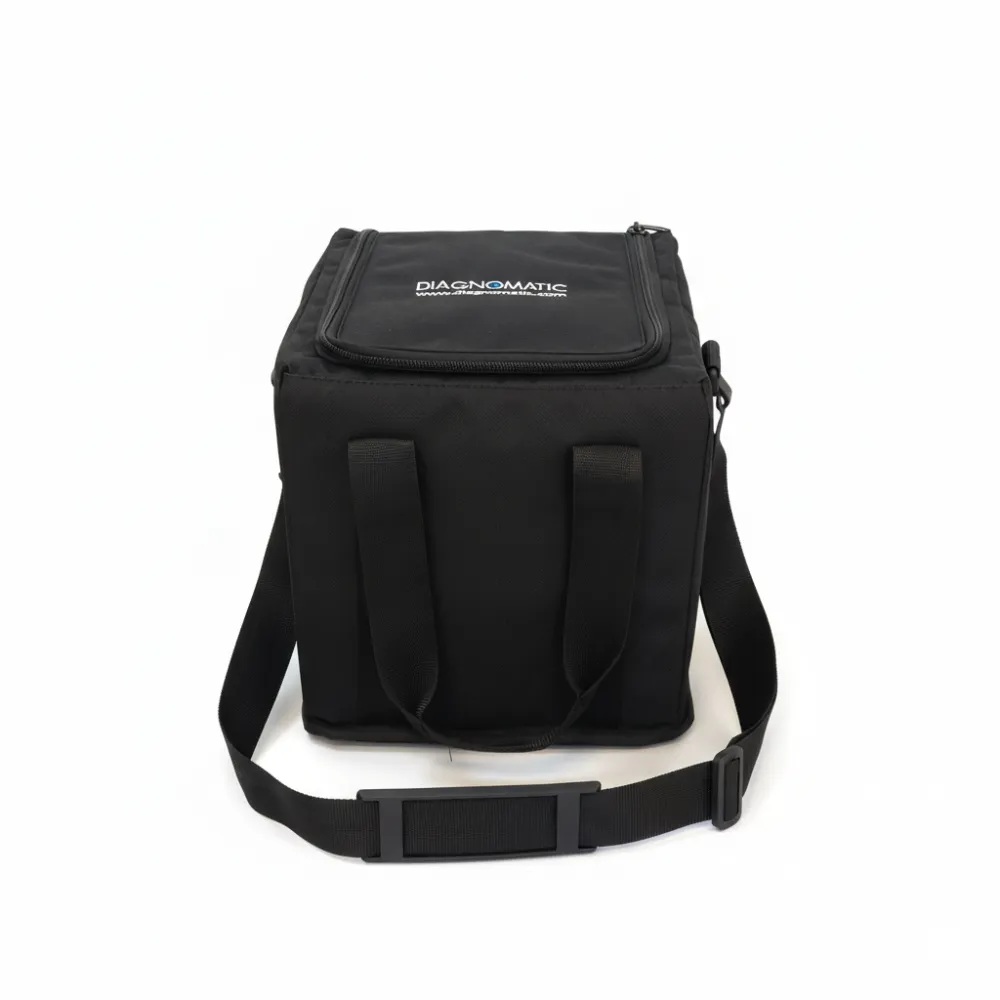

• MR-safe carrying bag

Optional accessories

• 2-axis spirit level (09-104)

Features and Test References

• complies with:
  - Large and Medium Phantom Test Guidance for the MRI Accreditation Program, 2022 (ACR)
  - MRI Quality Control Manual, 2015 (ACR)
  - AAPM Rep. 100 “Acceptance & Quality Assurance procedures for MRI facilities”, 2010
• ACR-Approved
• CE marked
• Includes a manual covering the tests, result evaluation and recording.

Pro-MRI ACR Phantom Demonstration
