AADCO MRI Fiber-Optic Laryngoscope Kits - NF-241 / NF-242 / NF-243 / NF-244 / NF-245 / NF-246
AADCO Medical
AADCO models and product details
- MRI Fiber-Optic Laryngoscope Kits - NF-241 / NF-242 / NF-243 / NF-244 / NF-245 / NF-246
- Laryngoscope Handle - NF-220
- Lithium Power Pack for Laryngoscope - NF-250
- MRI-Safe® Fiber Optic Laryngoscope Blades

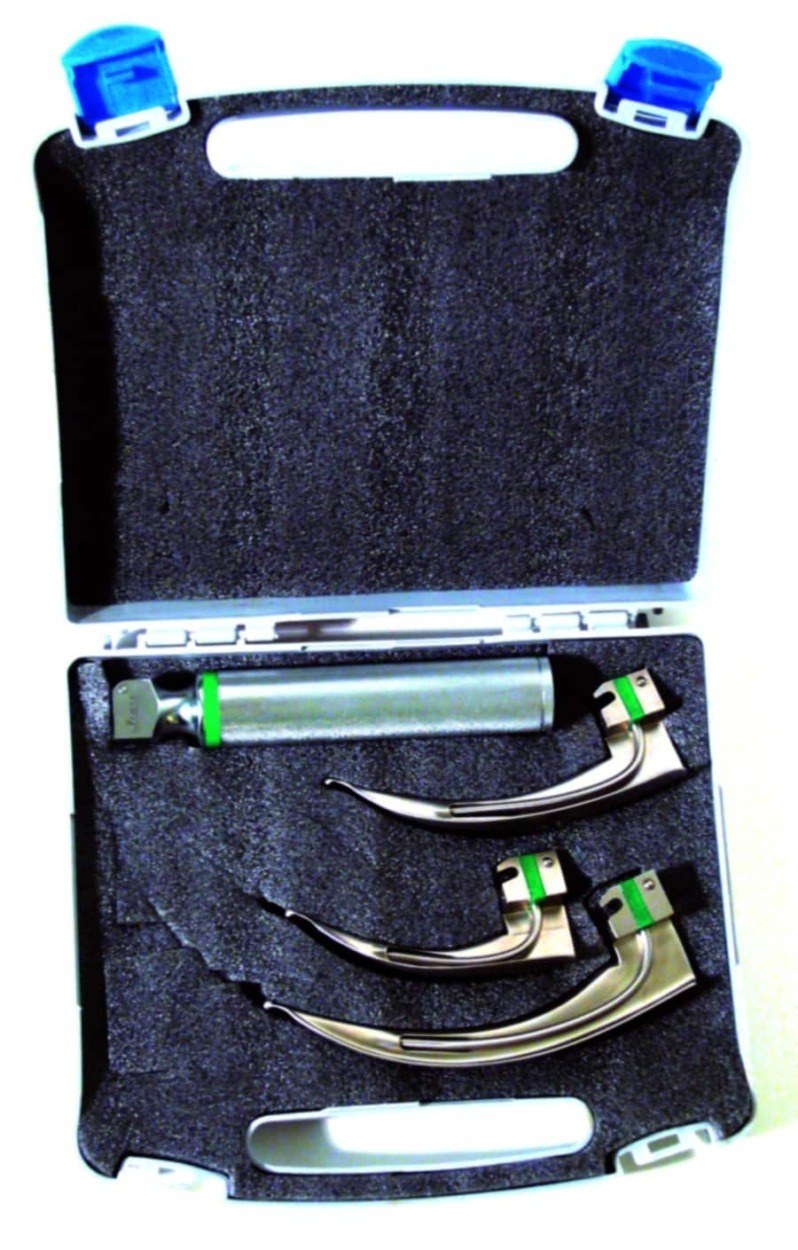

AADCO fiber-optic laryngoscope kits provide a handle, blades and a case in several intubation-set configurations.
- High-intensity halogen illumination is delivered through fiber optics.
- Manufacturer states MR Conditional to 3 Tesla.
- Handle, blade and power-pack ordering options are kept with the kits below.
| Item / specification | Details |
|---|---|
| Model / item numbers | NF-241 / NF-242 / NF-243 / NF-244 / NF-245 / NF-246 |
| Kit part number | Included blades | Blade lengths |
|---|---|---|
| NF-246 | 3 McIntosh blades | 90, 110, 135 mm |
| NF-241 | 4 McIntosh blades | 75, 90, 110, 135 mm |
| NF-242 | 5 McIntosh blades | 55, 75, 90, 110, 135 mm |
| NF-243 | 5 Miller blades | 55, 80, 130, 170, 180 mm |
| NF-245 | 4 Miller blades | 80, 130, 170, 180 mm |
| NF-244 | 3 Miller blades | 130, 170, 180 mm |
Laryngoscope Handle - NF-220
NF-220 is the separately offered laryngoscope handle.
| Item / specification | Details |
|---|---|
| Model / item number | NF-220 |

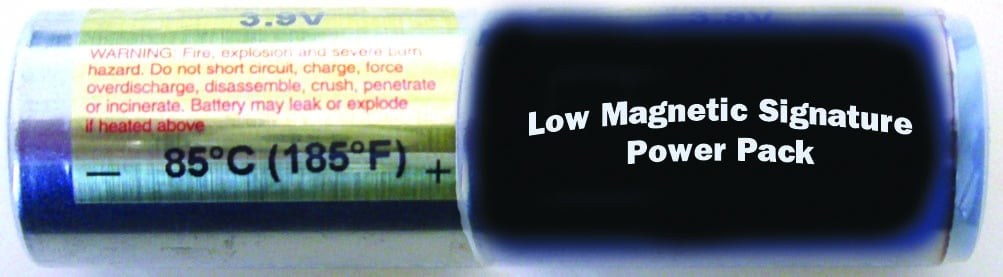

Lithium Power Pack for Laryngoscope - NF-250
NF-250 is a low-magnetic-signature lithium power pack for the laryngoscope.
| Item / specification | Details |
|---|---|
| Model / item number | NF-250 |
MRI-Safe® Fiber Optic Laryngoscope Blades
Replacement and separately orderable blades are offered for the fiber-optic laryngoscope family.
- Wisconsin, Miller, English McIntosh and American McIntosh blade options are listed below.
| Blade part number | Blade style / size |
|---|---|
| NF-221 | Wisconsin 4 |
| NF-238 | Wisconsin 3 |
| NF-222 | Wisconsin 2 |
| NF-223 | Miller 4 |
| NF-224 | Miller 3 |
| NF-225 | Miller 2 |
| NF-227 | Miller 1 |
| NF-226 | Miller 0 |
| NF-228 | English McIntosh 4 |
| NF-229 | English McIntosh 3 |
| NF-230 | English McIntosh 2 |
| NF-231 | English McIntosh 1 |
| NF-232 | American McIntosh 4 |
| NF-234 | American McIntosh 3 |
| NF-235 | American McIntosh 2 |
| NF-236 | American McIntosh 1 |
| NF-237 | American McIntosh 0 |
