ACR MRI Phantom - ACR-PH1 - ACR-PHE - ACR-PHM
The ACR MRI Phantom is an 8" (203.2 mm) diameter cylinder, 6.82" (173.40 mm) tall with various fixtures inside, including a grid, cylinders, and other points of interest. Marked with reference points for nose and chin. The Phantom is approved by the American College of Radiology and is compatible with the ACR Phantom Cradles.
Features:- Approved by American College of Radiology and for Joint Commission Accreditation use

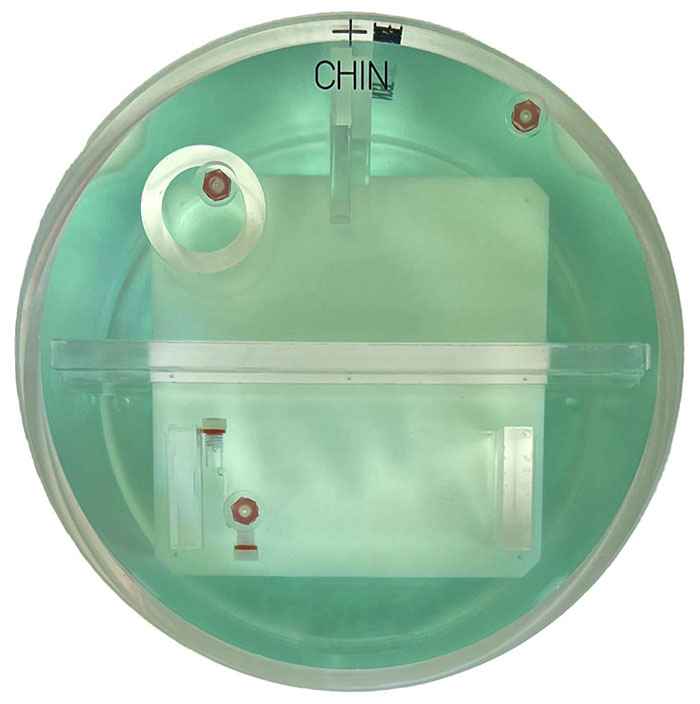

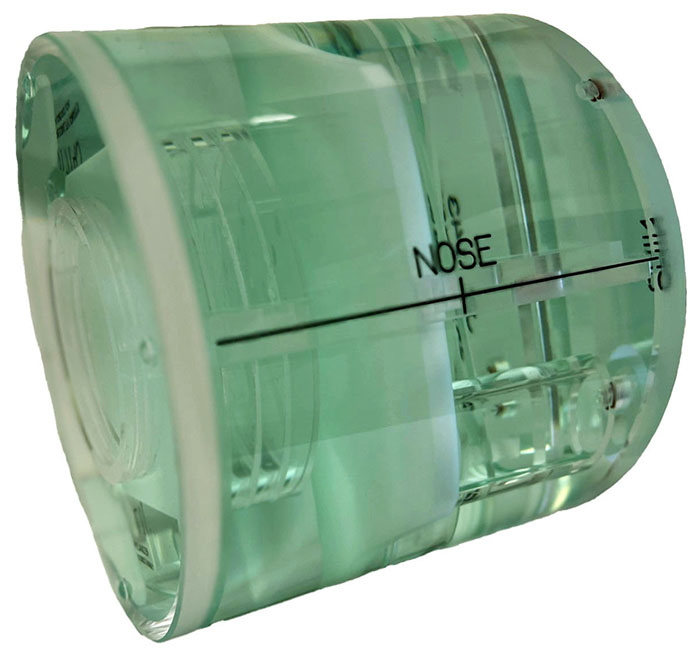

- Reference points for nose and chin
- Compatible with all of our Phantom Cradles
- Includes small all plastic level
|

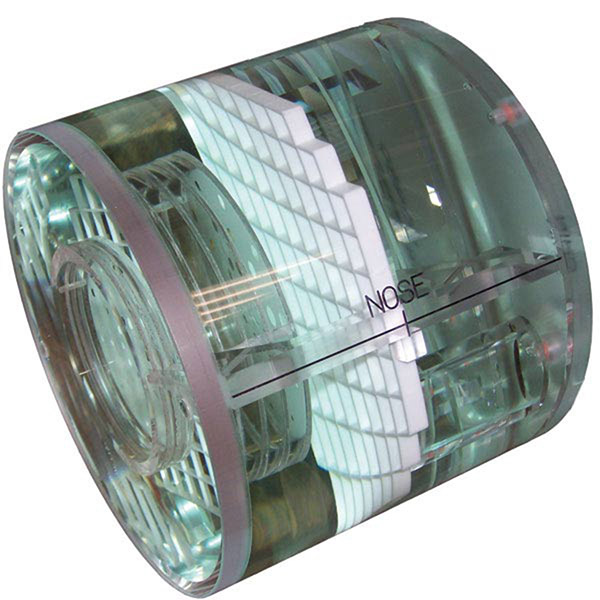

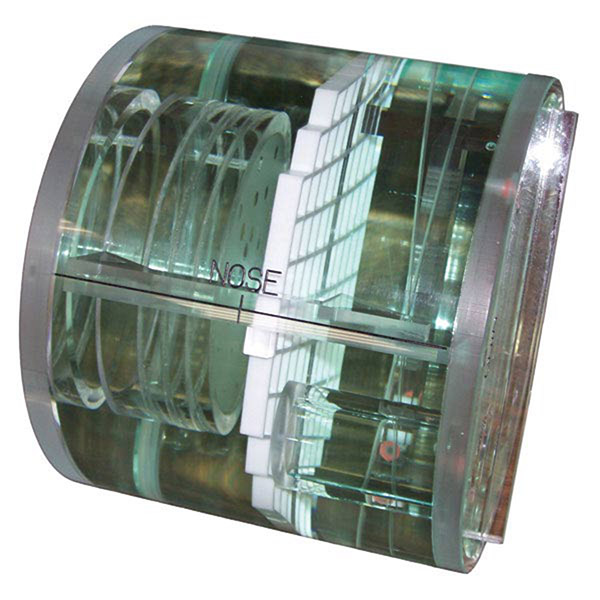

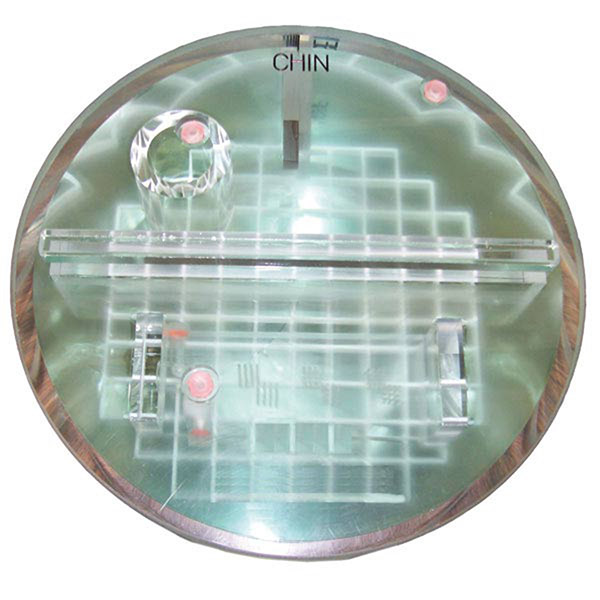

Old pictures, old component.
|
|

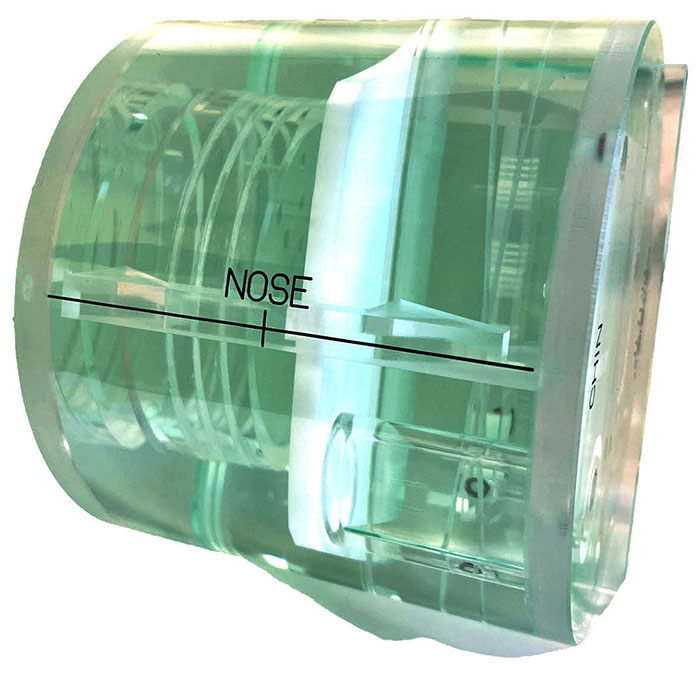

| New pictures, new component, same optional case. (ACR Approved) | ||
|
|
|
| Models and Ordering | |
| Item | Description |
| ACR-PH1 | LARGE - MRI Phantom with level. For whole body MRI machines |
| ACR-PHM | MEDIUM - MRI Phantom |
| ACR-PHE | SMALL - MRI Phantom with level. For extremity MRI machines |

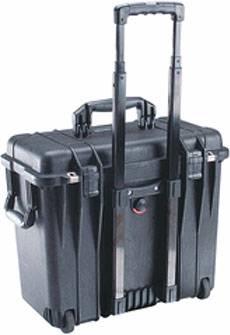

| ACR-PH1 CASE | Hard side storage case for the Large MRI Phantom |
| ACR-PHM CASE | Hard side storage case for the Medium MRI Phantom |
| ACR-PHE CASE | Hard side storage case for the Small MRI Phantom |
ACR MRI Phantom Cradle
Portal Medical Group has offered a quick, easy, and accurate solution to positioning the ACR Phantom since 2002. Our cradles allow you to accurately and repeatedly position your Phantom at isocenter for your weekly QC scans.
Each of our cradles are designed to fit the specific head coils for GE Healthcare, Siemens, Philips, Hitachi, and Toshiba scanners.

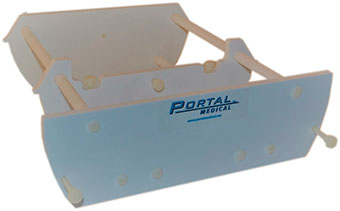

GE103 ACR Phantom Cradle |

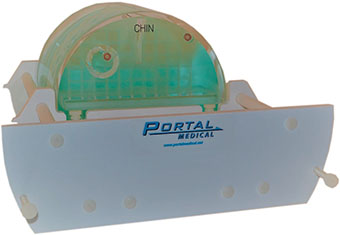

GE103 with Phantom |

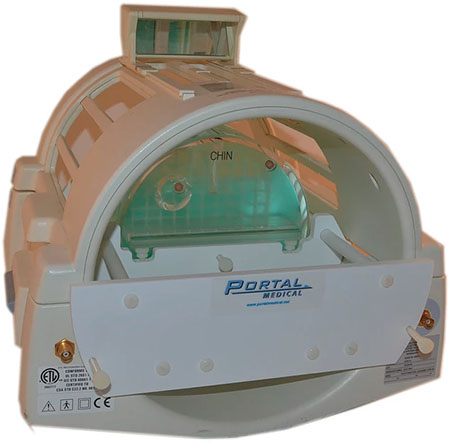

GE103 in Split Head Coil |
|

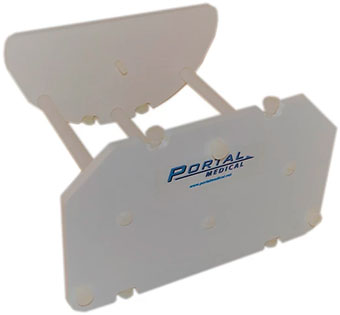

SM103 ACR Phantom Cradle |

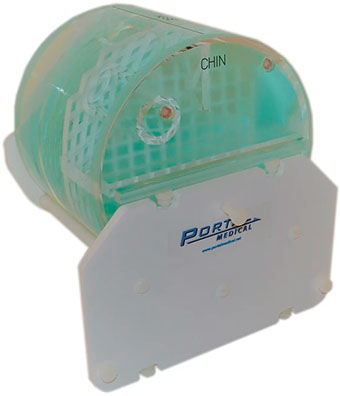

SM103 with Phantom |

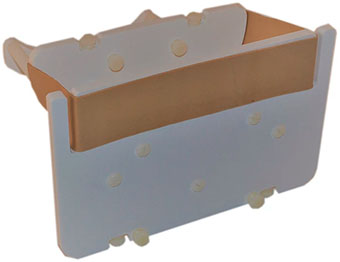

SM104A ACR Phantom Cradle |

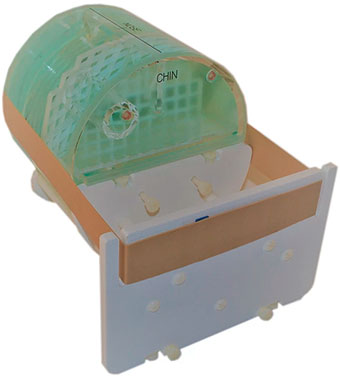

SM104A with Phantom |

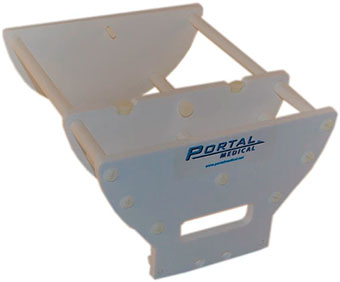

P301 ACR Phantom Cradle |

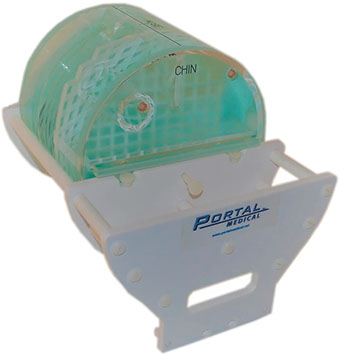

P301 with Phantom |
| Models and Ordering | |||
| Manufacturer | Item Number | Description | Phantom Used with Cradle |
| Phillips | P301 | Philips dStream T/R Head Coil | Large Phantom |
| P301-M | Philips dStream T/R Head Coil | Medium Phantom | |
| P301 | Philips D Stream TR Head Coil | Large Phantom | |
| P301-M | Philips D Stream TR Head Coil | Medium Phantom | |
| P401 | Philips dStream Head/Spine Coil | Large Phantom | |
| P401-M | Philips dStream Head/Spine Coil | Medium Phantom | |
| GE104 | Philips 8 Channel Head Coil | Large Phantom | |
| GE104-M | Philips 8 Channel Head Coil | Medium Phantom | |
| P501 | 4 Channel 1.5T Flat Base Philips Electra Unity | Large Phantom | |
| P501-M | 4 Channel 1.5T Flat Base Philips Electra Unity | Medium Phantom | |
| GE | GE602-M | GE 48 Channel Head Coil | Medium Phantom |
| GE105 | GE 32 Channel Head Coil | Large Phantom | |
| GE105-M | GE 32 Channel Head Coil | Medium Phantom | |
| GE104 | GE 8 Channel Head Coil | Large Phantom | |
| GE104-M | GE 8 Channel Head Coil | Medium Phantom | |
| GE103 | GE Split Head Coil | Large Phantom | |
| GE103-M | GE Split Head Coil | Medium Phantom | |
| GE101 | GE Quadrature Head Coil | Large Phantom | |
| GE101-M | GE Quadrature Head Coil | Medium Phantom | |
| GE601-M | HNU | Medium Phantom | |
| GE601-M | HNS | Medium Phantom | |
| Seimens | SM104 | Siemens Head/neck 20 Matrix Coil | Large Phantom |
| SM104-M | Siemens Head/neck 20 Matrix Coil | Medium Phantom | |
| SM103 | Siemens Head Matrix Coil | Large Phantom | |
| SM103-M | Siemens Head Matrix Coil | Medium Phantom | |
| SM105 | SIEMENS Tx/Rx head MRI Coil | Large Phantom | |
| SM105-M | SIEMENS Tx/Rx head MRI Coil | Medium Phantom | |
| GE104 | Siemens 8 Channel Head Coil | Large Phantom | |
| GE104-M | Siemens 8 Channel Head Coil | Medium Phantom | |
| Fuji (fka Hitachi) | H101 | Hitachi Multiple Array Head Coil | Large Phantom |
| H101-M | Hitachi Multiple Array Head Coil | Medium Phantom | |
| H102 | Hitachi 5 Hitachi Posterior Head Coil | Large Phantom | H102-M | Hitachi 5 Hitachi Posterior Head Coil | Medium Phantom |
| H103 | Hitachi 5 Channel Rapid Head Coil | Large Phantom | |
| H103-M | Hitachi 5 Channel Rapid Head Coil | Medium Phantom | |
| GE104 | 1.5 MA Head Coil | Large Phantom | |
| GE104-M | 1.5 MA Head Coil | Medium Phantom | |
|
Cannon (fka Toshiba) Cradles made for Cannon are in the process of being re-engineered. If you would like to be notified when the project is complete please let us know. |
T101 | Cannon (fka Toshiba) HD Head Coil | Large Phantom |
| T101-M | Cannon (fka Toshiba) HD Head Coil | Medium Phantom | |
| T102 | Cannon (fka Toshiba) Atlas Head Coil | Large Phantom | |
| T102-M | Cannon (fka Toshiba) Atlas Head Coil | Medium Phantom | |
| T103 | Cannon (fka Toshiba) Octave Head Coil | Large Phantom | |
| T103-M | Cannon (fka Toshiba) Octave Head Coil | Medium Phantom | |
| * - Requires a band to secure the Phantom to the Cradle | |||
