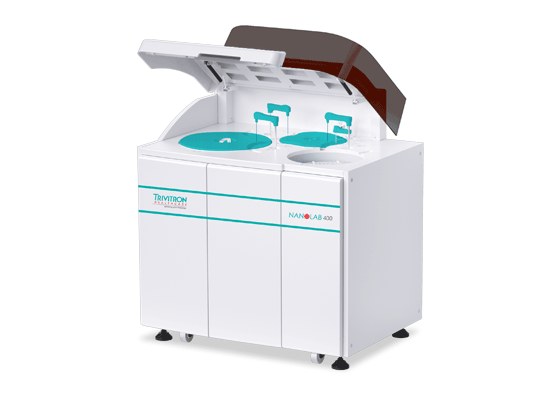

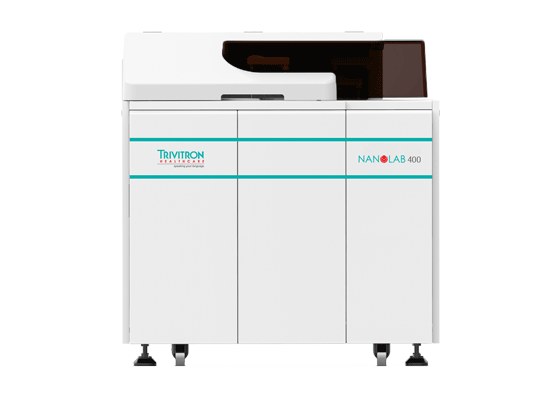

Nanolab 400
Trivitron Healthcare
Nanolab 400 is a fully automated clinical chemistry analyzer with 120 sample positions, 90 reagent positions and a manufacturer-listed throughput of up to 400 tests per hour.
- Constant 400 test/ hour with double reagent.
- 90 reagent positions.
- Automatic liquid level sensing, anti-collision protection.
- Integrated full closed optical system, multi wavelength simultaneous detection.
- 6-stage, 2 times automatic washing system, Alkaline cleaning solution.
| Specification | Details |
|---|---|
| Model / series | Nanolab 400 |
| Sample tray | 120 sample positions |
| Sample tube | Micro cup & test tube & blood collection tube can be used. (12 -13 )mm * ( 25-100 )mm |
| Sample volume | 2-30µL, step by 0.1µL |
| Sample probe | Liquid surface detection, timely tracking for liquid volume. Collision avoidance |
| Reagent tray | 90 reagent positions; open reagent system; continuous Peltier cooling at 2–14°C. |
| Reagent volume | 20–300 µL, in 1 µL steps |
| Reagent needle | Liquid surface detection, timely tracking for liquid volume. Collision avoidance. |
| Reaction tray | 90 reaction cuvettes with amorphous optical-plastic reaction cups |
| Reaction volume | 150–330 µL |
| Reaction time | 10 minutes |
| Temperature | Peltier incubation at 37°C ± 0.1°C |
| Mixer | Paddle-type mixing |
| Light source | Halogen lamp |
| Absorbance Range | 0–4.0 Abs |
| Resolution | 0.0001 Abs |
| Operation system | Windows XP, Windows 7, Windows 8, Windows 10 |
| Data processing | Automatic calibration, reagent management, serum-index processing, patient records, report checking, statistics, printing, alarms and user-access management. |
| Interface | TCP/IP network interface |
| Power supply | AC 110/220V ± 10%, 50/60 Hz, 650W |
| Water consumption | 15L/hour (maximum) |
| Dimension | 1110mm * 765mm * 1150mm (L*W*H) |
| Weight | 164 kg |
Configuration choices
- Optical wavelength selections: 340, 405, 450, 505, 546, 578, 630 and 700 nm, with four further options listed by the manufacturer.
- Six report-printing formats with a custom-layout option.
