MT1 Semi-Automated
Trivitron Healthcare

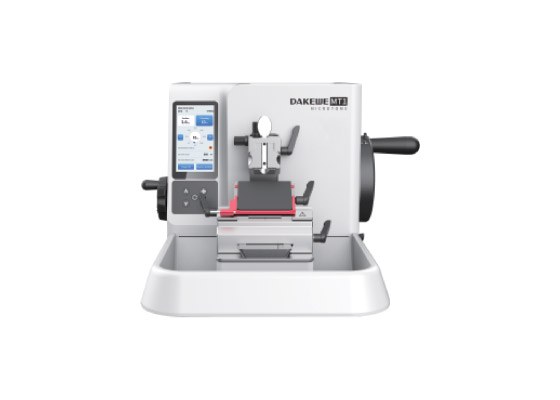

The Dakewe MT1 is a semi-automated rotary microtome with adjustable sectioning and trimming thickness settings, a touchscreen and motorized coarse feed.
| Specification | Details |
|---|---|
| Model / series | MT1 |
| Power | 100 - 240 VAC, 50/60 Hz |
| Maximum consumption | 50 VA |
| Dimension (W×D×H) | 490 × 570 × 306 mm |
| Weight | Approx. 38 kg |
| Screen | 5 inch color touch screen |
| Control panel | Yes |
| Waste tray | Antistatic |
| Section thickness range | 0.5 – 100 µm |
| Section setting values | 0.5 – 5 µm in 0.5 µm increments 5 – 20 µm in 1 µm increments 20 – 60 µm in 5 µm increments 60 – 100 µm in 10 µm increments |
| Trimming thickness range | 1 – 600 µm |
| Trimming setting values | 1 – 10 µm in 1 µm increments 10 – 20 µm in 2 µm increments 20 – 50 µm in 5 µm increments 50 – 100 µm in 10 µm increments 100 – 600 µm in 50 µm increments |
| Specimen retraction | 0 – 100 µm in 5 µm increments, can be turned off |
| Horizontal feed | 25 ± 1 mm |
| Vertical stroke | 70 ± 1 mm |
| Electric coarse feed speed | Fast forward: 0 – 1800 µm/s, adjustable Fast backward: 0 – 1800 µm/s, adjustable |
| Specimen head position memory | 1 position |
| Maximum block size | 55 × 50 × 30 mm |
| Specimen orientation with zero position | Horizontal rotation ±8° Vertical rotation ±8° |
| Coarse feed wheel turn direction | Clockwise or counterclockwise |
| 2-in-1 blade holder | Yes |
| Rocking mode | Yes |
| 3-in-1 coarse feed wheel | Wheel, finger pad, knob |
