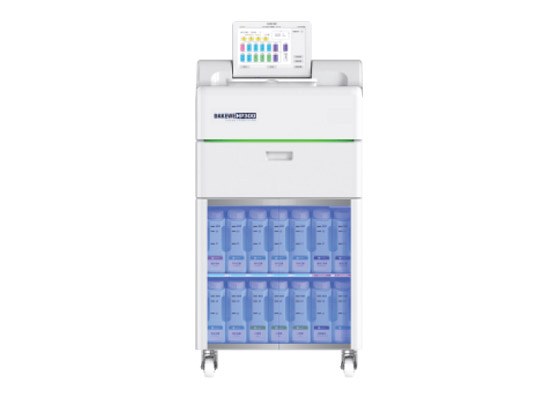

HP300 Automatic Tissue Processor
Trivitron Healthcare
The HP300 Automatic Tissue Processor supports laboratory tissue processing with monitored reagent handling, wax tanks and programmable processing protocols.
- 12.1-inch LCD touch screen with 3 adjustable viewing angles for convenient operation.
- Heated retort lid with Teflon coating reduces paraffin residue and simplifies cleaning.
- Real-time status light displays the current operating status of the instrument.
- 4 wax tanks support efficient tissue processing.
- Reagent bottle system includes 10 reagent bottles, 3 cleaning reagent bottles, and 1 condensate bottle.
- Back-lit cabinet improves visibility for monitoring reagents.
- Bottle connection check ensures correct bottle installation and prevents operational errors.
| Specification | Details |
|---|---|
| Model / series | HP300 |
| Process capacity | Up to 300 cassettes in 2 large baskets, or 280 in 4 small baskets. |
| Wax tanks | 3 × 4.2 L, 1 × 5.6 L. |
| Reagent bottles | 10 reagent bottles, 3 cleaning reagent bottles, 1 condensate bottle. |
| Program memory | Up to 100 programs. |
| Level sensors | 3 ultrasonic level sensors. |
| Screen | 12.1 inch LCD color touch screen, 3 angles adjustable. |
| Data interface | USB, LAN. |
| Power | 100–120 VAC, 60 Hz or 220–240 VAC, 50/60 Hz; 1200 VA. |
| Dimensions (W×D×H) | 620 × 640 × 1170 mm. |
| Weight | Approx. 180 kg, without reagents. |
