Cellenium Hematology Analyzers - 21 / 21 Plus / 5D Retic / 5D Retic AL
Trivitron Healthcare

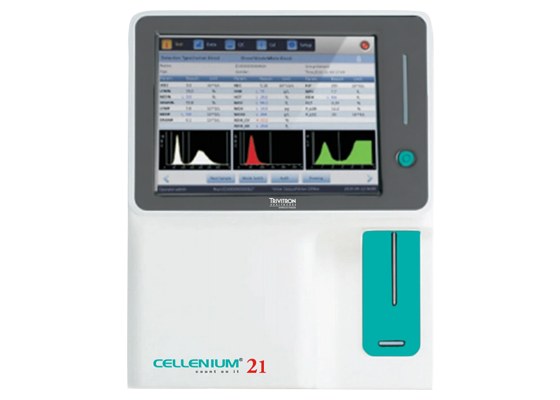

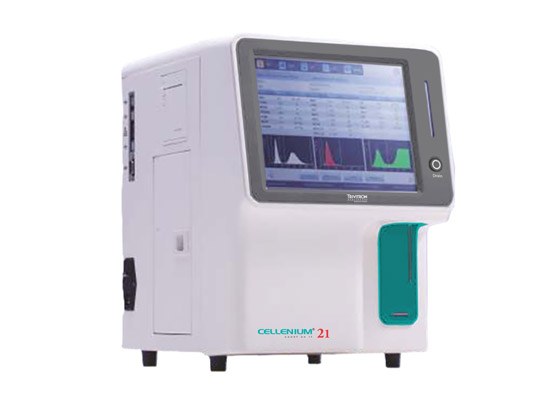

Cellenium 21
Cellenium 21 is a fully automated 3-part hematology analyzer for routine laboratory blood testing.
- Throughput : Processes up to 72 whole blood samples per hour.
- High-Resolution Disk Aperture : WBC: 100 µm | RBC/PLT: 68 µm, ensuring precise blood cell counting.
- Reliable Volume vs Counting Technology : Reduces calibration frequency and enhances result accuracy.
| Specification | Details |
|---|---|
| Model / series | Cellenium 21 |
| High-resolution disk aperture | WBC 100 µm, RBC/PLT 68 µm |
| Throughput | Up to 72 samples/hour |
| Display | 10.4-inch color touchscreen |
| Reagent system | Dual operational reagent system |

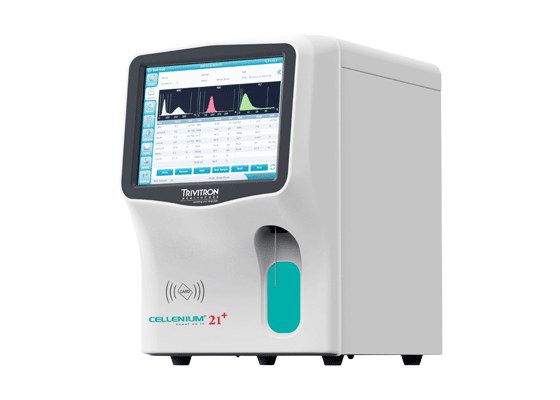

Cellenium 21 + - Cellenium 21 Plus
Cellenium 21 Plus is a fully automated 3-part hematology analyzer for routine laboratory blood testing.
- Throughput : Processes up to 72 whole blood samples per hour.
- High-Resolution Disk Aperture : WBC: 100 µm | RBC/PLT: 68 µm, ensuring precise blood cell counting.
- Reliable Volume vs Counting Technology : Reduces calibration frequency and enhances result accuracy.
| Specification | Details |
|---|---|
| Model / series | Cellenium 21 Plus |
| High-resolution disk aperture | WBC 100 µm, RBC/PLT 68 µm |
| Throughput | Up to 72 samples/hour |
| Display | 10.4-inch color touchscreen |
| Reagent system | Dual operational reagent system |

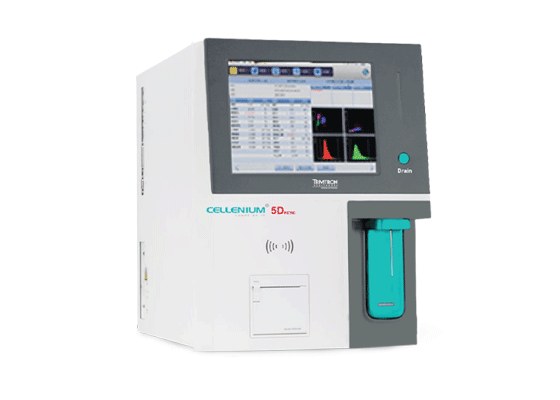

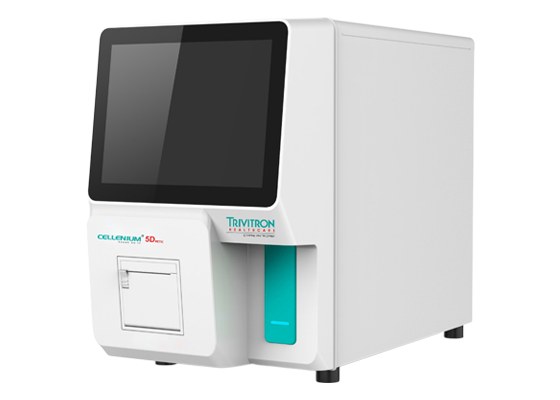

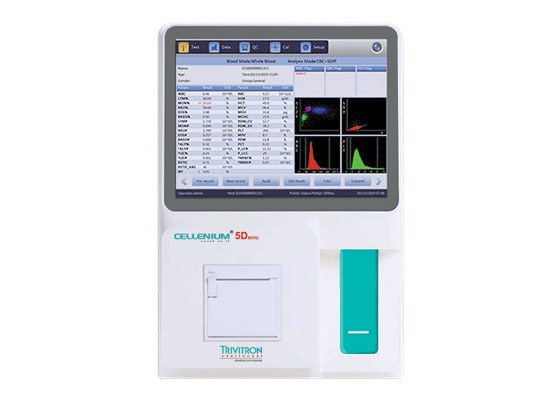

Cellenium 5D Retic
Cellenium 5D Retic is a hematology analyzer with 5-part differential and reticulocyte parameters, a 10.4-inch touchscreen and a manufacturer-listed throughput of 60 samples per hour.
- Easy-to-use interface with a 10.4” touch screen and internal thermal printer.
- 60 samples per hour.
- 34 parameters including RET%, RET# and research markers.
- Dual WBC counting mode for enhanced accuracy.
- Laser light multidimensional classification with resistant RBC mode.
| Specification | Details |
|---|---|
| Model / series | Cellenium 5D Retic |
| Throughput | 60 tests/hour |
| Parameters | WBC, LYM%, MON%, NEU%, EOS%, BASO%, LYM#, MON#, NEU#, EOS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, PLCC, NRBC%, NRBC, RETIC%, ABS RETIC#, IRF, ALY%, ALY#, LIC%, LIC# |
| Histograms & Scattergrams | 2 RBC/PLT histograms, 5-part differential scattergram, Eosinophils and Neutrophils scattergram, 3D stereograms |
| Principle of Operation | WBC DIFF: Flow Cytometry, laser-based multidimensional cell classification; RBC/PLT: Impedance method; HGB: Cyanide-free colorimetry |
| Calibration & Control | Standard blood with manual calibration, LJ, XR, XB control modes |
| Data Storage | 200,000 records with graphics |
| Connectivity | RS232, USB, Ethernet; software upgrades via USB memory stick |
| Reagents & Sampling | Whole blood 20 µL, prediluent 20 µL, diluent, sheath, detergent, lyse |
| Environment | Temp 15–30°C, RH max 80% (non-condensing) |

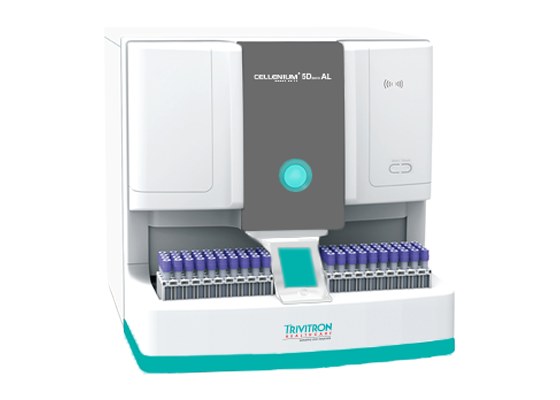

Cellenium 5D RETIC AL
Cellenium 5D Retic AL is a hematology analyzer with 5-part differential, reticulocyte and body-fluid parameters, plus a 50-sample autoloader.
- Autoloader Capacity : Load up to 50 samples at a time with built-in barcode reading.
- Reticulocyte Analysis : Accurate retic counts with mono vial reagent packs.
- Flow Cytometry MASS : Multi-angle scatter separation enhances precision.
- RRBC Mode : Corrected WBC counts for reliable results.
- Body Fluid Testing : Analyze peritoneal, pleural, cerebrospinal, and synovial fluids without dedicated reagents.
- Processes up to 90 samples per hour to improve turnaround time.
| Specification | Details |
|---|---|
| Model / series | Cellenium 5D Retic AL |
| Parameters | 49 including reticulocyte and body fluid parameters. |
| Sample Loading | Autoloader with full capacity of 50 samples. |
| Throughput | Up to 90 samples/hour. |
| Analysis Technology | Flow Cytometry (FCM) Multi-Angle Scatter Separation (MASS). |
| Special Modes | RRBC for corrected WBC counts. |

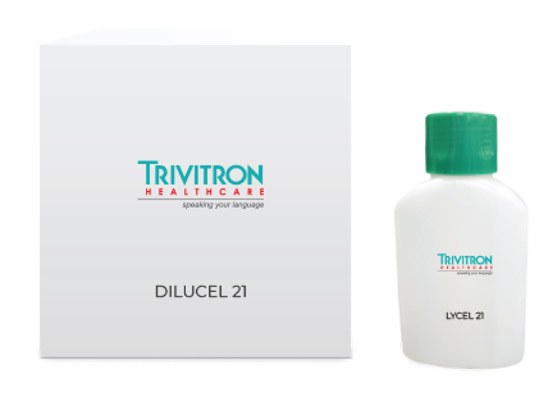

Hematology Reagents & Controls
Replacement parts and accessories
Trivitron offers hematology reagents and controls for its Cellenium 21 3-part and Cellenium 5D 5-part analyzer ranges, including Retic and MR reagents.
- Shelf life of up to 24 months.
- Hematology controls (LNH).
- Environmentally friendly diluents and cleaner reagents (Azide-free).
| Specification | Details |
|---|---|
| Shelf life | 24 months |
| Open container stability | up to 4 months |
