AutoExtract 96
Trivitron Healthcare

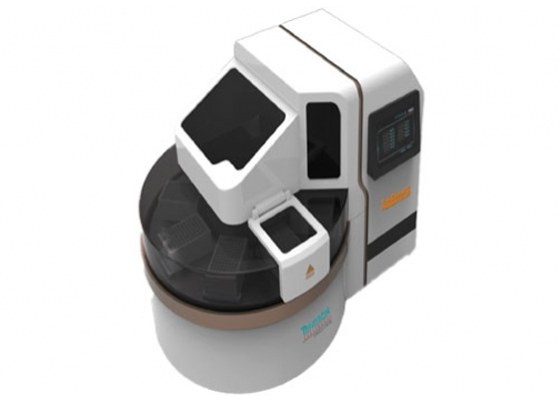

AutoExtract 96 is an automated magnetic-bead nucleic acid extraction system with a manufacturer-listed capacity of 96 samples per run.
- Magnetic bead-based methodology for high recovery and consistency.
- One-click operation interface with minimalist design.
- Maximum throughput of 96 samples per run.
- Open platform compatible with a wide range of downstream tests.
- Multiple shaking modes with adjustable frequency and amplitude.
- Controlled heating up to 100°C for optimized extraction.
| Specification | Details |
|---|---|
| Model / series | AutoExtract 96 |
| Throughput | 96 samples / 30 mins |
| Sample Volume | 20–1000 µL |
| Recovery Rate | 95% using magnetic beads |
| Plate Type | 96 deep well plate |
| Microplate Racks | 8-unit rotary structure |
| Heating Control | Room temperature to 100°C |
| Shaking Mode | Multiple adjustable modes |
| Working Environment | 10–30°C, ≤80% RH, atmospheric pressure 86–106 kPa |
| Power Requirements | 220 V, 50/60 Hz |
