Tabletop Shield, Beta/Gamma
For beta and gamma radiation

Tabletop Shield, Beta/Gamma 042-224
Protects face and body when
working with radioactive
material. Continuous stainless
steel lining is easy to
clean/decontaminate.


Tabletop Shield, Beta/Gamma 042-224 pic 2

Tabletop Shield shown with optional side shield

Tabletop Shield shown with
optional side shield.

This Tabletop Shield provides protection while working with mid- to low-energy beta and gamma radioactive materials. The shield is designed to resist tipping and incorporate shielding overlap to eliminate radiation streaming. The entire interior work surface is one piece stainless steel for easy clean up and decontamination. The base of the work surface is designed with a spill-proof lip for fast, contained clean up.

The front wall of the shield is constructed of .5" (1.2 cm) thick lead and completely encased with stainless steel on the work surface side and powder-coated cast aluminum on the technologist side. A lead glass window (2.0 mm LE) and a Plexiglas® panel are included. This shielding combination attenuates gamma and beta radiation, and errant bremsstrahlung, with unimpaired viewing of the work area. An optional 2.0 mm LE lead glass window is available to achieve 4.0 mm lead equivalency.

Optional side and bottom shields offer additional protection. Manufactured to be durable, the Beta/Gamma Tabletop Shield is framed in cast aluminum with a powder-coat finish.

Specifications

Tabletop Shield Side Shields

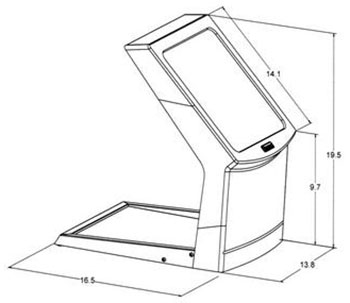

Dimensions of Tabletop Shield

Dimensions of Tabletop Shield

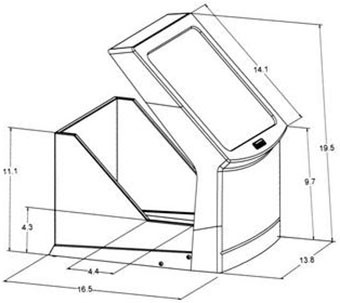

Tabletop Shield shown with optional side shield, 042-227

Tabletop Shield shown with optional side shield, 042-227



Tabletop Shield:
042-224 Shield, Tabletop, .5" lead
With 2.0 mm lead equivalent glass and Plexiglas® panel
Optional:
042-228 Lead Glass Plate, 8.0 mm thick, 12" x 12"
042-227 Side Shield, .25" lead
042-226 Bottom Shield, .25" lead
