CT Dose Phantoms - CIRS 007A

CT Dose Phantoms - CIRS 007A
*Phantom shown with optional bracket
COMPLY WITH FDA PERFORMANCE STANDARD

For all computed tomography systems, the FDA recommends measuring the CT Dose Index (CTDI). With this in mind, each section of our CIRS CT Dose Phantom can provide separate dose information. The user can also measure maximum, minimum and mid-range values of the nominal tomographic section thickness when performing dose profile measurements.

The phantom consists of a set of nesting 15 cm thick solid PMMA disks measuring 16 cm (head) and 32 cm (body) in diameter. The adult head disk is also suitable for pediatric body measurements. Our Model 007A additionally includes a third nesting disk measuring 10 cm in diameter for pediatric head measurements. Handles on the body and head are provided for ease in handling and maneuverability.

Through holes measuring 1.31 cm in diameter will accommodate standard CT probes, and acrylic rods are provided to plug the holes when not in use. The acrylic rods are machined to receive 1 mm diameter TLD rods.

The Model 007A is manufactured to comply with the FDA’s performance standard, 21 CFR 1020.33 that details measurement requirements.

Features: CT Dose Phantoms Data Sheet

CIRS 007A Optional Bracket

*An optional Support Bracket, Model 007-01, can be used to suspend the CT Dose Phantoms above the imaging couch and align it along the axis of X-ray tube rotation. This enables the phantom to be used to assess CT dose in helical mode or any mode that requires the extended travel of the imaging couch or a wide beam. This set-up might be used to address the dosimetry approach described in TG111. An additional application of the support bracket is to provide a body to simulate continuous scatter radiation from the patient during helical CT for dose safety measurements inside and outside the exam room.

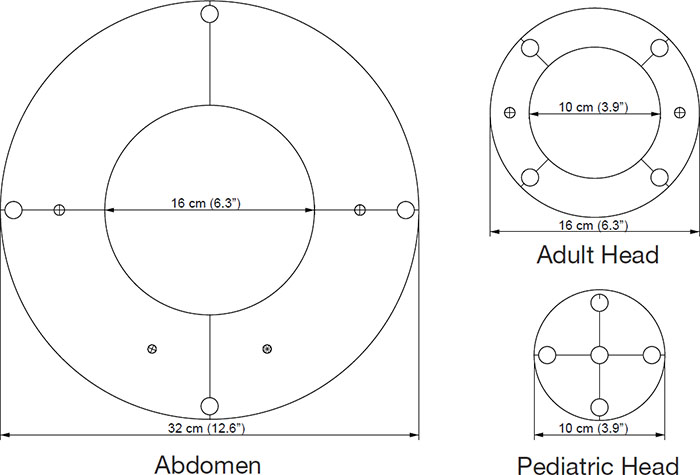

CIRS 007A Diagram


Specifications
Overall Dimensions 32 cm x 32 cm x 15 cm
(12.6" x 12.6" x 5.9")
Weight 13kg (29 lb)
Materials PMMA
Model 007A Includes
Qty Description
1 Abdominal Cylinder
1 Adult Head Cylinder
1 Pediatric Head Cylinder
13 Acrylic Rods
(Replacement Part No. 007-02)
1 Foam-Lined Carry Case
1 User Guide
1 48-Month Warranty
