QUART DVT_kp Dental CBCT
Routine Quality Control CBCT Test Phantom
A Universal Test Phantom for QA/QC at Dental 3D/DVT/CBCT equipment. The QUART DVT_kp test phantom is designed for Quality Assurance/Quality Control at Cone Beam CT (CBCT), Dental Volume Tomography and/or Dental 3D equipment.

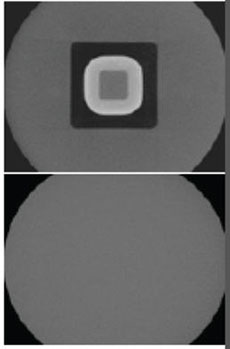

Only one exposure is required to collect all necessary parameters to determine the imaging quality for the X-Ray equipment. After the exposure, the image is automatically evaluated through the unique QUART QA/QC software. The test results can be saved or printed out for documentation purposes.
The phantom design is comparable with the design of a standard CT Head Phantom. However, the QUART DVT_kp has additional test objects which stimulate structures and materials which are found in the specific anatomical region where the 3D x-ray imaging is applied to.
The Phantom body consists of 2 discs. Both are solidly combined to ensure a good handling when used for QA/QC procedures. It has a modular set-up and can easily be modified in case a future standard, or a new national standard, should require additional test objects.
The QUART DVT_kp test phantom can be used for a wide range of 3D imaging equipment with field sizes from 4x4 cm field-of-view and wider.
Customized Phantom Holders, for easy and reproducible positioning, are available.
