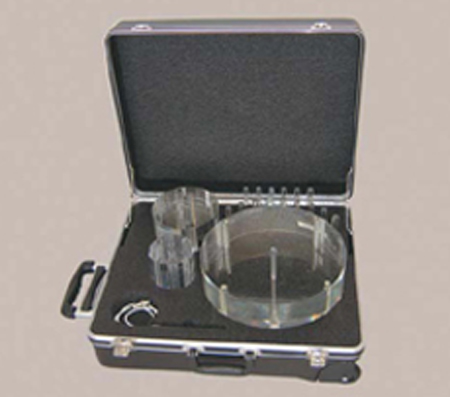

CT Dose Phantom Kit for Pediatric/Adult Head and Body
Model 76-419-4150

Allows the user to calculate:

These phantoms can be used with any computed tomography (CT) system designed to image both head and body. They can separate dose information for each. When performing dose profile measurements, the dose phantoms allow the user to collect information for the maximum, minimum and mid-range value of the nominal tomographic section thickness.

This essential phantom consists of two parts: a body phantom and a head phantom. Both are made of solid acrylic, 15 cm thick, with diameters of 32 cm and 16 cm, respectively. Each part contains five probe holes, one in the center and four around the perimeter, 90° apart and 1 cm from the edge. The inside diameter of the holes is 1.31 cm. Each part includes five acrylic rods for plugging all the holes in the phantom. A storage and carrying case is available for your convenience.

Applications

The CT Dose Phantoms were designed in accordance with the Food and Drug Administration’s performance standard for diagnostic x-ray systems, which includes regulations specifically applicable to CT systems (21 CFR 1020.33).

Specifications:

Weight
Body Phantom: 32 lb (14.5 kg)
Head Phantom: 8 lb (3.6 kg)
Pediatric Head Phantom: 2.85 lb (1.3 kg)

Options Description
76-419-4150 CT Dose Phantom Kit for Pediatric/Adult Head and Body including carrying case with wheels and pull handle
76-414-4150 Dose Phantom Kit for Adult Head and Body including carrying case
76-419 CT Pediatric Head Dose Phantom with five plugs
76-414 Head Dose Phantom with five plugs
76-415 CT Body Dose Phantom with five plugs
Carrying Cases
89-414 Carrying Case for CT Dose Phantom Kit for Adult Head and Body
89-419 Carrying Case with wheels and pull handle for CT Dose Phantom Kit for Pediatric/Adult Head and Body
