Compressible Mammography Phantom Comp-AY - PH-83 - Kyoto Kagaku
For DBT and 2D mammography training and evaluation
The Compressible Mammography Phantom Comp-AY allows thorough visual evaluation under a variety of scanning conditions and image comparison between different mammography modalities. Its soft and resilient polyurethane construction allows the phantom to be compressed during imaging.

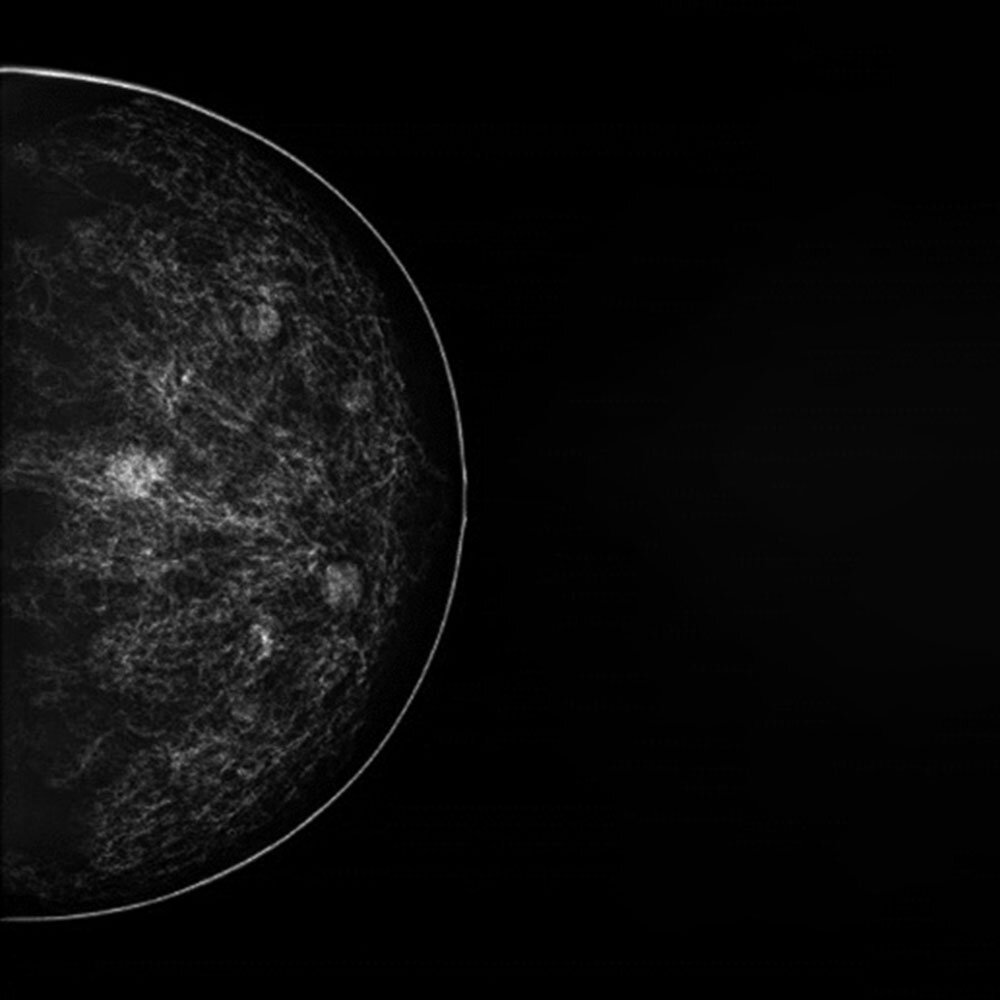

Features- Three-dimensional simulated mammary gland fibers and tumors produce realistic medical images.
- Allows visual evaluation under different scanning conditions and with different tumor locations.
- Supports image comparison between 2D mammography and digital breast tomosynthesis (DBT).

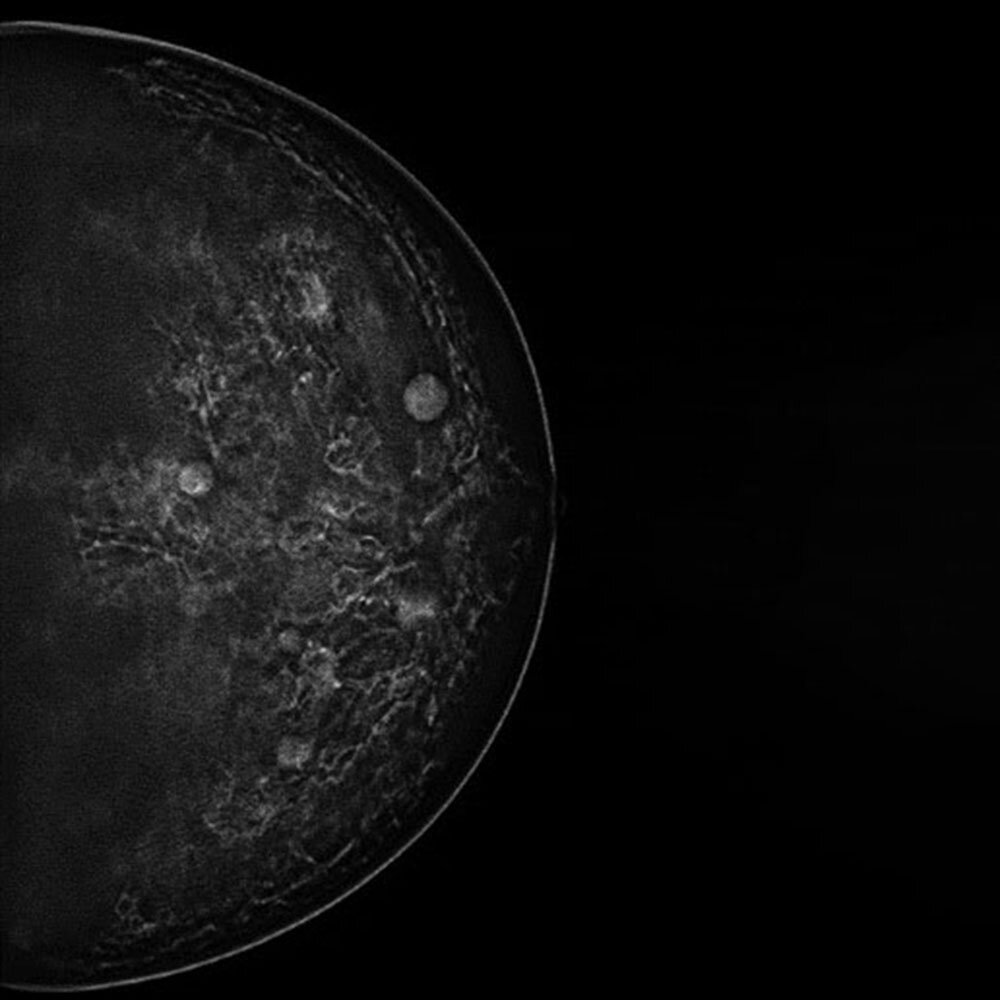

- The phantom can be rotated to change the positions of its internal targets.
- Digital breast tomosynthesis
- 2D mammography

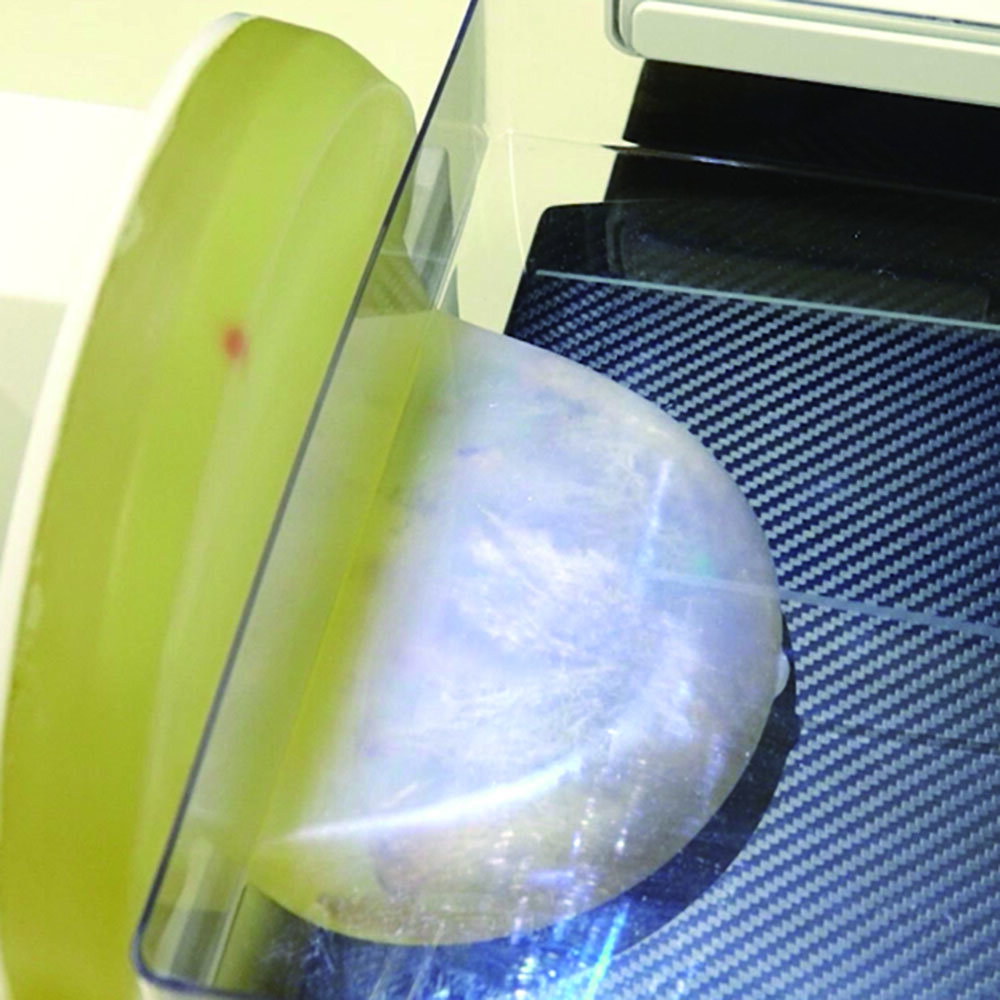

- Evaluation and study of the effect of breast compression on image quality
- Patient positioning
- Three-dimensional simulated mammary gland fibers
- High-density simulated tumors: 2, 4, 6, 8 and 10 mm diameter, one of each size
- Low-density simulated tumors: 2, 4, 6, 8 and 10 mm diameter, one of each size
- Calcifications: 0.3 mm alumina beads embedded in 10 mm simulated tumors
- 1 breast phantom
- 1 supporting holder
- 1 weight tank, 1 L
- 1 plastic wrap
- 1 instruction manual
- 1 storage case
- Model: PH-83
- Product number: 41956-000
- Size: Approximately W30 x D27 x H24 cm
- Weight: Approximately 3.1 kg excluding the weight tank; approximately 2.5 kg for the phantom only
- Material: Polyurethane
