Pro-MAM CESM
Contrast-Enhanced Mammography Phantom - Diagnomatic by Pro-Project - 03-701

Pro-MAM CESM from Diagnomatic by Pro-Project uses iodine targets and breast-equivalent backgrounds to assess contrast-enhanced spectral mammography images.

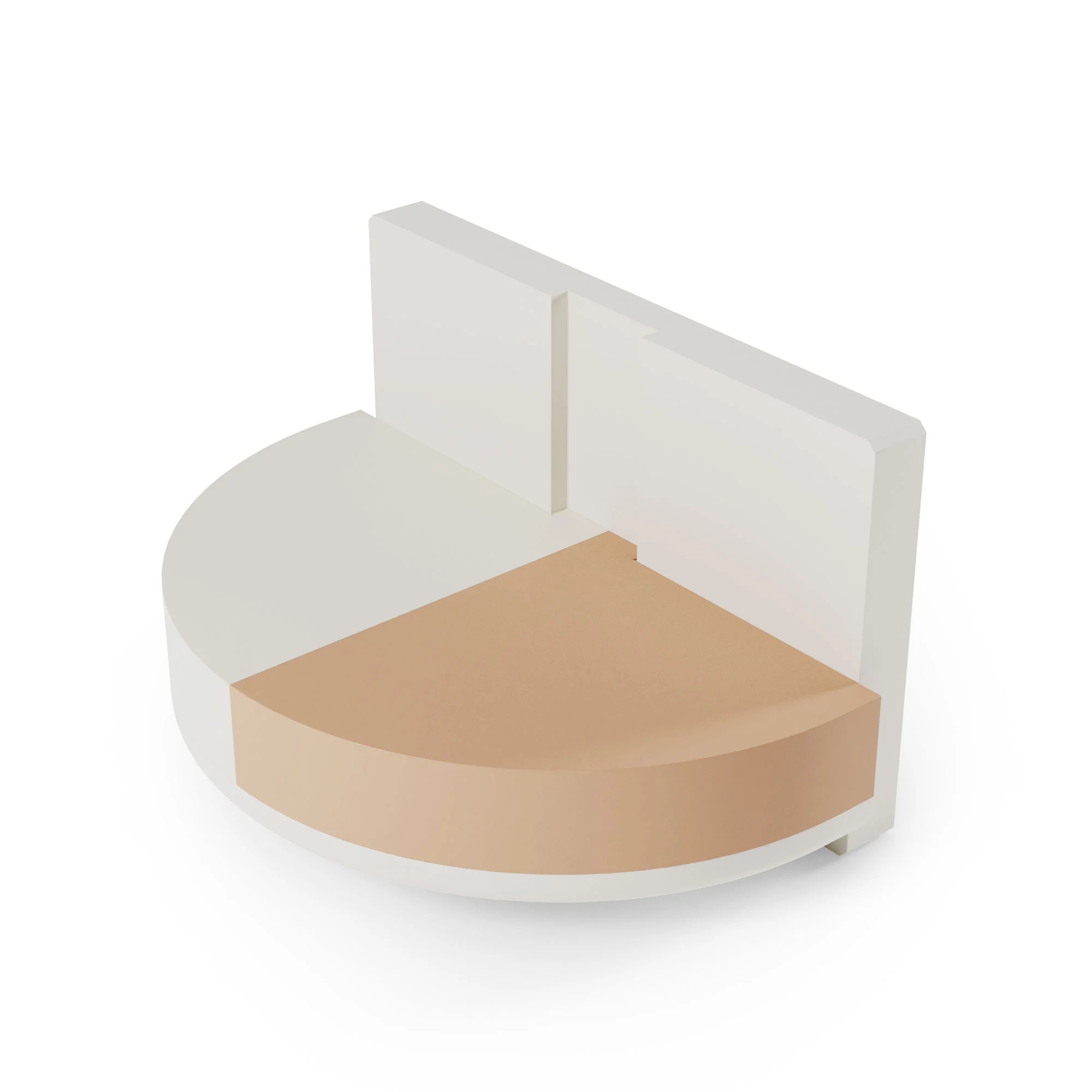

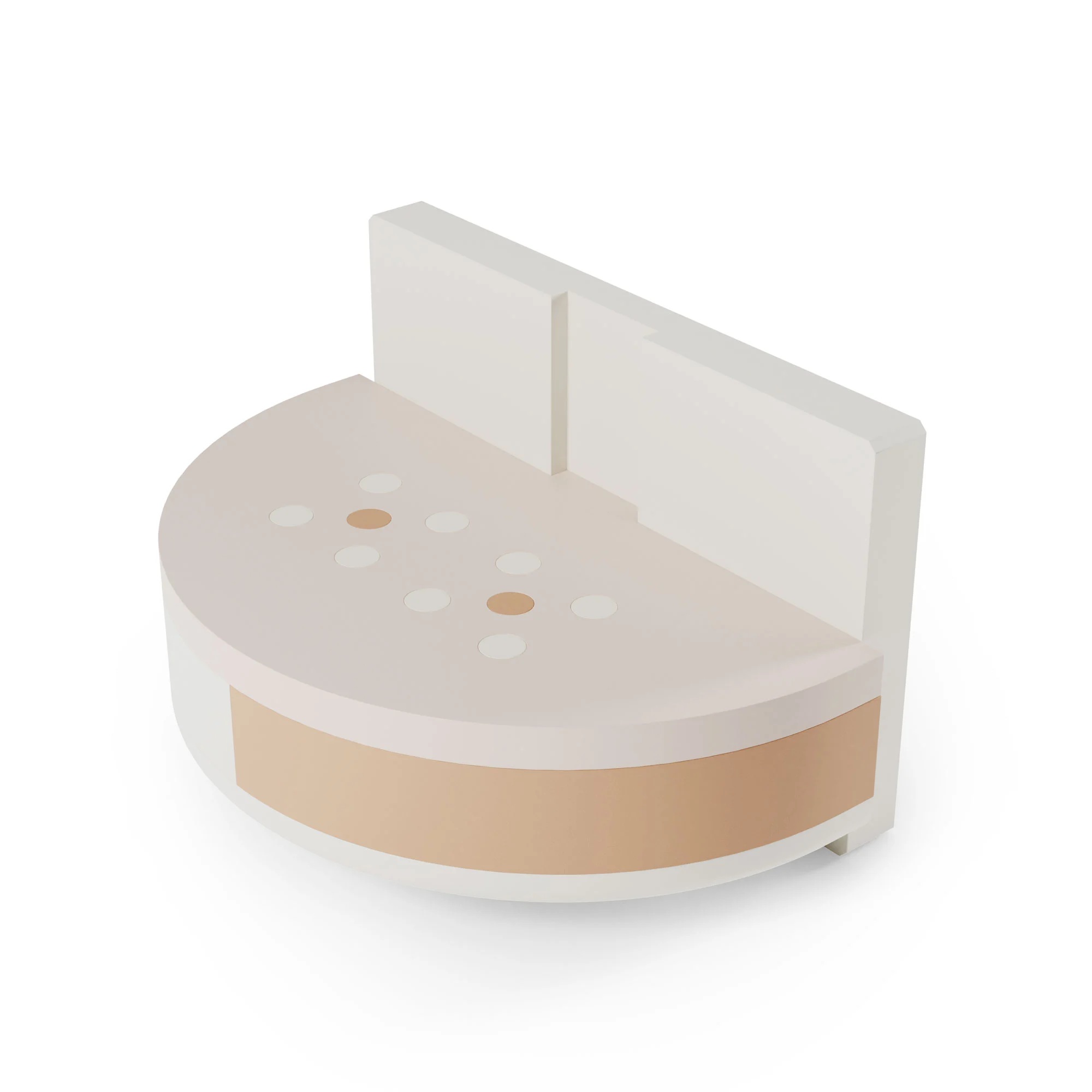

The 10 mm target plate represents a 50/50 glandular/fat mixture. Two target groups each contain iodine concentrations of 0.25, 0.5, 1.0 and 2.0 mg/cm³ plus a glandular-tissue lesion target. A lower module provides separate backgrounds representing 100% glandular tissue and 100% adipose tissue.

Click a photo or illustration to enlarge it.

Models and Ordering

Product highlights

• CESM routine quality control
• Assessment of the quality of subtracted images
• Contains iodine concentrations in a clinically relevant range
• Represents types of breasts with the majority of glandular tissue or fat tissue
• Object visibility assessment is similar to clinical conditions

Specifications

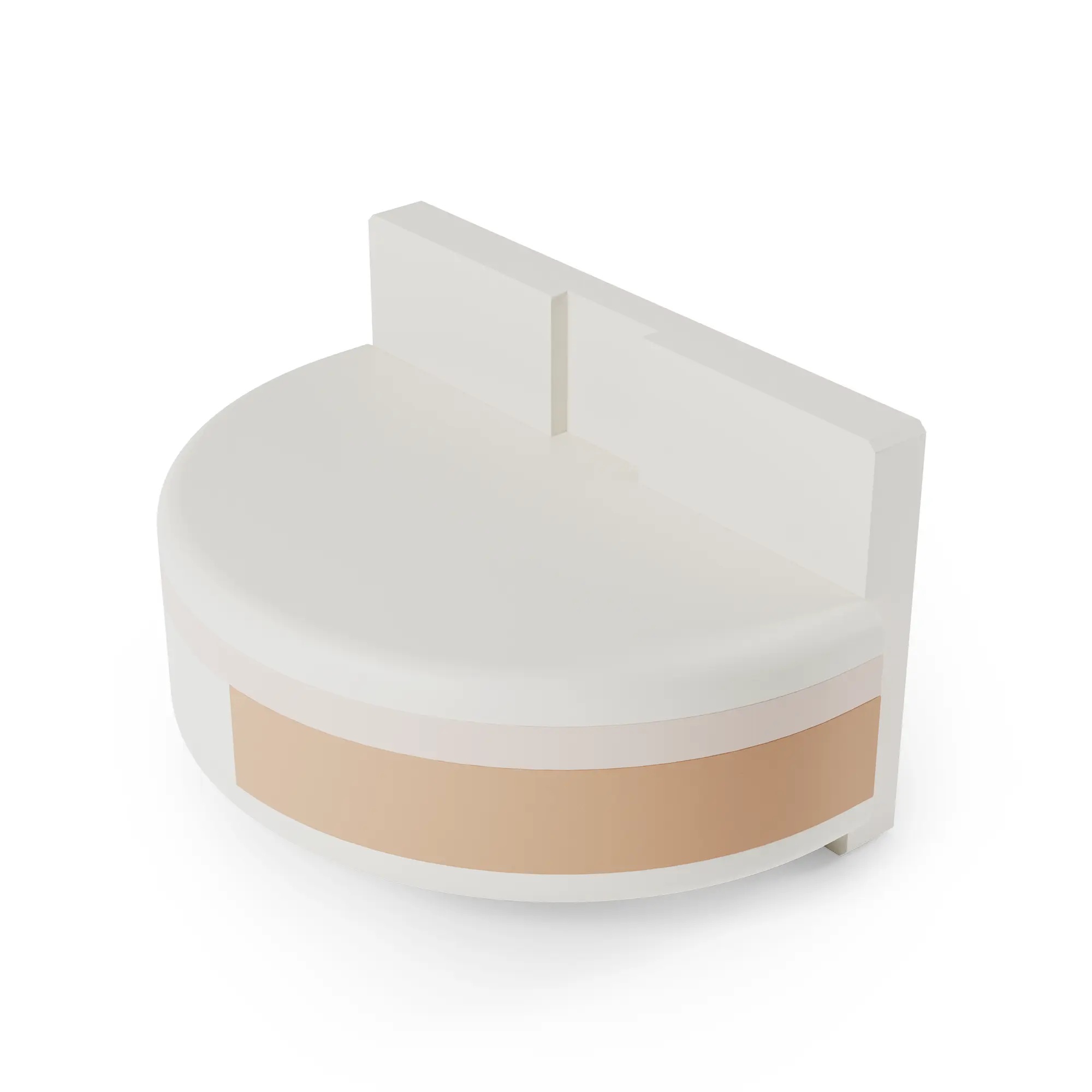

• phantom thickness: 55 mm
• the outer layers (top and bottom) are the equivalent of 10 mm thick adipose tissue
• the middle layer, 25 mm thick, consists of half of a material that simulates adipose tissue and half of a material that simulates glandular tissue
• a module with a thickness of 10 mm contains 2 groups of test objects

Features and Test References

• complies with:
  - Klausz, R, et al. Introduction of a Comprehensive Phantom for the Quality Control of Contrast Enhanced Spectral Mammography. 2018. Poster No.: ECR 2018, DOI: 10.1594/ ecr2018/C-2647
• CE marked
• Includes a manual covering the tests, result evaluation and recording.
