Pro-MAM CBCT
Breast CBCT Quality Assurance Phantom - Diagnomatic by Pro-Project - 03-702

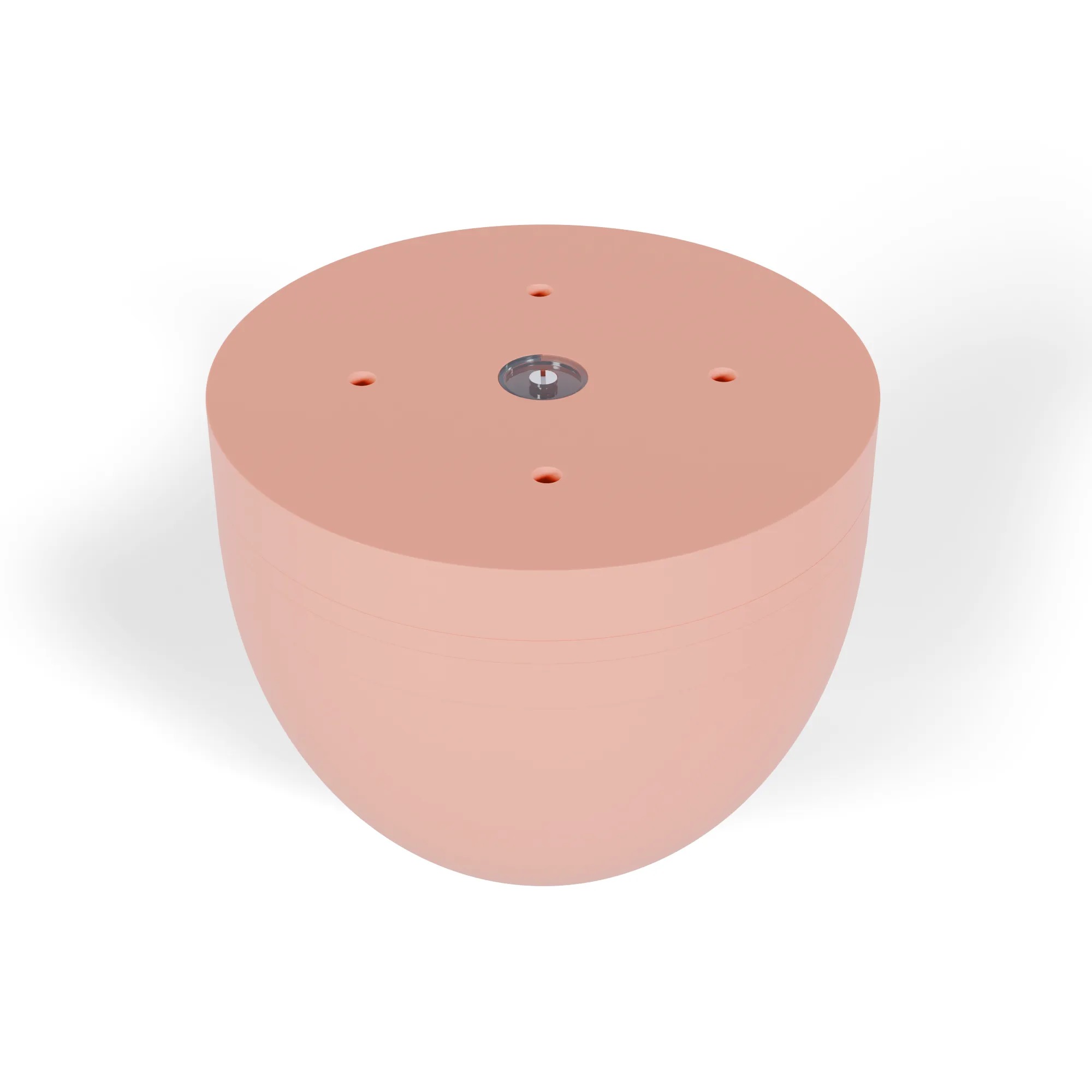

Pro-MAM CBCT from Diagnomatic by Pro-Project combines calcification, contrast and uniformity modules in a breast-equivalent body for breast CBCT quality checks.

Click a photo or illustration to enlarge it.

Models and Ordering

Product details

• Designed for routine image-quality and acceptance testing of breast CBCT systems
• Enables assessment of microcalcification visibility, contrast-to-noise ratio, low-contrast detectability, uniformity, and artifact evaluation.
• Manufactured from tissue-equivalent materials.

Specifications

• Overall dimensions: Ø 130 mm ± 0.5 mm × height 115 mm ± 2 mm
• Shape: semi-ellipsoid
• Construction material: tissue-equivalent mixture BR 20/80 (gland/fat ratio 20/80)
• Internal structure composed of modular sections for independent testing of calcifications, contrast resolution, and image uniformity

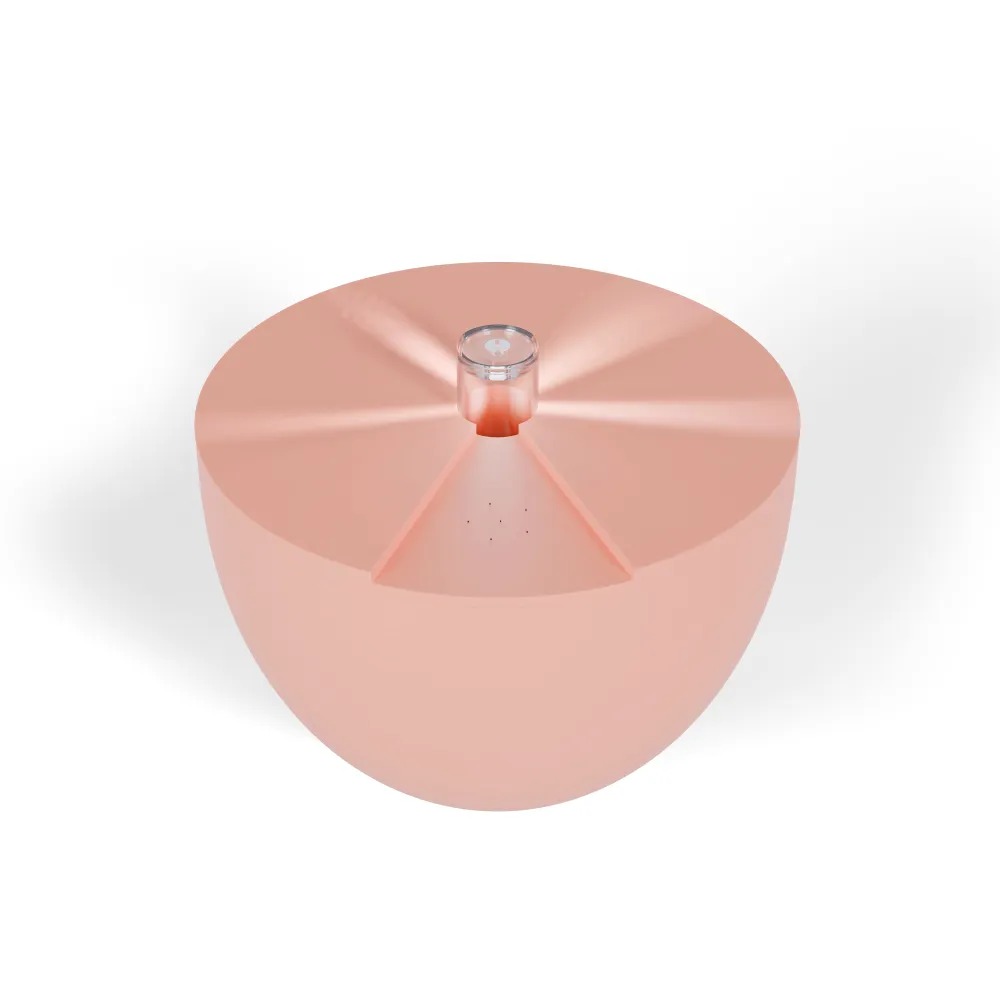

Calcification Clusters Module

• Simulates microcalcification groups in glandular/fat background.
• Calcification point diameters of 320 µm, 290 µm, 270 µm, 240 µm, 220 µm and 160 µm

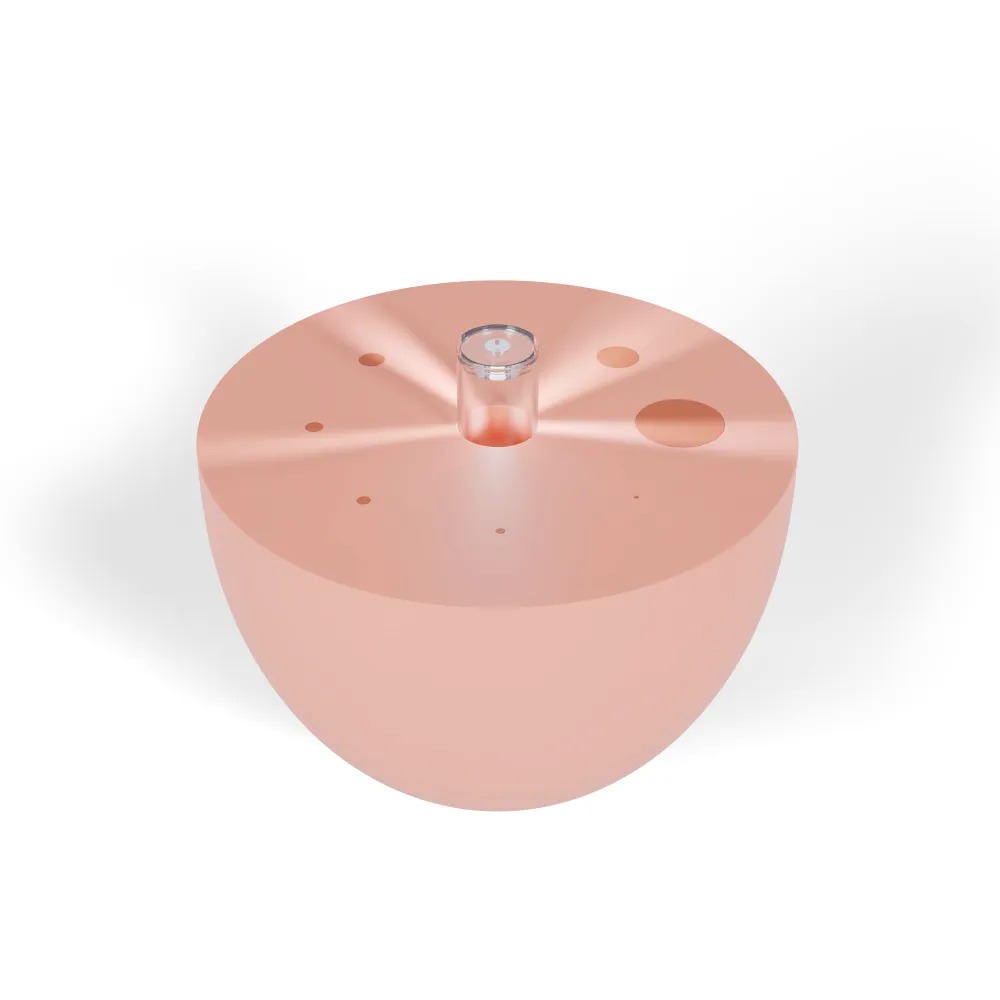

Contrast Resolution Module

• Provides high- and low-contrast targets for evaluation of CNR and low-contrast detectability, and also includes a water target.

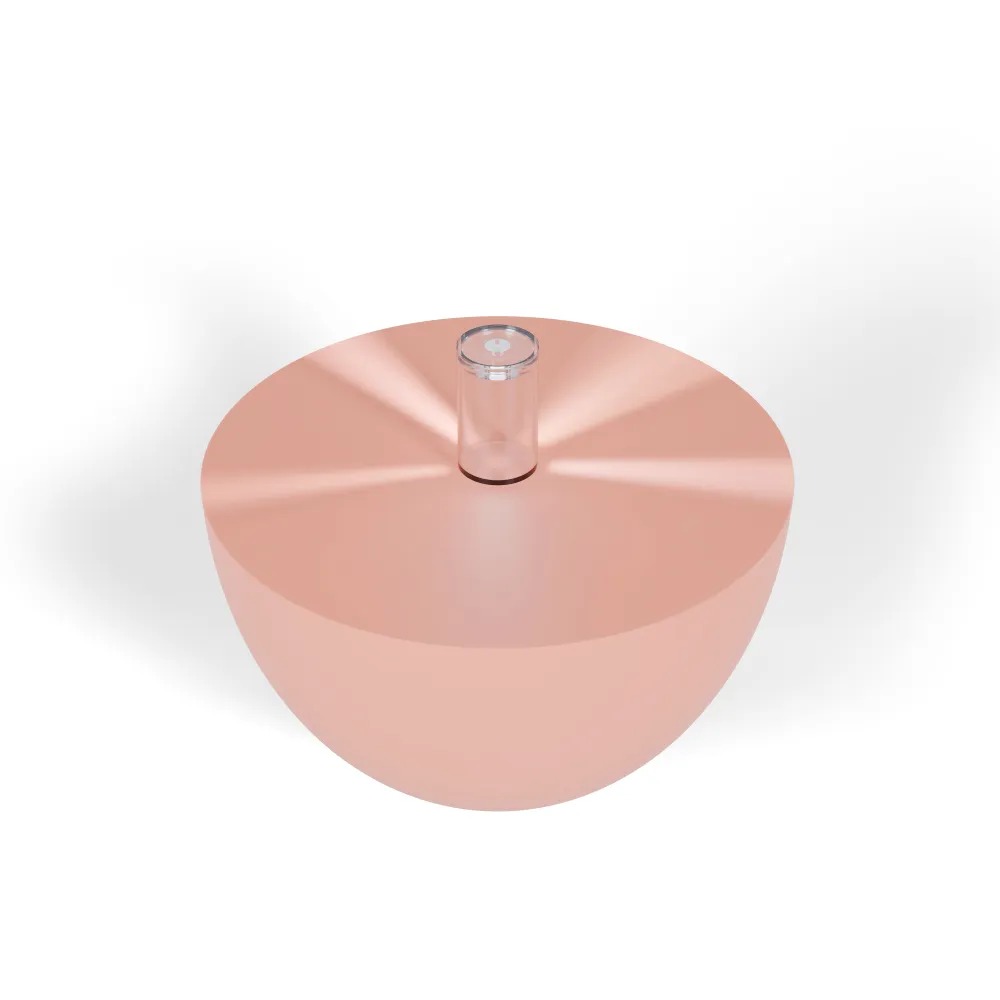

Uniformity Module

• Semi-ellipsoidal section for uniformity and artifacts assessment.

Accessories

• Carrying handles and case (optional) for easy transport

Features and Test References

• CE marked
• Includes a manual covering the tests, result evaluation and recording.
