Rayshield® Dual-Lock Under-Table X-ray Shields
RayShield® Single Pivot Shields
S-311A

Primarily designed to prevent lower body exposure to scattered radiation, these units may be used on any table where X-ray fluoroscopy is used. Our exclusive Dual Lock™ Mount system makes leveling shields on any conventional size accessory rail up to 28.5mm High by 8.8mm deep easy and secure.

Our Single Pivot Shields are 90cm. wide (35.4") with an articulating 40cm. (16") side wing that can be used to conform to the tabletop or provide either left or right side protection. A removable 40cm. (16") wide top shield 9" high may be easily fitted on top or lifted away for patient transfer. S-311A offers a single protective panel, S-314A offers a 7 panel design which allows a C-Arm to be positioned through it.


Description Cat #
Single Panel S-311A
7 Panel Design S-314A

The S-311A single-pivot design provides a one-piece under-table protective panel.

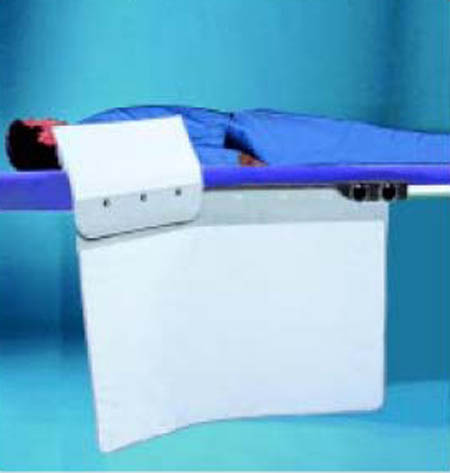

RayShield® One Piece Single Pivot Under Table Shield
Click the image to enlarge it.
  • 90 cm wide with an articulating 40 cm (16 in) side wing.
  • Includes a 16 in wide lift-off above-table panel.
  • Dual Lock mounting fits rails up to 28.5 mm high by 8.8 mm deep.
Item / specificationDetails
Model / item numberS-311A

Under-table Shield Band Bags - DB-2515 / DB-5030 / DB-5030S

Optional sterile band bags provide single-use covers for under-table shielding.

Under-table Shield Band Bags - Under-table Band Bag
Click the image to enlarge it.
  • Sterile, single-use latex-free covers.
  • DB-2515 top bag: 25 x 15 in, 10 per case.
  • DB-5030 bottom bag: 50 x 30 in, 10 per case.
  • DB-5030S set: ten top and ten bottom bags.
Item / specificationDetails
Model / item numbersDB-2515 / DB-5030 / DB-5030S

Configuration Choices

Specify the required configuration when requesting a quote.

Bag typeSet (Top and Bottom), Bottom, Top
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
