Rayshield® Dual-Lock Under-Table X-ray Shields

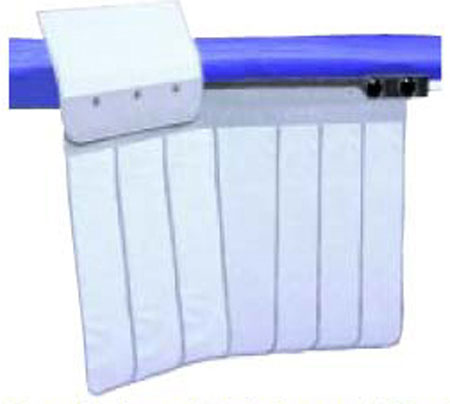

RayShield® Multi Panel Shield
S-314A / S-314NF
Primarily designed to prevent lower body exposure to scattered radiation, these units may be used on any table where X-ray fluoroscopy is used. Our exclusive Dual Lock™ Mount system makes leveling shields on any conventional size accessory rail up to 28.5mm High by 8.8mm deep easy and secure.
The same basic design as the S-311A above, the S-314A offers a 7 panel design which allows a C-Arm to be positioned through it. Available in Conventional and MRI-Safe® Construction.
|
RayShield S-314A uses seven flexible panels so a C-arm can be positioned through the under-table shield.

- 90 cm wide with an articulating 40 cm side wing.
- Dual Lock mounting fits rails up to 28.5 mm high by 8.8 mm deep.
- Conventional S-314A and specifically designated MRI-Safe S-314NF configurations.
| Item / specification | Details |
|---|---|
| Model / item numbers | S-314A / S-314NF |
Configuration Choices
Specify the required configuration when requesting a quote.
| Available conventional or mri safe | Conventional, MRI-Safe™ |
|---|
Under-table Shield Band Bags - DB-2515 / DB-5030 / DB-5030S
Optional sterile band bags provide single-use covers for under-table shielding.

- Sterile, single-use latex-free covers.
- DB-2515 top bag: 25 x 15 in, 10 per case.
- DB-5030 bottom bag: 50 x 30 in, 10 per case.
- DB-5030S set: ten top and ten bottom bags.
| Item / specification | Details |
|---|---|
| Model / item numbers | DB-2515 / DB-5030 / DB-5030S |
Configuration Choices
Specify the required configuration when requesting a quote.
| Bag type | Set (Top and Bottom), Bottom, Top |
|---|
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
