Rayshield® Under-Table X-ray Shields
Double Pivot Shields

Rayshield® Under-Table Double Pivot X-ray Shield S-405
S-405 Shield

Rayshield® Under-Table Double Pivot X-ray Shield S-404
S-404 Shield

Double Pivot Shields are available in two different sizes. Each is equipped with a 17cm wide mounting bracket which can slide and lock onto a table side accessory rails up to 28.5mm High by 8.8mm deep. Flexible 0.5mm lead equivalent overlapping curtains are attached to an aluminum alloy pivot arm that is double jointed and can pivot at two points in order to conform to the shape of many tables. The entire pivot arm can create a side wing up to 32" wide. Our exclusive Dual Lock™ Mount system makes leveling shields on any conventional size accessory rail easy and secure. A removable 24" wide top shield 9" high may be easily fitted on top or lifted away for patient transfer.

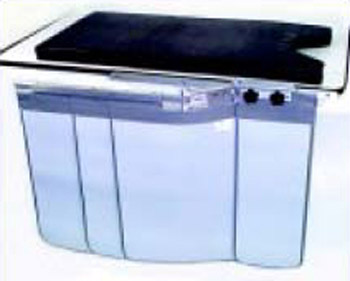

Double pivot conforming to tabletop
Shown without Top Shield demonstrating
double pivot conforming to tabletop


Description Size Cat #
102cm Double Pivot Shield S-405 102cm (40") wide x 28"
below the attachment arm
S-405
80cm Double Pivot Shield S-404 80cm (32") wide x 28"
below the attachment arm
S-404

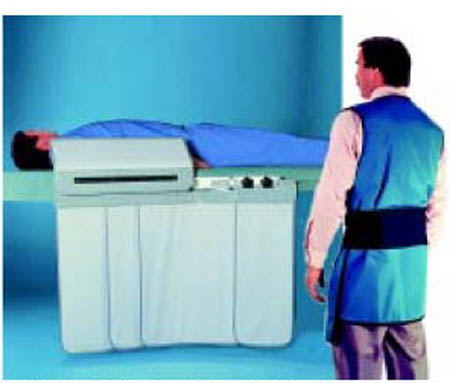

RayShield® Four Piece Under Table Shield - S-405

The S-405 four-piece under-table shield uses a double-jointed pivot arm to follow table contours.

RayShield® Four Piece Under Table Shield
Click the image to enlarge it.

  • 40 in wide by 28 in below the attachment arm; 0.5 mm lead-equivalent flexible curtains.
  • Removable top panel is 24 in wide by 9 in high.
  • 17 cm bracket fits rails up to 28.5 mm high by 8.8 mm deep.
Item / specificationDetails
Model / item numberS-405

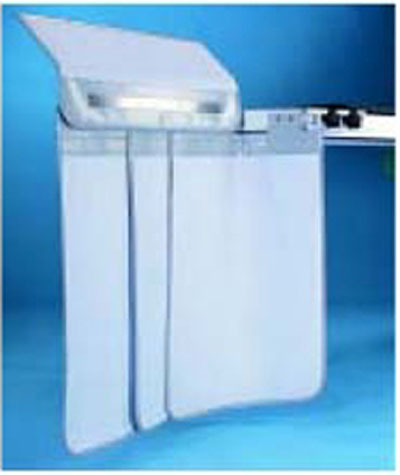

RayShield® Three-Piece Imaging Under Table Shield - S-404

The S-404 three-piece under-table shield has a double-jointed arm and overlapping flexible shielding curtains.

RayShield® Three-Piece Imaging Under Table Shield
Click the image to enlarge it.
  • 32 in wide by 28 in below the attachment arm; 0.5 mm lead-equivalent curtains.
  • Removable top shield is 24 in wide by 9 in high.
  • 17 cm mounting bracket fits rails up to 28.5 mm high by 8.8 mm deep.
Item / specificationDetails
Model / item numberS-404

Under-table Shield Band Bags - DB-2515 / DB-5030 / DB-5030S

Optional sterile band bags provide single-use covers for under-table shielding.

Under-table Shield Band Bags - Under-table Band Bag
Click the image to enlarge it.
  • Sterile, single-use latex-free covers.
  • DB-2515 top bag: 25 x 15 in, 10 per case.
  • DB-5030 bottom bag: 50 x 30 in, 10 per case.
  • DB-5030S set: ten top and ten bottom bags.
Item / specificationDetails
Model / item numbersDB-2515 / DB-5030 / DB-5030S

Configuration Choices

Specify the required configuration when requesting a quote.

Bag typeSet (Top and Bottom), Bottom, Top
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
