RayShield® Acrylic Control Booths & Modular Radiation Shielding Panels - SC-990 / SC-991 / SC-992 / SC-993

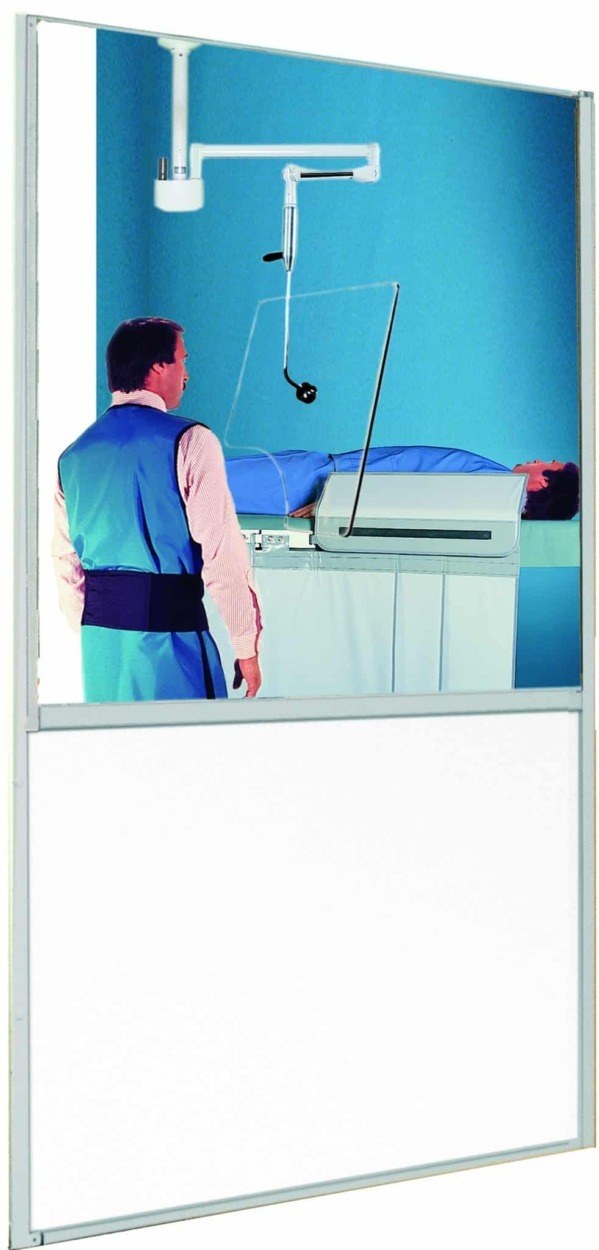

RayShield acrylic control booths combine clear viewing panels with opaque lower shielding in single-panel and angled modular layouts.
- SC-990: single panel, 36 x 48 in clear window and 36 x 36 in opaque lower section.
- SC-991: two panels at 30 degrees; 36 x 48 and 24 x 48 in clear windows.
- SC-993: two panels at 30 degrees; 48 x 48 and 24 x 48 in clear windows.
- SC-992: three panels; 36 x 48 in center and two 24 x 48 in side clear windows at 45 degrees.
- Clear windows provide 0.5 mm lead equivalence; lower panels of the two- and three-panel designs provide 0.8 mm lead equivalence.
| Item / specification | Details |
|---|---|
| Model / item numbers | SC-990 / SC-991 / SC-992 / SC-993 |
Configuration Choices
Specify the required configuration when requesting a quote.
| Item no | SC-990, SC-991, SC-992, SC-993 |
|---|
RayShield® Clear Lead Acrylic Panels
RayShield clear lead-acrylic panels are offered in standard sheet sizes and lead-equivalent values for custom shielding layouts.
- Standard lead equivalence selections: 0.3, 0.5, 0.8, 1.0, 1.5 and 2.0 mm.
- Manufacturer offers custom-cut sizes and panes larger than 72 x 96 in on special order.
- Made-to-size anodized aluminum framework is offered for acrylic up to 35 mm thick, corresponding to 1.5 mm lead equivalence.
- SC-742 actual cut size: 24 x 29 15/16 in. SC-714 actual cut size: 24 x 35 15/16 in.
Configuration Choices
Specify the required configuration when requesting a quote.
| Lead equivalence | 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm |
|---|
RayShield® Opaque Lead Acrylic Panels - SC-903 / SC-923 / SC-933 / SC-943 / SC-953 / SC-963 / SC-970 / SC-973 / SC-983
RayShield opaque lead-acrylic panels work with fabricated anodized aluminum framework for architectural shielding layouts.
- All listed opaque panel sizes provide 1.6 mm lead equivalence.
- Sizes range from 36 x 18 in through 36 x 96 in, with an 18 x 84 in option.
| Item / specification | Details |
|---|---|
| Model / item numbers | SC-903 / SC-923 / SC-933 / SC-943 / SC-953 / SC-963 / SC-970 / SC-973 / SC-983 |
Configuration Choices
Specify the required configuration when requesting a quote.
| Size | 36" x 18", 36" x 24", 36" x 36", 36" x 48", 36" x 60", 36" x 72", 36" x 84", 36" x 96", 18" x 84" |
|---|
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
