CLEAR-Pb® Pain Management Shield™ Mobile Barriers
| Model 56-311 | Model 56-312 | Model 56-313 |
 |
 |
 |
|
Face Shield barrier provides full upper body access |
Rectangular barrier provides full body protection |
Hourglass shield barrier provides larger face shield to easily facilitate head movement |
| Unique base provides closer access to patient when using C-Arm Imaging (all 3 models pictured) | ||
| Note: Please call to find out availability. | ||
Introduction
Three specially designed Pain Management Shield Mobile Barriers address different health care provider’s needs for a variety of pain management applications. Radiation levels tend to be very high due to the provider’s close proximity to the radiation source and extended radiation exposure in this high-volume clinical practice setting. These barriers offer the ultimate radiation protection while allowing freedom of movement and comfortable positioning for the provider. Mobile Barrier models include the Face Shield, Rectangle and Hourglass with Cut-Outs.
ApplicationsThe Pain Management Barriers are ideal for use in operating rooms, Special Procedure Suites and Cardiac Cath Labs. The barriers are easy to use and perfect for small office environments.
Features- Clear-PB® Windows 0.5 mm LE
- Exeptional visibility
- Easy maneuverability
- Space saving
- Easy to assemble

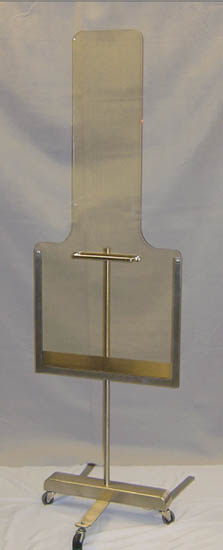

Model 56-311 Face Shield
Overall size 24 in (w) x 69 in (h)
Lead equivalent 0.5 mm LE
Shielding design Tapered with 11 inch head/face shield
Shipping weight 115 lbs

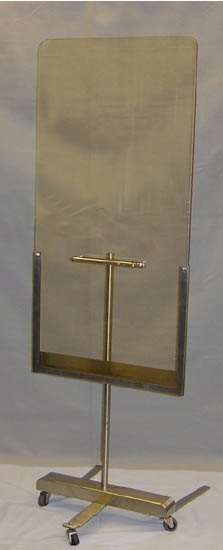

Model 56-312 Full-body Shield
Overall size 24 in (w) x 69 in (h)
Lead equivalent 0.5 mm LE
Shielding design Complete rectangular full-body shield
Shipping weight 140 lbs

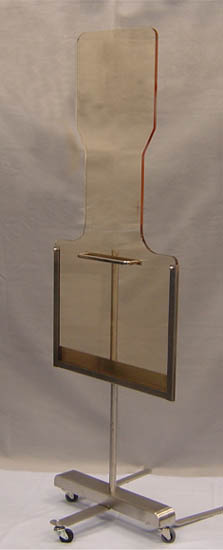

Model 56-313 Hourglass Shield
Overall size 24 in (w) x 69 in (h)
Lead equivalent 0.5 mm LE
Shielding design Hourglass with 15 inch head/face shield
Shipping weight 125 lbs
