Frame Mounted Overhead X-Ray Barriers

60 x 80 cm. Frame Mounted
Barrier with Cutout

OS-568 dual mount
OS-568R single mount

Our Lead Acrylic Barriers are offered in a choice of 60cm. x 80cm. wide (23.6"x 31.5"), 60cm. x 50cm. wide (24"x20"), 40cm. x 50cm. wide (16"x20"), lead acrylic windows 0.5 mm and 1.0mm lead equivalence.
The 60cm. x 80cm. wide (23.6"x31.5") and 60cm. x 50cm. wide (23.6"x20") models offered with or without a torso contour cutout (shown in photos).
All sizes are supplied with either a single device ceiling mount that allows 360 degree rotation or a dual device mount ceiling column to allow the mounting of a second shield, a surgical lamp, or other device such as a pressure injector or video monitor.
A single wall mount is also available.
Also a 2.5 meter long track system that will accommodate either the dual or single ceiling mounts is also available separately.
Except where otherwise indicated, all barriers shown are 0.5mm lead equivalent.

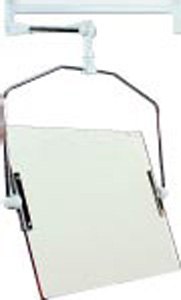

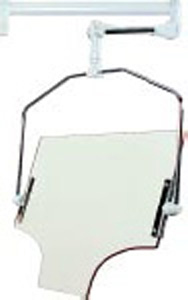

60 x 80 cm. Frame Mounted Barrier OS-568N dual mount OS-568NR single mount	60 x 80 cm. Frame Mounted Barrier with Double Cutouts OS-568D dual mount OS-568DR single mount

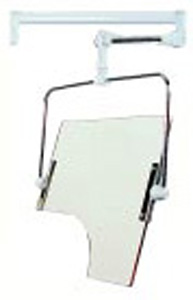

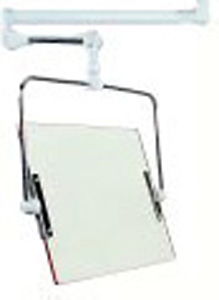

40 x 50cm. Frame Mounted Barrier OS-645 dual mount OS-645R single mount	60 x 50 cm. Frame Mounted Barrier with Cutout OS-665 dual mount OS-665R single mount without cutout models OS-665N dual mount OS-665NR single mount

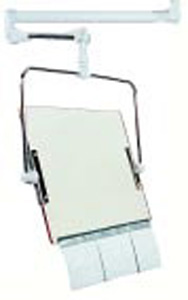

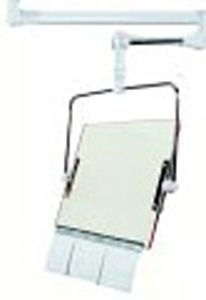

40 x 50cm. Frame Mounted Barrier with Shield OS-645S dual mount OS-645RS single mount 1.0 mm LEAD EQUIV. MODELS OS-445 dual mount OS-445R single mount	30 x 40cm. Frame Mounted Barrier with Shield OS-634 dual mount OS-634R single mount 1.0 mm LEAD EQUIV. MODELS OS-434 dual mount OS-434R single mount

Protective Curtain for Barriers

Can be used on any of our Barriers. Whether they are ordered with the barrier or as a retrofit, Protective Curtains are easy to install with self-adhesive Velcro^® that's supplied with the curtain.

OS-380C
OS-380
OS-356
OS-357
OS-358
OS-360

for 80 cm. wide Barriers with cut-out
for 80 cm. wide Barriers without cut-out
for 50 cm. wide Barriers without cut-out
for 50 cm. wide Barriers with cut-out
for 40 cm. wide Barriers
for 36 cm. part of double cutout Barrier
