Center Mounted Overhead X-Ray Barriers
OS-596 / OS-745 / OS-765 families

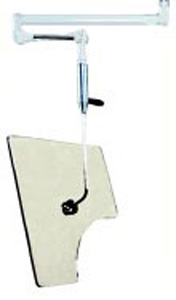

with Contoured Cutout
OS-596 dual mount
OS-596R single mount

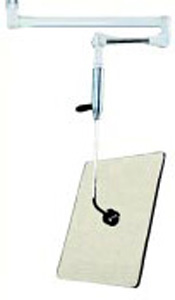

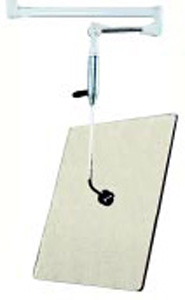

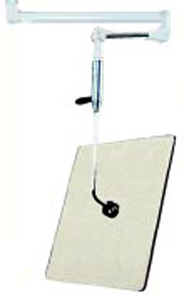

Center Mounted Barriers with their ball & socket center mount can rotate 360 degrees, allowing them to be turned horizontally, vertically, or at any angle, making them very versatile. They are available with or without torso placement contour cutout. They are available in three sizes; 76cm. high x 61cm.(30"x24"), 60 cm. high x 50cm.(24"x20") and 50cm. high x 40cm.(20"x16"). All sizes are supplied with either a single device ceiling mount that allows 360 degree rotation or a dual device mount ceiling column to allow the mounting of a second shield, a surgical lamp, or other device such as a pressure injector or video monitor. A single wall mount is also available.
Also a 2.5 meter long track system that will accommodate either the dual or single ceiling mounts is also available separately. Item number: OSP-260.
Except where otherwise indicated, all barriers shown are 0.5mm lead equivalent.
|
Protective Curtain for Barriers
Can be used on any of our Barriers. Whether they are ordered with the barrier or as a retrofit, Protective Curtains are easy to install with self-adhesive Velcro® that's supplied with the curtain.
|
OS-361C OS-361 OS-356 OS-357 OS-358 |
for 61 cm. wide Barriers with cut-out for 61 cm. wide Barriers without cut-out for 50 cm. wide Barriers without cut-out for 50 cm. wide Barriers with cut-out for 40 cm. wide Barriers |
RayShield center-mounted overhead barriers use a ball-and-socket mount for positioning the shield horizontally, vertically or at intermediate angles.
- Sizes: 76 x 61, 60 x 50 and 50 x 40 cm, with or without torso-contour cutout.
- 0.5 mm lead equivalence unless a specific configuration states otherwise.
- Single ceiling column rotates fully; dual column rotates 270 degrees. Wall-mount option is also available.
- A 2.5 m track and lamps are optional and sold separately.
| Item / specification | Details |
|---|---|
| Model / item numbers | OS-596 / OS-745 / OS-765 families |
Configuration Choices
Specify the required configuration when requesting a quote.
| Dimensions | 50cm x 40cm, 60cm x 50 cm, 76cm x 61cm |
|---|---|
| Mount columns | Dual Mount Column, Single Mount Column |
| Cutout | Contoured cutout, No Cutout |
| Mri safe | Conventional, MRI-Safe® |
Center Mounted X-Ray Barrier Band Bags - DB-3040 series
Single-use, latex-free center-mounted barrier band bags provide a sterile covering for compatible shields.
- Select the exact barrier, attachment requirement and bag size when requesting a quote.
- Manufacturer-listed barrier options: OS-596, OS-596N, OS-765, OS-765N, OS-745 and OS-615.
| Item / specification | Details |
|---|---|
| Model / item number | DB-3040 series |
Configuration Choices
Specify the required configuration when requesting a quote.
| Barrier type | OS-596, OS-596N, OS-765, OS-765N, OS-745, OS-615, Non AADCO Barrier |
|---|---|
| Shield attached | Yes, No |
| Bag size | 30"x36", 28"x36", 24"x36", 30"x30", 30"x40" |
Protective Curtain for Equipment Mounted Barriers - S-356 / S-357 / S-358 / S-360 / S-361 / S-361C / S-380 / S-380C
RayShield protective curtains can be ordered with a mounted barrier or fitted later as an optional retrofit.
- Self-adhesive hook-and-loop attachment material is included.
- Widths include 36, 40, 50, 61 and 80 cm; cutout and non-cutout selections depend on the curtain model.
| Item / specification | Details |
|---|---|
| Model / item numbers | S-356 / S-357 / S-358 / S-360 / S-361 / S-361C / S-380 / S-380C |
Configuration Choices
Specify the required configuration when requesting a quote.
| Has cutout | Cutout, No Cutout |
|---|---|
| Width | 36cm, 40cm, 50cm, 61cm, 80cm |
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
