Image Intensifier Mounted X-Ray Protective Barriers
Intensi-Barrier™
S-625 / S-625P / S-625HC

When there is no overhead barrier or where an overhead barrier is impractical, this design, which attaches directly to the Image intensifier, can be a great radiation protection solution. The barrier mount provides 360 degree rotation along the vertical plane and approximately 20 degrees of tilt, allowing the barrier to be placed in a large number of working positions. The barrier is of 0.5mm lead equivalent clear acrylic in 3 configurations, with or without hand placement cutouts.

S-625 16"H x 20"W Lead Acrylic
S-625
16"H x 20"W
Lead Acrylic
S-625P 12"H x 16"W Lead Acrylic
S-625P
12"H x 16"W
Lead Acrylic
S-625HC 16"H x 20" W With Dual Cutouts
S-625HC
16"H x 20"W
With Dual Cutouts

These barriers come with a mounting strap that fits Intensifiers with a diameter of 11 - 14" in diameter. If your image intensifier does not fit into this range, we need to know when order is placed, so that the supplier can adjust this for your machine.

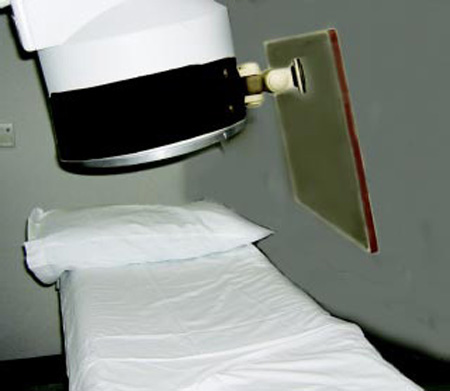

The RayShield Intensi-Barrier attaches directly to an image intensifier when an overhead barrier is impractical.

RayShield® Intensi-Barrier™
Click the image to enlarge it.
  • 0.5 mm lead-equivalent clear acrylic.
  • Mount provides 360-degree vertical-plane rotation and approximately 20 degrees of tilt.
  • Three configurations include versions with and without hand-placement cutouts.
Item / specificationDetails
Model / item numbersS-625 / S-625P / S-625HC

Configuration Choices

Specify the required configuration when requesting a quote.

StyleS-625, S-625P, S-625HC

Intensi-Barrier Band Bag - DB-2425 / DB-2020

Single-use Intensi-Barrier band bags provide a sterile cover for compatible image-intensifier-mounted barriers.

Intensi-Barrier Band Bag
Click the image to enlarge it.
  • Sterile, single-use latex-free band bags.
  • DB-2425: 24 x 25 in, listed for S-625 and S-625HC.
  • DB-2020: 20 x 20 in, listed for portrait S-625P.
Item / specificationDetails
Model / item numbersDB-2425 / DB-2020

Configuration Choices

Specify the required configuration when requesting a quote.

BarrierS-625, S-625P, S-625HC, Non AADCO Barrier
Band bag size24"x25", 20"x20"

Protective Curtain for Equipment Mounted Barriers - S-356 / S-357 / S-358 / S-360 / S-361 / S-361C / S-380 / S-380C

RayShield protective curtains can be ordered with a mounted barrier or fitted later as an optional retrofit.

  • Self-adhesive hook-and-loop attachment material is included.
  • Widths include 36, 40, 50, 61 and 80 cm; cutout and non-cutout selections depend on the curtain model.
Item / specificationDetails
Model / item numbersS-356 / S-357 / S-358 / S-360 / S-361 / S-361C / S-380 / S-380C

Configuration Choices

Specify the required configuration when requesting a quote.

Has cutoutCutout, No Cutout
Width36cm, 40cm, 50cm, 61cm, 80cm
Request product information or a quote
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
