Adjustable Height Mobile Lead-Plastic Barriers
OS-615 / OS-615D
When an overhead barrier is impractical, this cantilevered design can wheel into position, extending over the table to provide necessary protection from fluoroscopic X-ray exposure. The barrier mount provides 360 degree rotation along both vertical and horizontal planes, allowing barrier movement into a large number of working positions. Semi-circular cutout is contoured to fit closely to the patient's torso for maximized shielding from X-ray exposure. The 6 inch offset pivot position helps provide a maximum extension of 36 inches. The barrier is of 0.5mm lead equivalent clear RayShield® Acrylic that is 24 inches wide x 24 inches high. The barrier height is adjustable from 63 inches above floor to 30 inches at center.
- Provides upper-body shielding and crystal-clear visibility during cardiac catheterization and special procedures
- Shatter-resistant lead-plastic window is easily positioned over table
- Compatible with rotary patient cradles
- Adaptable to sterile fields

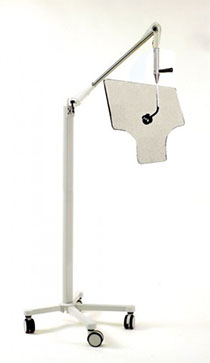

OS-615D Dual Cutout |

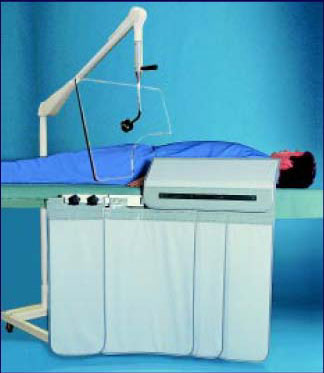

OS-615 Single Cutout |
RayShield OS-615 and OS-615D over-table barriers use a mobile cantilevered design where an overhead suspension is impractical.

- 24 x 24 in clear acrylic barrier with 0.5 mm lead equivalence.
- 360-degree rotation in vertical and horizontal planes.
- Center height adjusts from 30 to 63 in above the floor; maximum extension 36 in.
- OS-615 has one cutout; OS-615D has two.
| Item / specification | Details |
|---|---|
| Model / item numbers | OS-615 / OS-615D |
Configuration Choices
Specify the required configuration when requesting a quote.
| Item no | OS-615, OS-615D |
|---|
Contact Supertech at (800) 654-1054 or send a quote request. Please specify the model, size and configuration required.
