Rotation Stomach Phantom TMP-R - PH-19 - Kyoto Kagaku
Rotatable phantom for double-contrast gastrography training

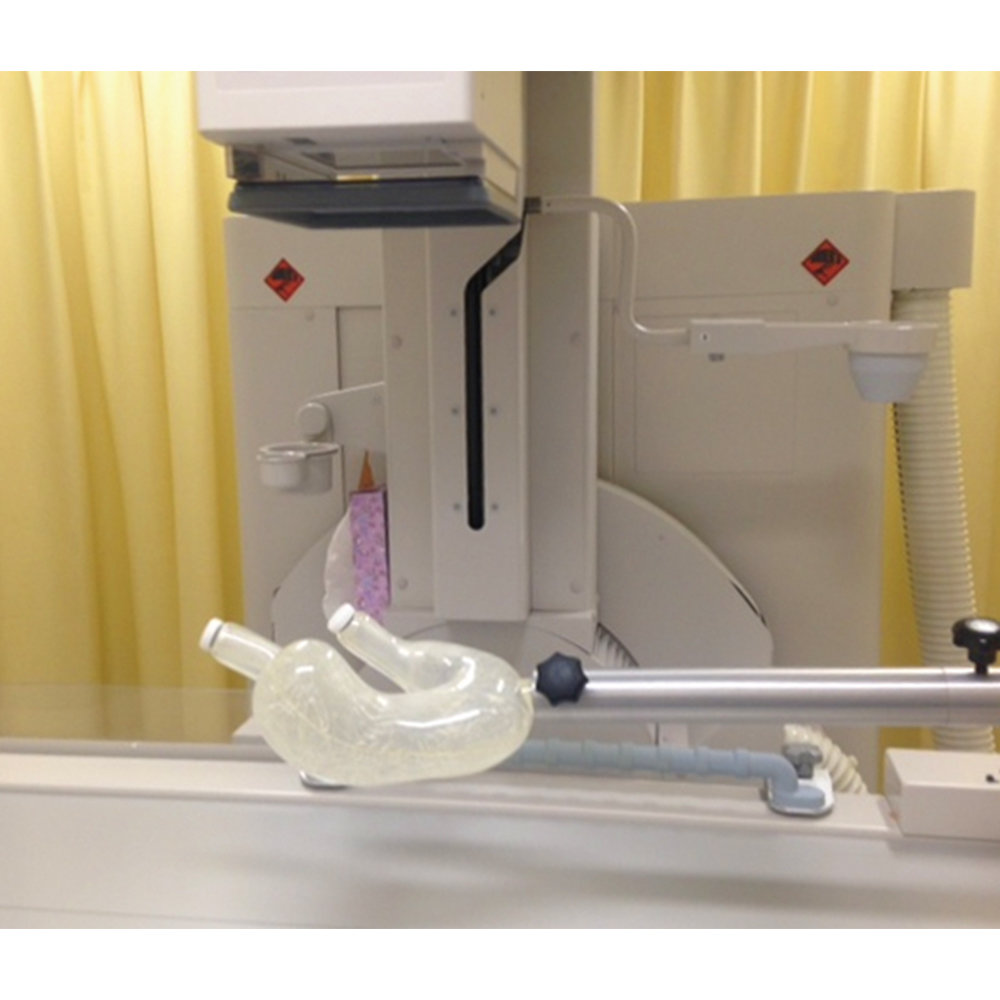

The PH-19 Rotation Stomach Phantom TMP-R is designed for healthcare-professional training in double-contrast gastrography. Its rotation system simulates patient movement, while the life-size distended stomach accepts barium for X-ray fluoroscopic imaging.
Simulated lesions modeled from real specimens are located on the inner wall of the stomach. The supplied lesion model represents seven lesions, including early gastric cancer and gastric ulcer pathology.
Download the PH-19 Catalog (PDF)
Download the PH-19 Instruction Manual (PDF)
- Rotation system simulates patient movement during gastric examinations
- Life-size distended stomach with lesions modeled from real specimens
- Barium can be poured into the stomach for imaging
- Adjustable rotation direction and rotation rate
- Seven supplied lesion reliefs reproduce pathology from real specimens
- X-ray fluoroscopy
- Double-contrast gastrography
- Barium imaging
- Patient rotation and positioning practice during gastric examinations
- Imaging and recognition of the supplied pathology reliefs
- Life-size distended stomach
- Anterior and posterior gastric lining with internal simulated lesions
- Early gastric cancer and gastric ulcer pathology
- Model of seven lesions replicated from real specimens
- 1 stomach phantom
- 1 rotation unit
- 1 controller
- 1 supporting pole
- 1 phantom holder
- 1 model of lesions
- 1 storage case
Model: PH-19
Product Code: 41312-010
Phantom Size: W25 x D18 x H28 cm (W9.8 x D7.1 x H11 in.)
Phantom Weight: Approx. 2 kg (4.4 lb)
Materials: Urethane-based resin and epoxy resin
Barium Volume: Approx. 70 mL during training
Rotation Rate: Adjustable from 3 to 10 rotations per minute
Power Supply: AC 100-240 V
Optional Part
- 41312-010-01 Extension bar
