PET/SPECT Thorax Phantom - PH-63A - Kyoto Kagaku
An optimal tool for study in nuclear medicine

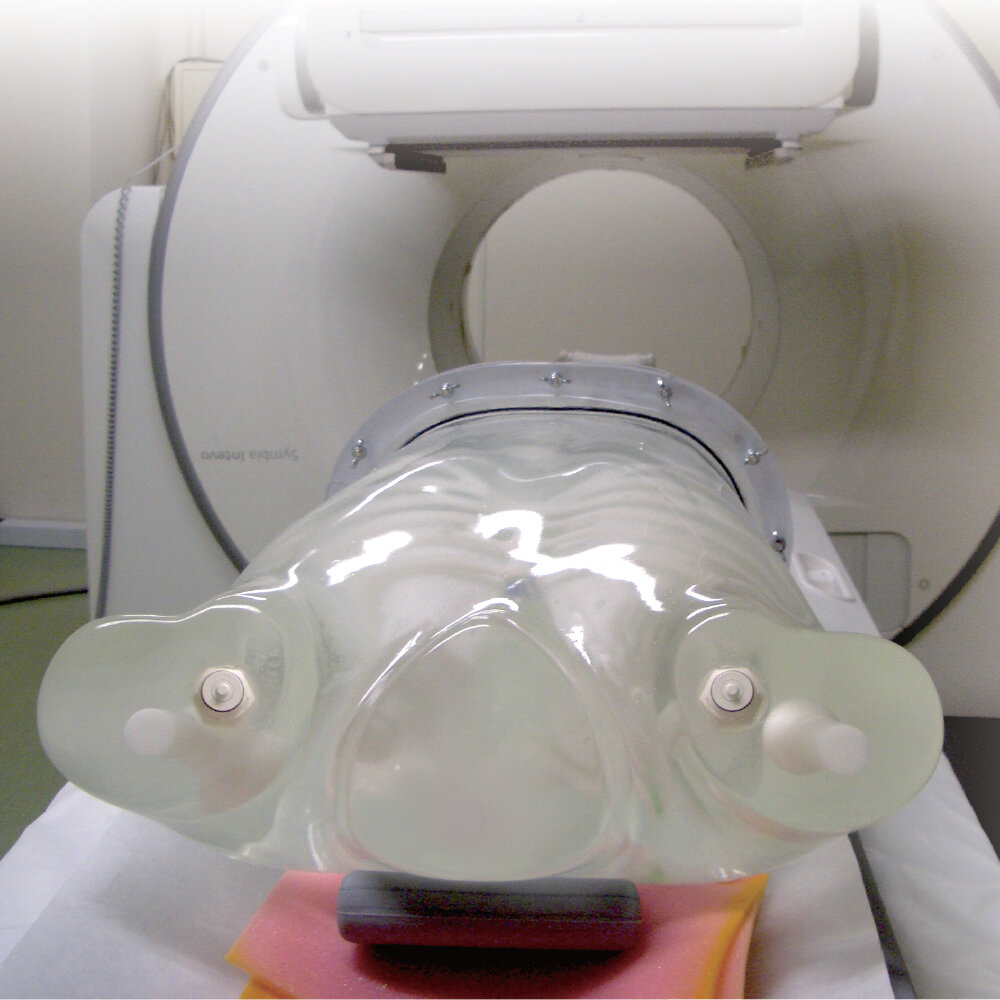

The PH-63A PET/SPECT Thorax Phantom is designed for nuclear medicine imaging studies and quality management. Its fillable organ and simulated-tumor components support myocardial SPECT studies and PET/SPECT evaluation of RI solution density, tumor size and tumor placement.
RI solutions can be introduced into the liver, kidneys and lungs to reproduce their effect on heart images. Simulated tumors can be positioned in the lungs, liver and breasts and filled with FDG or other RI solution.
Download the PH-63A Catalog (PDF)
Download the PH-63A Instruction Manual (PDF)
Download PH-63A Imaging Examples (PDF)

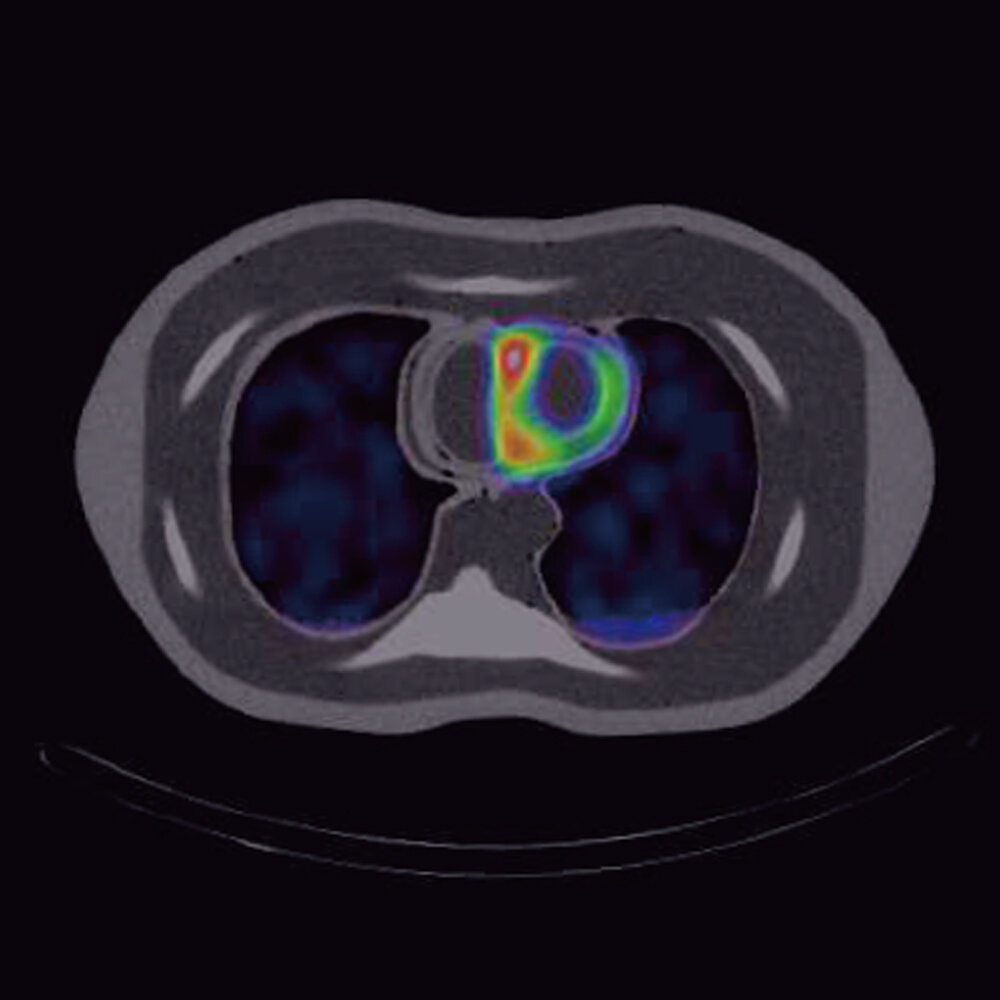

- Examination of myocardial density through SPECT imaging using various RI solution densities
- Ability to capture defects in the myocardial region
- Reproduces heart-image variations by introducing RI solutions into the liver, kidneys and lungs

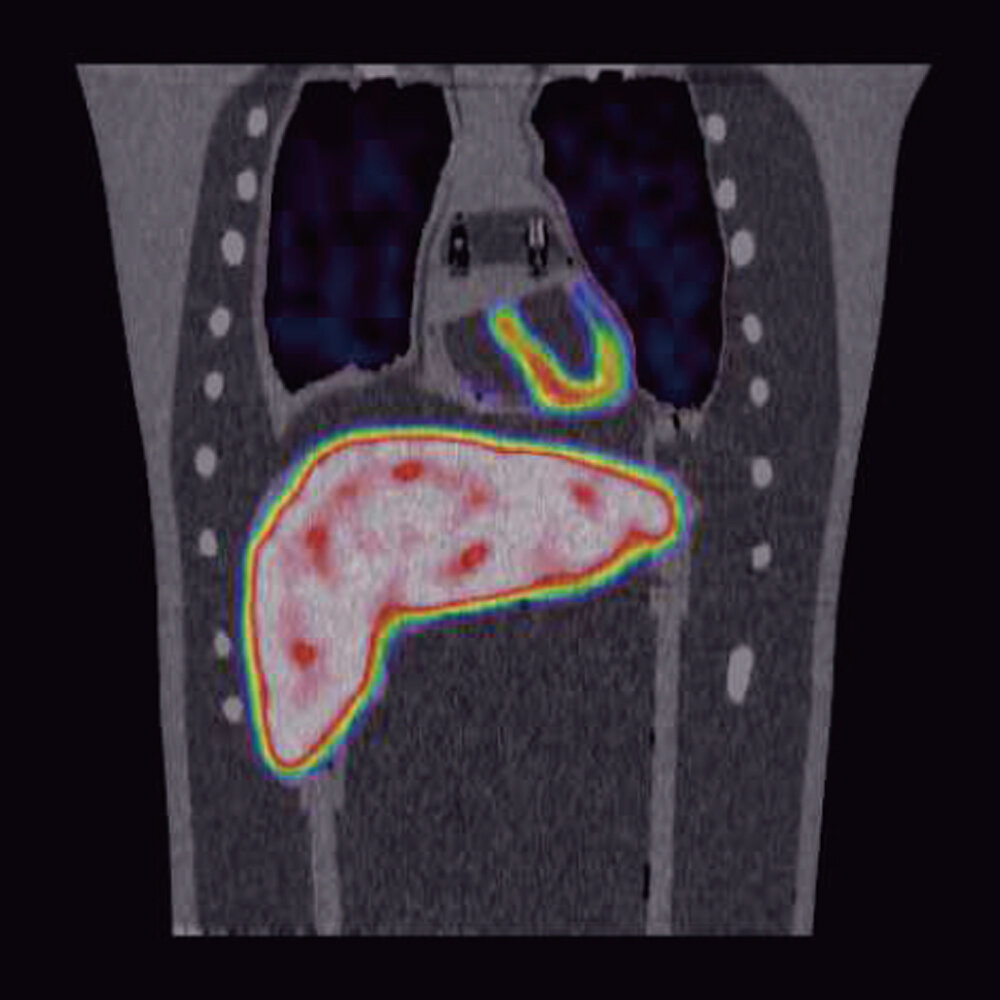

- Simulated tumors can be inserted into the lungs, liver and breasts
- Tumor spheres can be filled with FDG or RI solution to evaluate density, size and placement
- PET/SPECT
- Quality management of nuclear medicine equipment
- Myocardial density with SPECT imaging
- RI solution density for tumor imaging
- Liver
- Right and left lungs
- Right and left kidneys
- Hot spots for the liver, lungs and breasts
- Anatomical-type heart: right ventricle, left ventricle and myocardium
- Geometric-type heart: left ventricle and myocardium
- 1 Thorax body
- 2 Lungs (left and right)
- 4 Hearts
- 1 Liver
- 2 Kidneys
- 1 Rib cage and spine
- 2 Breasts
- 3 Hot spots
- 1 Base
- Plastic pins
- 6 Supporting bars
- 4 Flat bar rings for the base
- 5 Tubes
- 1 Syringe
- Nuts and bolts
- 1 Water tank
- Instruction manual
Model: PH-63A
Product Code: 41927-100
Size: Approx. W44 x D29 x H71 cm
Weight: Approx. 21 kg (phantom); 40 kg when filled with water
Materials:
- Soft tissue: transparent polyurethane
- Lungs: material with density 0.4 g/cm3
- Bone: calcium-infused material designed to provide appropriate attenuation with RI solutions
- Bone: 370 HU
- Lung: -900 HU
- Organ shell material: 100 HU, density 1.16 g/cm3
