Whole Body Phantom Kyoto Kagaku PBU-50
Use for X-Ray training, disarticulates into 10 phantoms
Available in Semi-Transparent and Opaque

Name: Whole Body Phantom Kyoto Kagaku PBU-50
Brand: Kyoto Kagaku

Improved Knee Design

PBU-50 Opaque

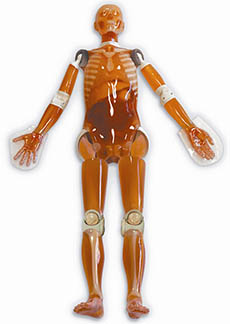

The Whole body phantom PBU-50 is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in Kyoto Kagaku original soft tissue substitute. Movable joints allow basic positioning for plain X-ray and training/research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk). There are no metal parts or liquid structures. Available in Semi-Transparent.

Features

Patient positioning:

Right shoulder rotates sideways, abducting to a horizontal position. Left shoulder rotates forward, up to a horizontal position. Elbows bend inward to approx. 90 degrees. Hip joints rotate forward up to 90 degrees, then rotate outward up to 45 degrees, respectively.
Knees bend to approx. 90 degrees.

The phantom can be held in the supine frog leg position
The limbs and head are detachable at joints and neck for wider applications.
The head supporter facilitates various head positions.

Anatomy:

Life-size synthetic skeleton
Hands and feet with bone trabeculae
Lungs with pulmonary vessels
Mediastinal space
Liver
Kidneys

Original phantom materials:

Radiological absorption approximates that of the human body.

Materials and features:

Soft tissue and organs: Approximates a mix of adipose and muscles. Urethane base resin (SZ-50)
Synthetic bones: Epoxy base resin
Joint attachments: Epoxy, urethane with carbon fiber
Screws: Polycarbonate

Prolong the life of your PBU

Download the PBU-50 Instruction Manual (PDF)

Soft tissue (SZ-50) material

Material	Density g/cm³	Effective Atomic Number	Electron Density x10~23e/g	Elemental Composition (wt%)
Material	Density g/cm³	Effective Atomic Number	Electron Density x10~23e/g	H	C	N	O
Water	1.000	7.417	3.343	11.19			88.81
SZ-50	1.061	6.14	3.258	8.41	72.25	4.61	14.73

Radiographic Techniques for PBU-50

Region		Voltage	Current	Time	Distance
Front of Chest	High Voltage	120kv	100mA	0.022s	200cm	P(-)
Front of Chest	Low Voltage	70kv	100mA	0.140s	200cm	Lith(+)
Side of Chest	High Voltage	120kv	200mA	0.040s	200cm	P(-)
Front of Abdomen		75kv	320mA	0.125s	150cm
Front of Head		75kv	320mA	0.071s	120cm
Side of Head		75kv	320mA	0.071s	120cm
Front of Brachium		55kv	160mA	0.063s	120cm
Front of Antebrachium		50kv	100mA	0.036s	120cm
Front of Femur		60kv	200mA	0.071s	120cm
Front of Crus		55kv	160mA	0.071s	120cm
Kneecap		55kv	160mA	0.040s	120cm
Hand		48kv	100mA	0.045s	120cm

Specifications

Set includes:

1 whole body phantom PBU-50 (separable into 10 parts) Synthetic bones,
pulmonary vessels, mediastinal space, liver, kidneys are embedded
1 head supporter
1 set of replacement joint connectors and screws
(1 piece for each)
1 flat head screwdriver
1 set of sample X-ray films

Phantom size: approx. 165 cm height, 65 inches
Phantom weight: approx. 50 kg, 110 lbs
Width of chest at thickest spot: 24 cm, 9.5 in
Width of chest at thickest spot + arms: 49 cm, 19 in
Thickness of chest front to back: 19 cm, 7.5 in
Packing size: approx. 85 x 60 x 44 cm
Packing weight: approx. 80 kg, 177 lbs
Storage Temperature Range: 20-25°C (68-77°F)
Avoid Storing in Direct Sunlight or High Humidity

Click For More X-Ray Images

PBU-50 Components
PH-2B -4R	Whole Body Phantom Forearm-hand Right
PH-2B -4L	Whole Body Phantom Forearm-hand Left
PH-2B -3R	Whole Body Phantom Arm Right
PH-2B -3L	Whole Body Phantom Arm Left
PH-2B -5R	Whole Body Phantom Thigh Right
PH-2B -5L	Whole Body Phantom Thigh Left
PH-2B -6R	Whole Body Phantom Leg/Foot Right
PH-2B -6L	Whole Body Phantom Leg/Foot Left
PH-2 -2	Whole Body Phantom PBU-50 Trunk
PH-2 -1	Whole Body Phantom PBU-50 Head & Stand
Optional Accessories
41363-070	PH-2 Storage Case (Optional Accessory) Comes with handles and castors for easy movement. Set includes: 2 storage cases (a pair). Size (approx.): W60 x D39 x H102 cm / W23.6 x D15 x H40 in W60 x D31 x H102 cm / W23.6 x D12 x H40 in Weight (approx.): 11.5 kg / 25 lb (for parts) 9.5 kg / 21 lb (for body)
41350-200-16	PH-2B Body Plates - BMI 32 (Optional Accessory) Body plates that simulate a patient with a BMI of 32 for studying the effect of patient size on radiation dose and image quality. Set includes: 1 front body plate, 1 back body plate and 2 belts Plate size (approx.): Front: W67 x D37 x H26 cm Back: W66 x D36 x H12 cm Packing size (approx.): W77 x D48 x H40 cm x 2 boxes / W30.3 x D18.9 x H15.7 in. x 2 boxes Packing weight (approx.): 21 kg / 46.3 lb Material: Urethane-based resin, density 1.06 Download the PH-2B Body Plates Catalog (PDF)
41350-200-17	PH-2B Body Plates - BMI 40 (Optional Accessory) Body plates that simulate a patient with a BMI of 40 for studying the effect of patient size on radiation dose and image quality. Set includes: 1 front body plate, 1 back body plate and 2 belts Plate size (approx.): Front: W67 x D43 x H27 cm Back: W67 x D36 x H11 cm Packing size (approx.): W77 x D48 x H40 cm x 2 boxes / W30.3 x D18.9 x H15.7 in. x 2 boxes Packing weight (approx.): 34.5 kg / 76 lb Material: Urethane-based resin, density 1.06 Download the PH-2B Body Plates Catalog (PDF)
41350-000-11	Fractured Hand/Forearm Phantom Set includes: 1 fractured hand/forearm phantom Packing size (approx.): W47 x D35 x H24cm / W18.5 x D13.8 x H9.4inch Materials: Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31)
